+86 14769960951Belt Dryer Machine
Drying results : Moisture content 2–10%
Drier Area : 30–124 m²

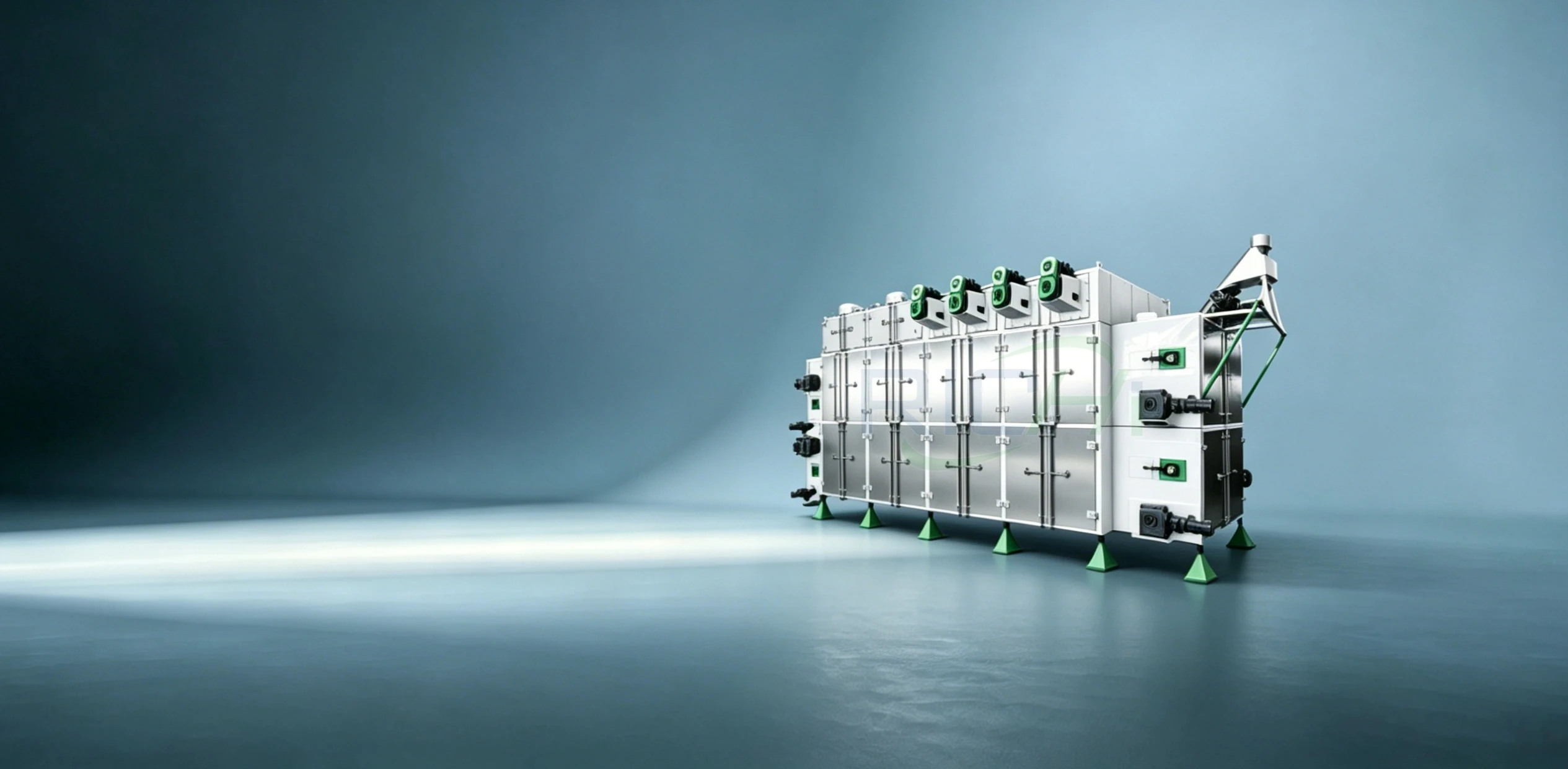

What is the Belt Dryer Machine?
As a highly efficient drying machine, it utilizes a hot air circulation system. This method effectively reduces material moisture content while preventing the occurrence of a “wet core.” Compared to other dryers, this equipment is more energy-efficient and productive.
High-Efficiency Drying Performance
Traditional unidirectional hot air circulation often leads to uneven drying. Our multi-layer belt dryer employs 360° hot air convection circulation in multiple directions. This ensures more uniform drying throughout the material, with a moisture error rate of less than 2%.
Compared to the tumbling drying method of rotary dryer machine, this equipment offers a gentler drying process. The material is evenly spread across the mesh belt, and moisture is reduced as the belt moves and hot air circulates. Therefore, this equipment is better suited for fragile materials such as feed, dried meat, dried vegetables, and dried fruits.

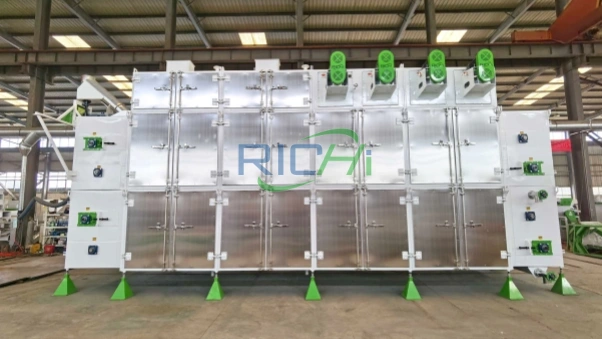

The video on the right shows the equipment in actual operation. It performs exceptionally well in various drying tasks and offers a high return on investment. We provide a variety of parameter configurations and customized solutions.
Type of Dried Products

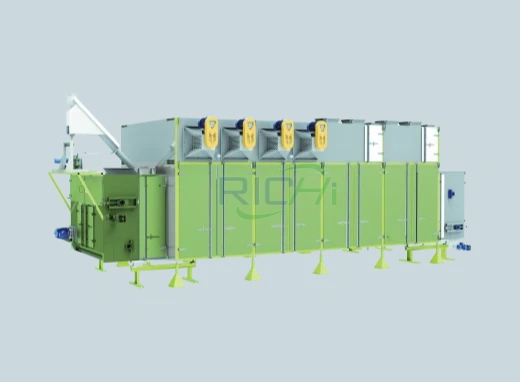

This industrial belt dryer is capable of drying a wide variety of animal feed, with extensive applications in the production of aquaculture feed. In addition, its gentle and efficient drying process makes it suitable for the food processing industry, where it is used in the production of dried fruits, vegetables, and meat products. Similarly, it can efficiently dry biomass materials. We also offer rotary dryer machine to help you dry your biomass materials.
Feed pellets
dried fruits
dried vegetables
dried meats
biomass materials
Mesh Belt Dryer Parameter Selection
We have designed this belt dryer machine with a variety of parameter configurations and production capacity options. Below are some of the basic models. In addition to these, we can also provide customized parameters. As RICHI’s technology continues to advance, we will offer even more parameter options. Please feel free to contact us for a customized solution and quote.
| Model | WDHG150-4/2 | WDHG200-4/2 | WDHG200/4-4 | WDHG220/6-4 | DHG-400 | DHG-500 | DHG-1000 | DHG-2000 | QHG-500 | QHG-1000 | QHG-2000 |
| Power (kW) | 44.3 | 49.80 | 61.65 | 71.80 | 40+0.55*4+0.55 | 50+2.2*2+0.75 | 70+2.2*3+1.5 | 132+2.2*3+1.5 | 2.2*2+0.75 | 2.2*3+1.5 | 2.2*3+1.5 |
| Number of Belt Layers | 2 | 2 | 4 | 4 | 5 | ||||||
| Belt Width (m) | 1.5 | 2 | 2 | 2.2 | 0.8 | 1.0 | 1.2 | 1.6 | 1.0 | 1.2 | 1.6 |
| Drying Area (㎡) | 30 | 40 | 80 | 124 | 13 | 21 | 43 | 58 | 21 | 43 | 58 |
Structural Advantages
This belt dryer machine has been scientifically designed and optimized, resulting in a drying efficiency increase of over 25%. It automatically controls hot air temperature. You can adjust drying time, humidity, and exhaust air circulation volume based on the raw material characteristics to ensure optimal performance.
dryer Chamber
The entire chamber is constructed of 304 stainless steel, which is heat-resistant and corrosion-resistant, preventing contamination of the raw materials.
Feed Hopper
The feed inlet is equipped with a dedicated motor. Its extended design and heat-resistant materials help ensure product quality and structural integrity.

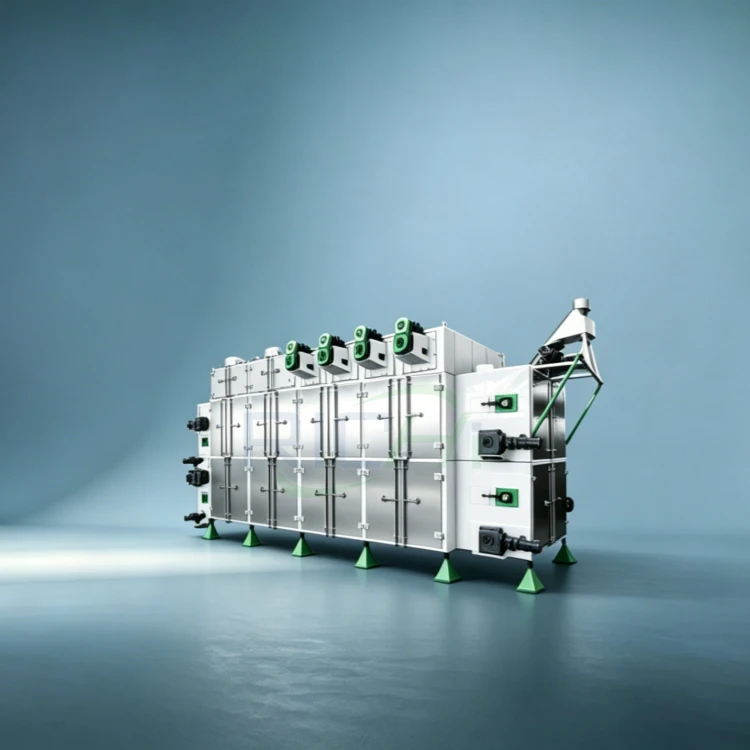

dryer machine belt
The multi-layer conveyor belt design increases unit production capacity. All dryer belts are made of imported PET woven mesh, providing superior ventilation efficiency.
Circulation Fan
This device promptly exhausts moist air from inside the dryer and replenishes it with dry air, thereby reducing internal humidity and facilitating air circulation.
Global Projects
This dryer belt machine has been in service at numerous feed plants and food processing facilities worldwide. As a supplier of pelletizing equipment, we offer complete pellet production systems. Each project is tailored to specific production goals and on-site conditions to ensure an optimal production experience.

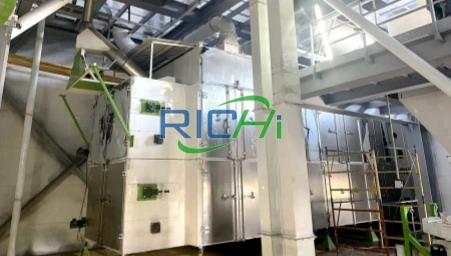

3-4 T/H Continuous Belt Dryer machine for Sale in Thailand
Our Thai client operates a dried fruit processing plant, with products intended for export. This dryer uses a gentle drying process to reduce the fruit’s moisture content to 15%-18%. It also prevents the caramelization of the fruit’s sugars, preserving its natural flavor and texture.

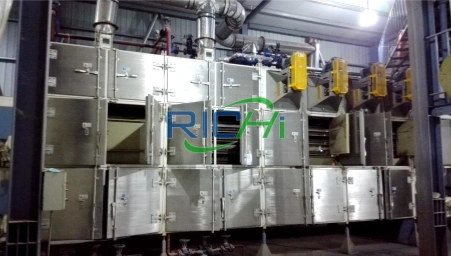

5-6 T/H Belt Dryer Machine for Sale in Iraq
The client for this project is a fish feed factory producing high-quality floating fish feed. We supplied them with a fish feed production line, a floating fish feed extruder machine, a dryer, and other equipment. The feed products they produce meet high-standard sales requirements.

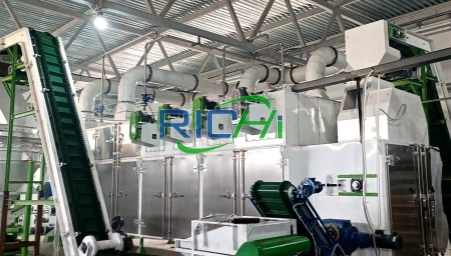

5-6 T/H mesh Belt Dryer for Sale in Russia
This project involves production equipment for floating fish feed, designed to meet the growth requirements of fish such as salmon and trout. We provided the client with a twin screw extrusion machine and a drying system. The resulting feed products exhibit superior water resistance.

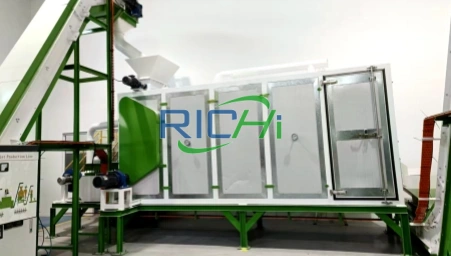

1.5-2 T/H Industrial Belt Dryer for Sale in Brazil
For this project, we provided the client with belt dryers for biomass for pellet fuel production. The project also included a sugarcane bagasse pellet machine and other production line equipment. This system consistently produces high-quality fuel pellets.

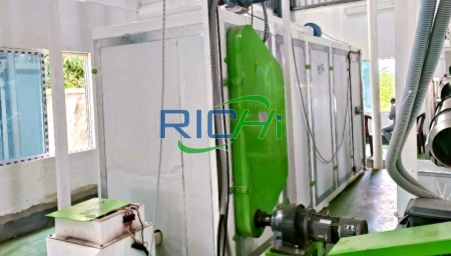

0.5–0.6 T/H Multi-Layer Belt Dryer for Sale in Bangladesh
This project for a client in Bangladesh was a customized solution for an integrated feed plant. The dryer is primarily used to process aquaculture feed, ensuring the structural integrity of the feed pellets. There also includes a twin screw fish feed extruder and a shrimp feed pellet machine.

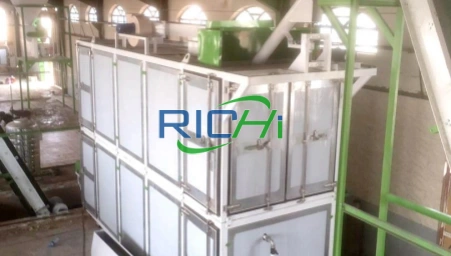

2-3 T/H Mesh Belt Dryer for Sale in Iran
The customer produces aquatic feed and high-quality animal feed and requires a highly efficient, energy-saving drying system. This equipment gently reduces the moisture content of feed pellets to approximately 10%, improving feed structural stability and extending shelf life.
RICHI MACHINERY
why choose us?
RICHI MACHINERY is a leading global manufacturer specializing in feed pellet machine, extruders, wood pellet machine, and biomass pellet equipment. With over 30 years of manufacturing expertise and project experience across more than 140 countries and regions, we offer complete equipment sets, engineering design, installation, and turnkey project services to customers worldwide.
Customized Equipment Solution
Tailor-made pelletizing equipment based on raw materials, capacity, formulation, and project goals.
Complete Turnkey Project
Full-process solutions covering plant layout, installation, commissioning, training, and after-sales service.
Full Line & Full Process Supply
One-stop equipment supply from crushing, mixing, drying, pelletizing, cooling, screening to automatic packaging systems.
Global Technical Support
RICHI’s experienced engineers ensure fast installation and long-term stable production.
Frequently Asked Questions
We offer free consultation services to our customers, including equipment selection, suitable raw materials, equipment maintenance, and more. The dryer price will be determined based on your production capacity, equipment configuration, and other factors. If you have any questions, please feel free to contact us at any time.
–
What types of materials can this Belt Dryer dry?
This unit’s continuous low-temperature drying process makes it suitable for a wide range of raw materials. Compared to other drying methods, this dryer offers superior protection for fibrous materials. As a result, it is widely used for drying feed and food products such as aquaculture feed, beet pulp, and alfalfa.
It can also process a variety of biomass materials, such as wood chips, wood strips, rice husks, and agricultural and forestry waste like straw. Additionally, it is suitable for dewatering organic fertilizers, sludge, and other materials. We offer customized solutions to meet your diverse drying needs.
–
What are the heat source options for belt dryers?
As an industrial belt dryer, it offers a variety of heat source options. Its heating methods include both electric heating and steam heating. In the feed and food processing industries, steam heating systems are commonly used, as they are more effective in ensuring product quality. In this case, you can use a steam boiler to supply the heat source.
For drying biomass materials, the system can be equipped with a biomass hot air furnace or a biomass burner. This reduces operating costs and ensures efficient drying results.
–
What is the difference between a belt dryer machine and a drum dryer?
They differ in structural design and drying methods. The mesh belt dryer features a box-type design with multiple layers of mesh belts installed inside. The material is spread evenly on the mesh belts and dried through belt conveyance and multi-directional circulation of steam and hot air. This gentle drying method is suitable for fragile and high-value materials.
The drum dryer features a multi-layer drum design with multiple baffles inside. As the drum rotates, the material is lifted by the baffles, enabling efficient drying under hot air. This method is suitable for lightweight biomass materials such as wood chips, straw, and grass powder.
–
Is maintenance for this Belt Dryer Machine complicated?
All our equipment is designed with user-friendly, simple operation in mind, making maintenance relatively straightforward. It features a modular design that helps you perform maintenance quickly and thoroughly, minimizing downtime.
You will need to regularly clean out internal material residue and inspect key components for wear and operational condition. Examples include the mesh belt, fan, motor, dust collection system, and more. We provide a global spare parts network to support your long-term, stable production.
