Capacity: 0.2–40 T/H

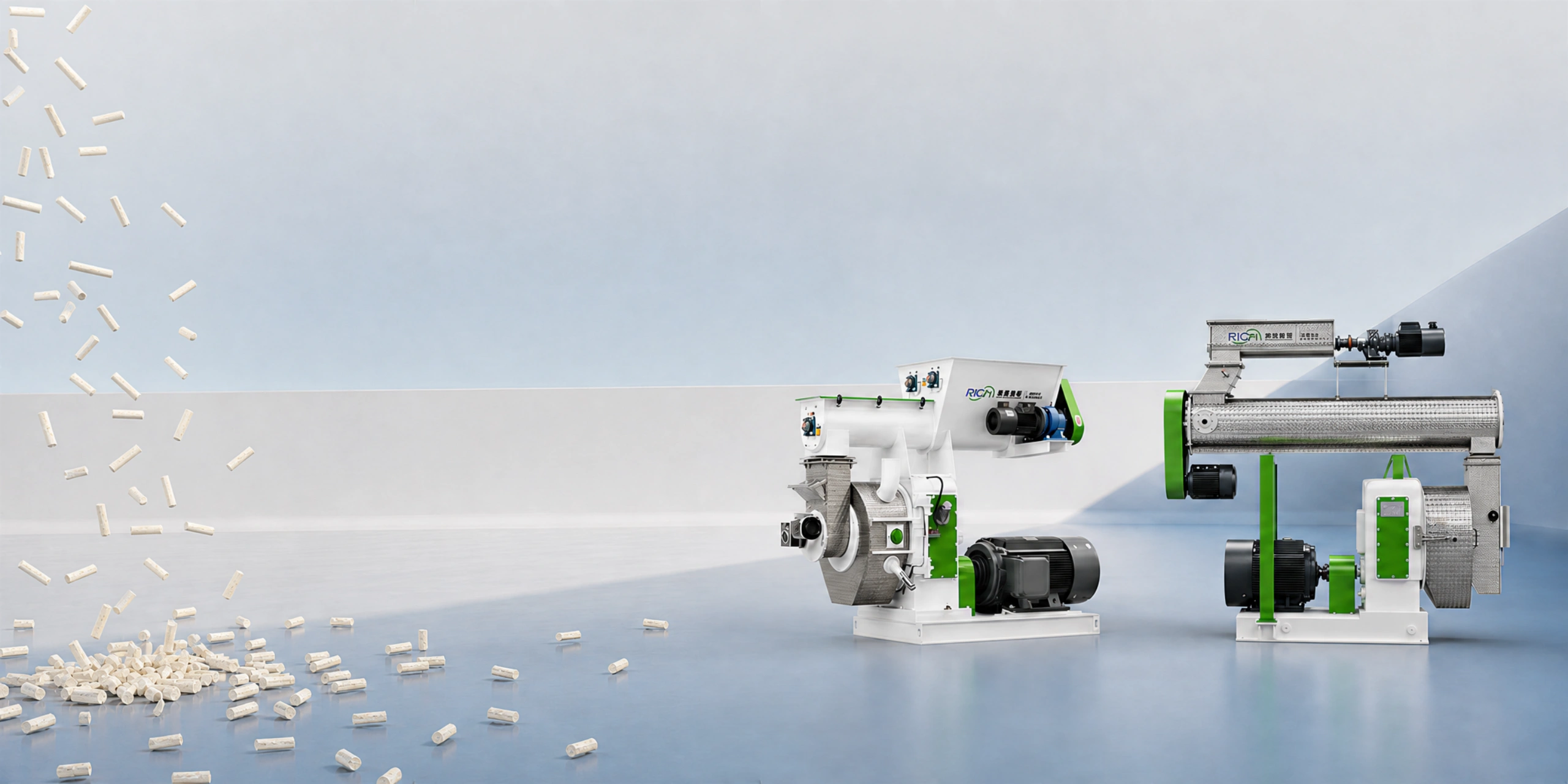

Cat Litter Pellet Machine
The cat litter pellet machine comes in two models, designed for the production of cat litter from different raw materials. They can pelletize raw materials such as soybean residue, bentonite, wood shavings, straw, rice husks, and waste paper. Product types include single-ingredient cat litter and blended cat litter. By replacing the ring dies with different pore sizes, these machines can produce pellets ranging in diameter from 2 to 12 mm.
We offer customized equipment and complete cat litter production solutions, catering to the needs of both small-scale investments to large-scale cat litter processing plants.
What are your raw materials?

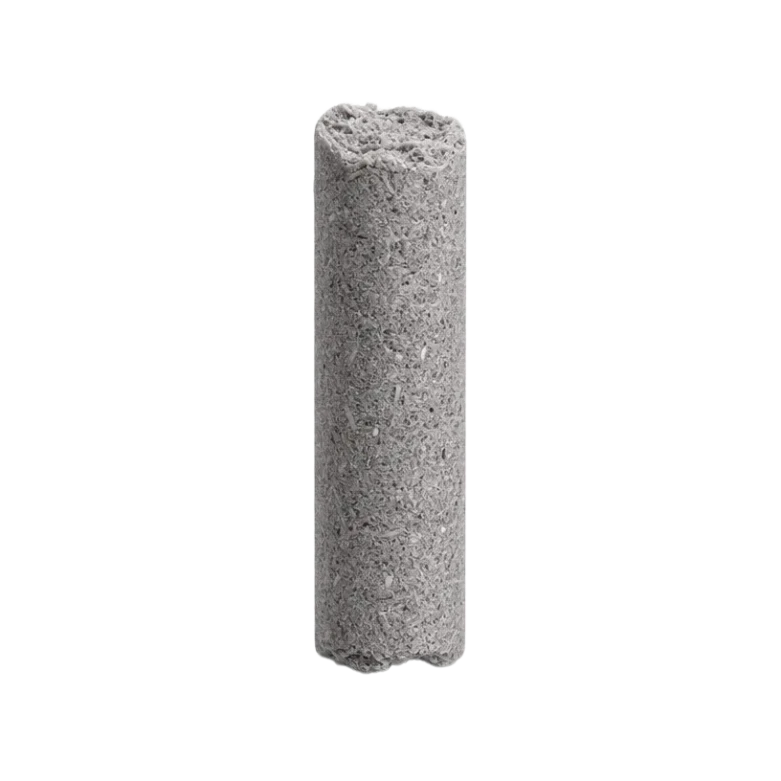

Mineral-Based Cat Litter
This cat litter making machine features a wear-resistant pelletizing system that can accommodate the hardness of minerals. The mineral pellets it produces are highly dense and have excellent water absorption. Bentonite cat litter, in particular, exhibits strong clumping ability. We can adjust the equipment configuration and pelletizing parameters to suit your raw materials.

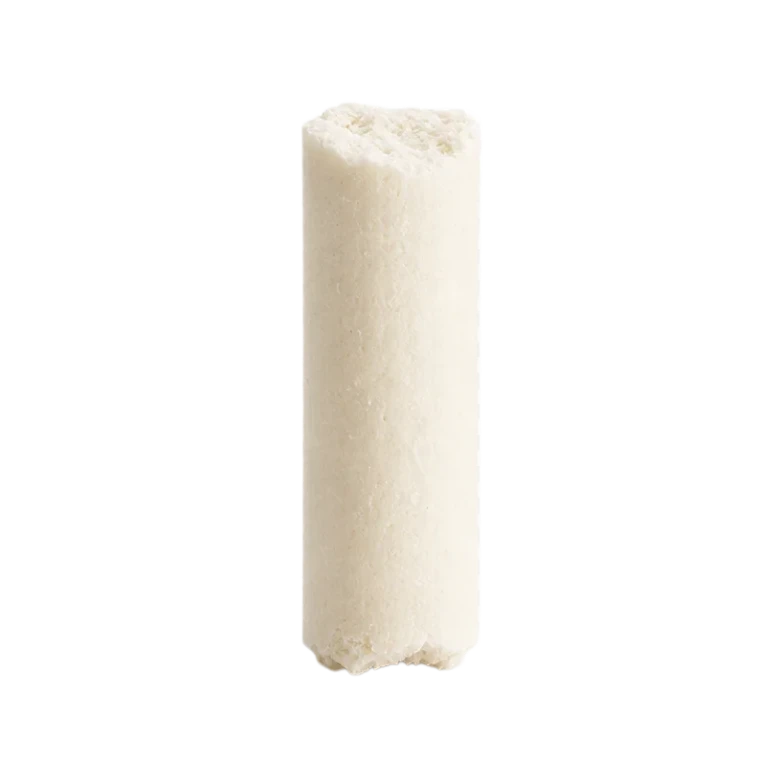

Tofu Cat Litter
The pellets produced by tofu cat litter pellet machine is an eco-friendly product, featuring low dust levels and excellent clumping properties. It is lighter than mineral-based cat litter and more convenient to use. Even when using blended raw materials, the equipment consistently delivers reliable results.

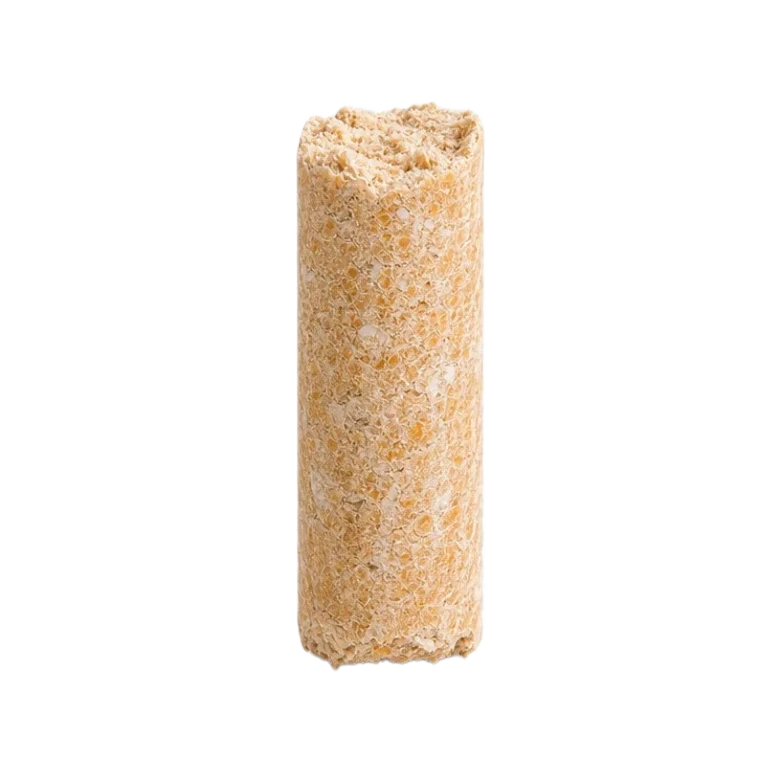

Wood Cat Litter
The wood cat litter pelletizer allows for flexible control over the size of cat litter pellets. The cat litter it produces is compact and highly absorbent. We offer various production capacity configurations suitable for wood processing plants, cat litter processing plants, and similar facilities. By setting up a complete cat litter production line, you can reduce pellet dust and enhance the user experience.
Plant-Based Cat Litter
Our cat litter pellet machine is highly adaptable and can pelletize plant-based fiber materials of varying textures and hardness. The dual-roll design and innovative ring die enhance pellet formation. The cassava cat litter, walnut shell cat litter, and other products produced by this machine exhibit excellent clumping performance. Cat litter made from multiple formulations performs consistently well.

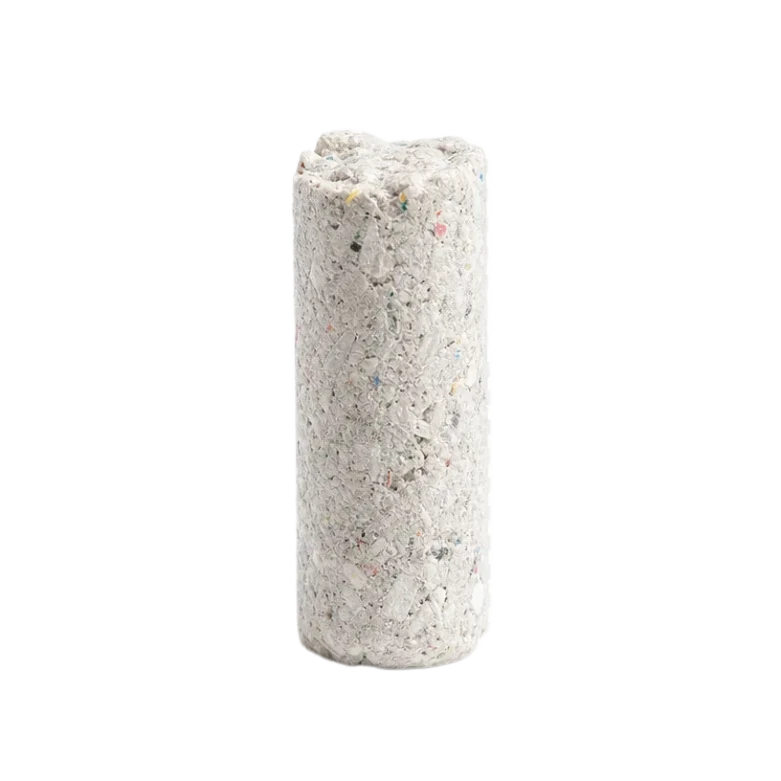

Paper Cat Litter
The cat litter granulator adjusts pelletizing parameters and configurations based on the waste paper material. The equipment features a powerful conditioning and extrusion system that significantly improves pellet formation. It consistently produces uniform paper pellet cat litter ranging from 2 to 12 mm in size. A screener can be configured to remove dust from the cat litter.
Types of Cat Litter Pelletizers
Wood Cat Litter Pellet machine
Capacity: 0.2–4.0 T/H
Pellet Diameter: 4–12 mm (customizable)
Parameter Selection
Customizable Models
- MZLH320: 0.2-0.3T/H 22kw
- MZLH350: 0.3-0.5T/H 37kw
- MZLH420: 1.0-1.2T/H 90kw
- MZLH520: 1.5-2.0T/H 132kw
- MZLH678: 2.5-3.0T/H 185kw
- MZLH768: 3.0-4.0T/H 250kw
Cat Litter Pellet machine
Capacity: 1.0-40.0 T/H
Pellet Diameter: 2–12 mm (customizable)
Parameter Selection
Customizable Models
- MZLH250: 1.0-1.5T/H 22kw
- MZLH320: 3.0-4.0T/H 37kw
- MZLH350: 5.0-6.0T/H 55kw
- MZLH420: 10-20T/H 110kw
- MZLH508: 15-16T/H 160kw
- MZLH558: 20-22T/H 185kw
- MZLH678: 30-33T/H 250kw
- MZLH768: 38-40T/H 315kw

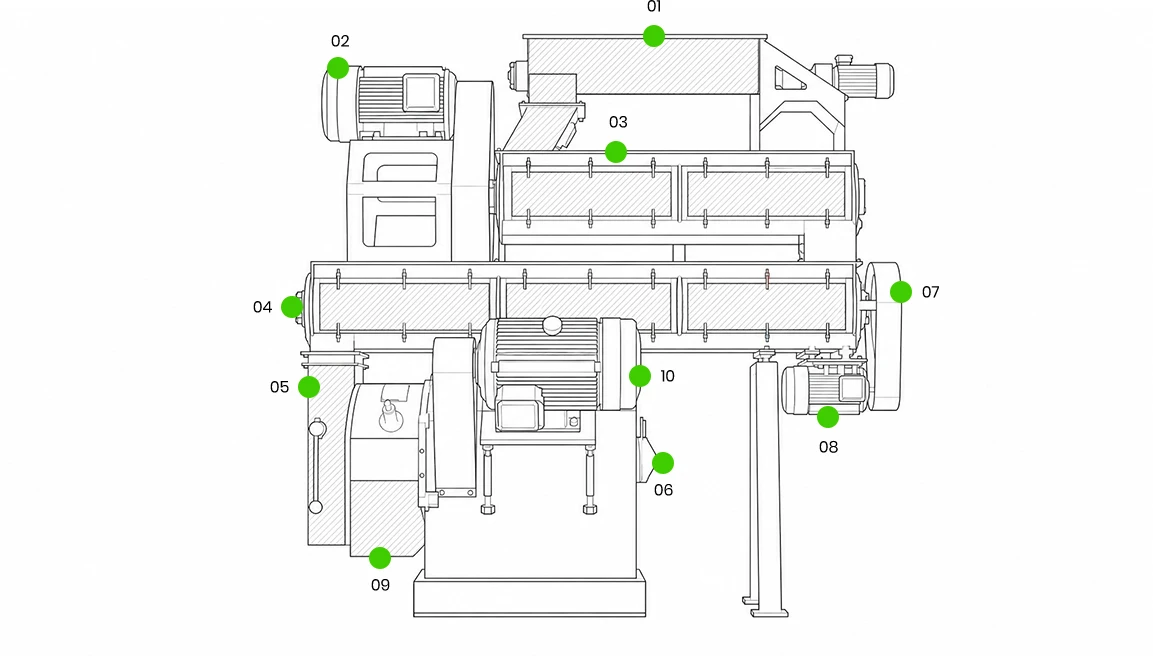

Structural Design
The RICHI cat litter pellet machine features an innovative structural design and is easy to operate. The following outlines the main structural components of them. All models are equipped with a durable ring die and roller system that is hard and wear-resistant, ensuring efficient extrusion and molding. For materials such as bentonite, we offer a dual-layer conditioner configuration.
- 01Feed Inlet
- 02Conditioner Motor
- 03Conditioner
- 04Conditioner Bearing Housing
- 05Inspection Port
- 06Overload Protection Device
- 07Conditioner Drive Guard
- 08Conditioner Drive Motor
- 09Discharge Outlet
- 10Main Motor
You can click the button on the right to see how it performs in an actual production line. This is a 3–5 T/H tofu cat litter production line for sale to Malaysia.
Main Components of the Equipment

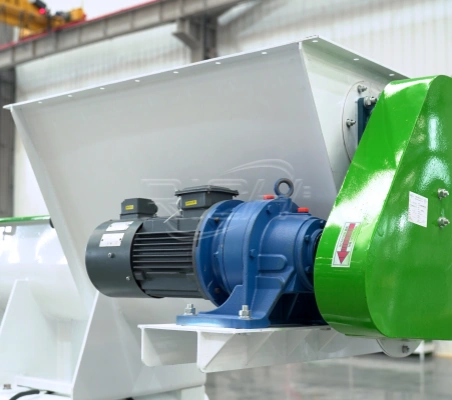

Variable-Frequency
Feeding Inlet
Cat litter raw materials typically contain lightweight fibers. To prevent clogging of the feeding inlet, this equipment uses a variable-frequency feeder. It is equipped with a variable-frequency motor that automatically adjusts the feeding rate to ensure smooth feeding.

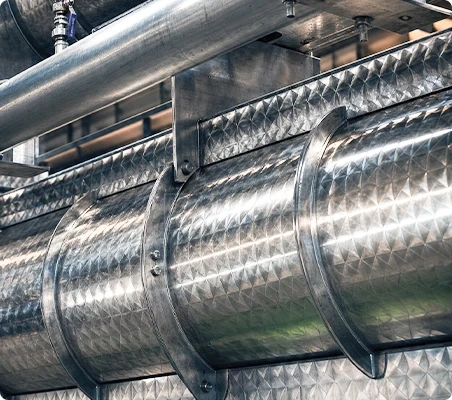

Raw Material
Conditioner
The cat litter pellet machine is equipped with a 304L stainless steel conditioner. It is wear-resistant and heat-resistant, enabling more effective conditioning of the cat litter raw materials. High-temperature conditioning enhances the material’s viscosity, improving pellet formation.

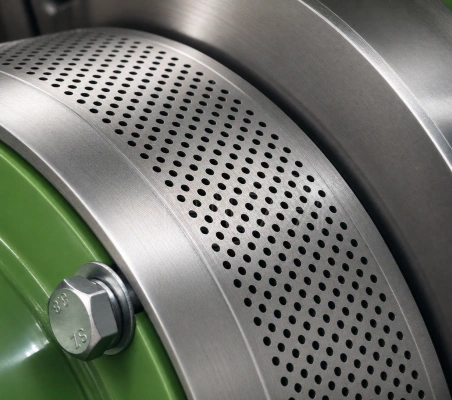

Innovative
Ring Die
The innovative ring die is made of high-hardness alloy steel or stainless steel, making it suitable for cat litter raw materials of various hardness levels. Its scientifically arranged hole pattern ensures high output per unit. The clamp-type design allows for easy disassembly.

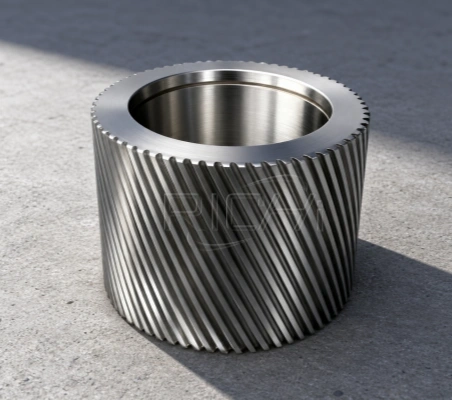

Pressure Roller
System
The cat litter pellet making machine, equipped with a dual-pressure roller configuration, delivers more powerful compression. This system ensures a denser pellet structure and a higher formation rate. The rollers are also made of wear-resistant alloy steel.

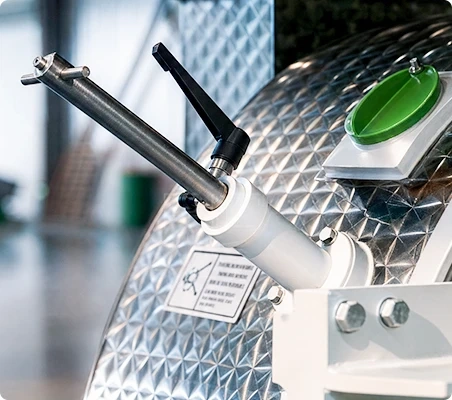

Cutter Adjustment
Device
This device is located on the inside of the hopper door, close to the ring die. Using the adjustment handle on the outside, you can flexibly control the distance between the cutting blade and the ring die, thereby cutting cat litter pellets to the ideal length.
Global Cases
We provide production solutions for cat litter manufacturers worldwide. These include single-unit cat litter pellet machine, customized solution, and complete cat litter production systems. Our cat litter pellet maker is adaptable to a wide range of raw materials and formulations, including the development of new products and the production of custom cat litter. Please contact us anytime to receive your customized production solution.

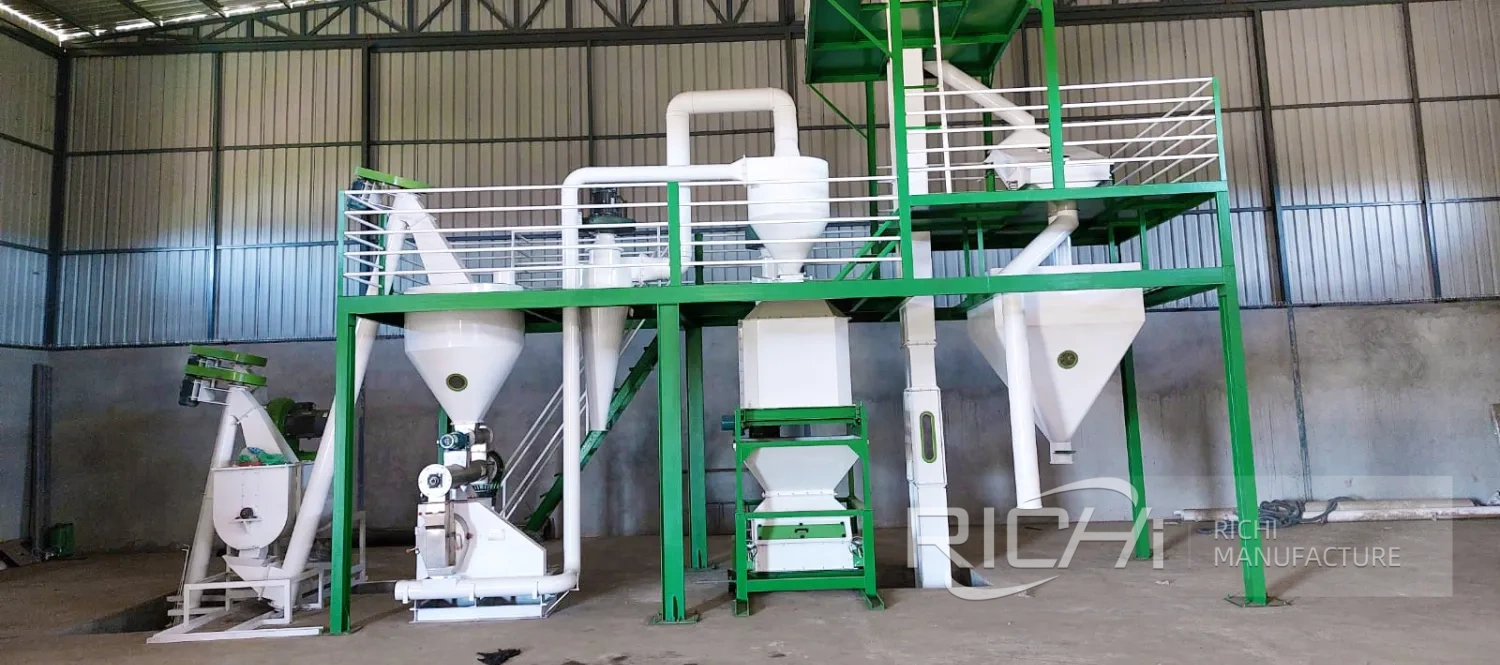

1-2 T/H Cat Litter Pellet Machine for Sale To Thailand
This project primarily produces tofu cat litter with a diameter of 2–4 mm. We provided the customer with a complete set of cat litter production equipment, including a crusher, mixer, pelletizer, and cooler. In subsequent production, the customer also used raw materials such as cornstarch and cassava to develop other cat litter products.
Thailand

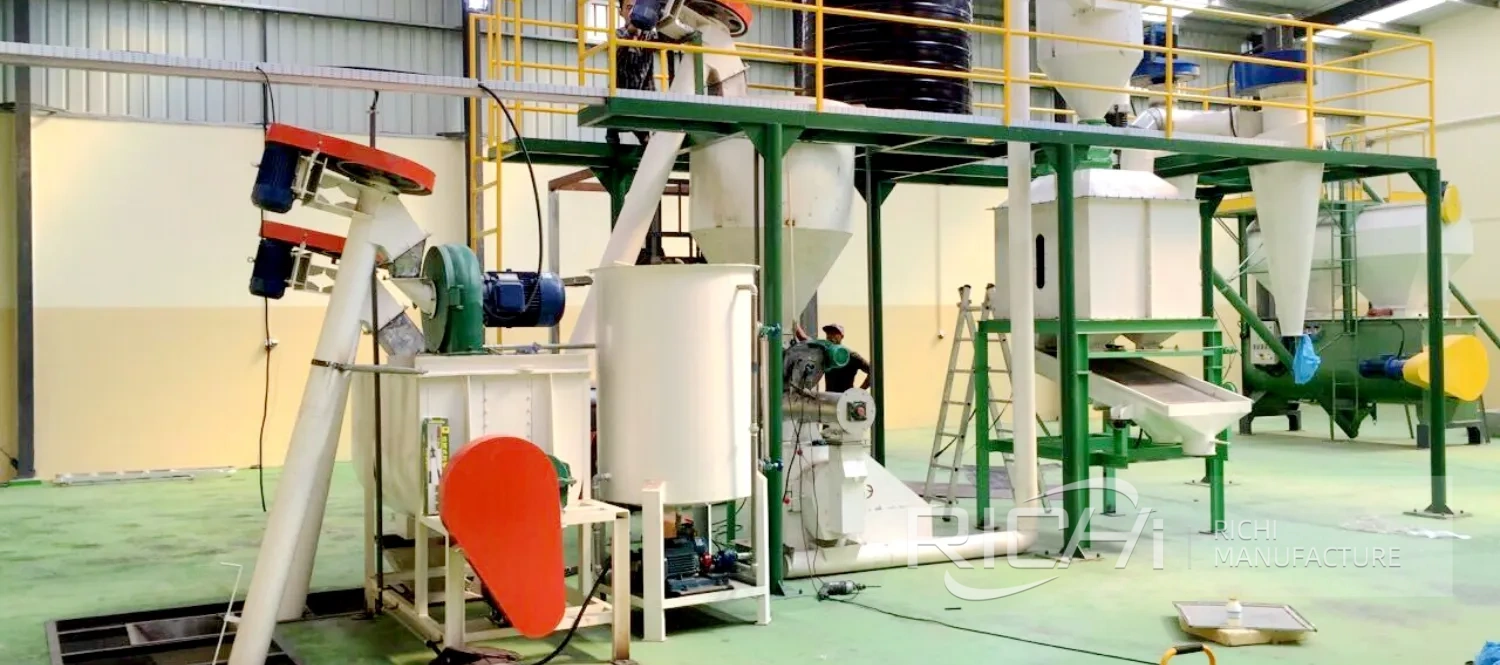

2-3 T/H cat litter making machine for Sale to Indonesia
The customer produces strip-shaped tofu cat litter with a diameter of approximately 1.5-4 mm. The product is primarily used for export and in the pet supplies market. This project features a complete setup that not only produces standard cat litter, but also allows for the development of deodorizing cat litter in various scents.
Indonesia

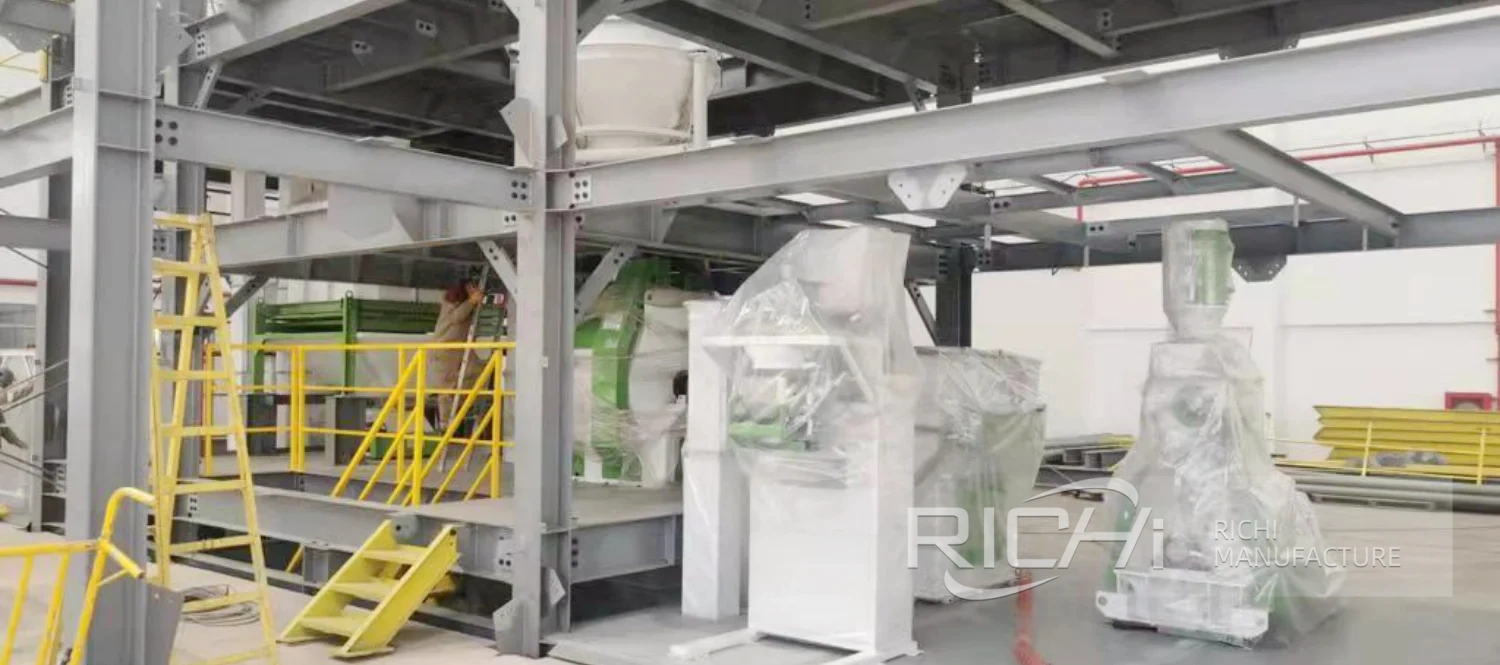

5-6 T/H Tofu cat litter pellet mill for Sale to France
We provided a production line solution for a large cat litter manufacturer. This system can produce customized cat litter products with a diameter of 2–4 mm. It features a high level of automation. Even when switching between different formulations, it can consistently produce the required products to specific specifications.
France
Capacity
1-2T/H
Raw materials
Soybean pulp, corn, cassava
Capacity
2-3T/H
Raw materials
Soybean residue, corn starch, wheat flour
Capacity
5-6T/H
Raw materials
Soy Fiber, Starch, Binder
Project Video
Please click on the right to watch videos of the cat litter production equipment during trial runs and actual production.

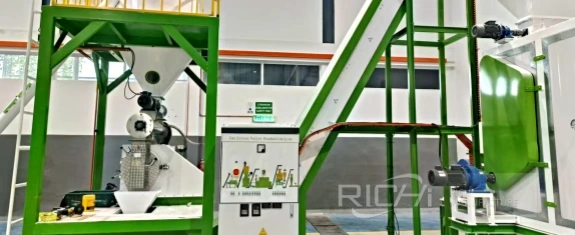

3-4T/H tofu Cat Litter Pellet Mill for Sale Malaysia

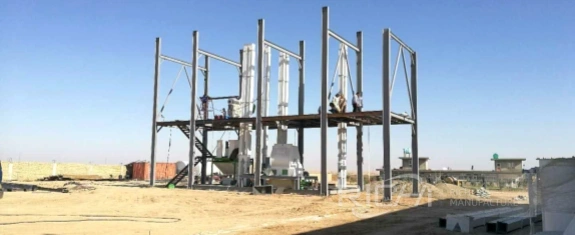

10T/H Bentonite Cat Litter Pellet Maker for Sale USA
Customer reviews
★★★★★
We used to sell our pine sawdust as low-value waste. This cat litter pellet machine helps us process it into a more valuable wood pellet cat litter product. What’s more convenient is that the machine is fully compatible with our raw materials and requires no additional adjustments. We’re very satisfied with this purchase.
Sweden
★★★★★
At first, we were concerned about whether waste paper could be used to produce high-quality, low-dust cat litter. After using the cat litter making machine for some time, its performance has been excellent. Customer feedback on our recycled paper pellets cat litter has been very positive.
Germany
★★★★★
We wanted to process coffee grounds into valuable products rather than simply disposing of them. RICHI provided us with very convenient cat litter production equipment. It allows us to control the production process effectively, and the coconut cat litter produced far exceeded our expectations.
Colombia
★★★★★
We started out producing only pure tofu cat litter, and the results were excellent. Later, we improved the formula and used this system to develop tofu cat litter in various scents, as well as cat litter blended with other plant-based materials. This has increased our sales. After testing, the clumping performance was excellent.
Philippines
cat litter Production line solution
This solution features low investment costs and greater flexibility in configuration, making it ideal for new cat litter plants, as well as investors looking to process cat litter products using existing raw materials.
The cat litter manufacturing process includes crushing, mixing, pelletizing, drying, cooling, screening, and packaging. It can produce a wide variety of common cat litter types. We also support customized formulations and pellet specifications. If your raw materials have already been crushed and dried, you can reduce investment in the upstream processing stages. The solution allows for future upgrades, helping to avoid wasted investment.
This solution typically includes automated equipment to ensure stable commercial-scale production. It is suitable for small-to-medium cat litter producers, pet product manufacturers, and others.
To meet commercial demands, this solution can incorporate a more comprehensive production process, such as a fragrance spraying system, which facilitates the production of custom-scented cat litter products. For production line solutions, we provide on-site installation and commissioning, operator training, production line trial runs, spare parts supply, and long-term technical support.
This solution offers higher continuous capacity, capable of meeting your bulk order needs. It is suitable for cat litter factories of a certain scale, regional cat litter suppliers, exporters, and others.
Equipped with a PLC control system, this production line enables fully automated production throughout the entire process. Customization options include the combined operation of multiple crushers or cat litter pellet machines, as well as unique production line layout designs. We also offer turnkey solutions for cat litter pelletizing plants to meet your needs for rapid production startup.
As a large-scale industrial cat litter pelletizing solution, it is suitable for manufacturers with stable sales channels and export needs, as well as large-scale bentonite or biomass processing enterprises.
This solution offers a more diverse product range, including cat litter pellets of various specifications, textures, densities, and applications. We provide customized solutions, turnkey plant layout design, dust collection system design, and more. For comprehensive product needs, we can customize multiple production lines operating in parallel to achieve continuous and efficient production.
This solution typically includes a comprehensive plant-wide operational plan. It requires multiple production units to operate in sync. We can provide customized solutions for capacities of 40 T/H and above.
For this type of solution, we offer a wide range of large-scale processing equipment, including large raw material storage silos, automatic batching systems, combined crushing systems, large-scale drying systems, and cooling systems. Depending on production requirements, the cat litter pellet machine can be configured with multi-stage conditioners.
Processing System
crushing Equipment
Mixing Equipment
Drying Equipment
cooling Equipment
screening Equipment
crushing Equipment
Wood Chipper
It initially shreds large-sized logs, branches, wood blocks, and wood strips into wood chips about 20-40 mm in size. The screen mesh can be customized.
Hammer Mill
It can grind wood chips, soybean residue, corn, cassava, and other materials smaller than 5 cm into 0.5–20 mm. The screen mesh is customizable.
straw crusher
It is suitable for processing loose straw into straw powder ranging from 0.5 to 20 mm for pelletizing cat litter. The screen mesh is customizable.
Mixing Equipment
Single-Shaft Paddle Mixer
Suitable for cat litter materials with standard formulations. The double-layer paddles ensure stable mixing. Production capacity: 500–3,000 kg/batch.
Double-Screw Ribbon Mixer
This equipment can spray liquid additives during the mixing process. It has a production capacity of 250–3,000 Kg/P and is available with either manual or pneumatic discharge.
Drying Equipment
Drum Dryer
It can dry high-moisture materials to the desired level. Available in single-layer and three-layer designs. The drying effect is adjustable.

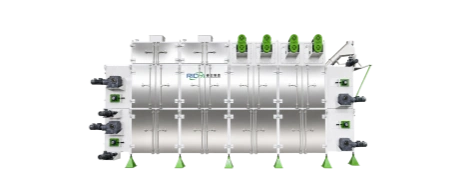

Belt Dryer
This equipment is installed after the cat litter pellet machine and serves to dry cat litter pellets. It achieves a drying efficiency increase of over 25%.
cooling Equipment
Counterflow Cooler
It rapidly cools the pellets to room temperature plus 3–5°C by using cold air. The cooling time is 6–15 minutes, which can be equipped with a material distribution device.
Stainless Steel Counterflow Cooler
This unit features a stainless steel housing, making it more resistant to high-temperature pellets. Multiple discharge options are available to minimize pellet breakage.
screening Equipment
Powder Cleaning Screen
It removes impurities such as stones and sand from powdered materials, preventing equipment wear and ensuring the quality of cat litter.
Pellet Vibrating Screen
It is used to remove dust and broken granules from the surface of cat litter pellets, ensuring consistent cat litter product size.
Pulse Dust Collector
This device can be installed in the required production sections to collect dust generated during the production process.
Service & Support
We are committed to delivering stable, transparent, and consistently high-quality service to customers worldwide. From pre-sales consulting to project delivery and long-term operation support, the RICHI professional team stands with you at every stage to ensure smooth operation and lasting value of your pellet production project.
Pre-sales Services
Customer Inquiries and Visits
Customized Services
Equipment and Production Lines
Factory Shipment
Commissioning and Logistics
Project Services
Installation and Training
After-Sales Service
Long-Term Support and Supply
Long-term Partnership
Technical Guidance and Upgrades
Other Pelletizing Equipment
As a professional manufacturer of pelletizing equipment, we offer not only cat litter pellet machine but also a wide range of pellet production equipment. At RICHI, you can find feed pellet machine, biomass pellet mill, organic fertilizer pellet machine, and other animal bedding pellet machines. These machines can also be integrated into customized solution to meet commercial production needs.
feed pellet machine
Chicken Feed Pellet machine
Designed for common poultry feed, it produces pellets of consistent quality and is suitable for chicken feed at various growth stages.
Cattle Feed Pellet machine
It can process a variety of feed ingredients, including forage, straw, and corn. You can flexibly adjust the feed formulation.
Fish Feed Pellet machine
It can produce high-density sinking fish feed in various sizes by replacing the ring die and adjusting the cutting device.
Shrimp Feed Pellet machine
Designed to meet the needs of shrimp for small pellets and easy digestibility, it produces shrimp feed with uniform size and high water resistance.
biomass pellet machine
Wood Pellet Machine
This machine compresses sawdust, wood chips, and other materials into high-density pellets. The pellets come in a wider range of sizes and are longer in length.
Grass Pellet Machine
It is suitable for various grass-based raw materials, such as alfalfa, hemp and hay. It processes them into standard feed pellets or biomass fuel pellets.
Straw Pellet Machine
Designed for high-fiber materials such as corn stalks and wheat straw, it offers excellent wear resistance, effective anti-clogging performance, and high efficiency.
Husk Pellet Machine
It pelletizes husk materials such as rice husks, peanut shells, and sunflower seed husks, delivering excellent pelletizing results and high raw material utilization.
fertilizer pellet machine
Cow Manure Granulator
It processes fermented cow manure into uniform organic fertilizer pellets, effectively improving resource utilization on livestock farms.
Chicken Manure Granulator
This machine granulates dried, fermented chicken manure into standardized organic fertilizer pellets and offers customization options.
Horse Manure Granulator
This equipment helps horse farms convert fully fermented and dried horse manure into organic fertilizer, promoting value transformation.
Cassava Residue Pelletizer
It is suitable for converting cassava byproducts, such as cassava pulp and peels, into finished organic fertilizer for crop cultivation.
bedding pellet machine
Poultry Bedding Pellet Mill
Raw materials include rice husks, sawdust, and straw. The pellets have excellent water absorption. You can adjust pellet size to suit the specific chicken coop.
Horse Bedding Pellet Mill
it typically processes wood-based raw materials such as pine sawdust and wood shavings to produce highly moisture-absorbent, low-dust pellets for horse stalls.
Cattle Bedding Pellet Mill
It can accommodate a variety of wood and straw raw materials. You can customize an optimal production plan based on the raw materials and intended application.
Rabbit Bedding Pellet Mill
Designed for small-sized bedding needs, it focuses on enhancing the pellets’ moisture absorption, controlling dust content, and ensuring high product quality.
feed pellet machine
biomass pellet machine
fertilizer pellet machine
bedding pellet machine
Frequently Asked Questions
Are we a trading company or a manufacturer?
RICHI is a professional manufacturer of pelletizing equipment, with advanced, modern factories that are always ready to welcome your visit. Our team of engineers can tailor the appropriate equipment configuration and production solutions based on the characteristics of your raw materials, production requirements, and intended product applications. We don’t just manufacture and sell equipment—we are your professional partner.
In which countries do we have projects?
Our cat litter making machine projects serve customers worldwide, including France, the United States, Thailand, Malaysia, Indonesia, and other countries. These projects cover categories such as soy-based cat litter, bentonite cat litter, wood shavings cat litter, and cassava cat litter. Simply provide your production requirements, and we will deliver a reasonable, reliable, and customized production solution.
How to Choose the Most Suitable Cat Litter Pellet machine?
You should base your selection on the characteristics of your raw materials, the type of cat litter, and your production capacity requirements. We offer a variety of cat litter pellet making machines, including tofu cat litter pelletizer machine, bentonite cat litter manufacturing machine, wood cat litter processing machine, and more. These machines can accommodate various raw materials and cat litter formulations. Each model is available with production capacities ranging from 0.2 to 40 T/H.
Can high-moisture raw materials be directly pelletized into cat litter?
If your raw material’s moisture content exceeds 15%–18%, it must undergo drying treatment. Excessive moisture affects pellet formation and hinders efficient production. You can opt to install a dryer to control the raw material’s moisture content to the ideal level.
How much does a cat litter pellet machine cost?
Our cat litter pelleting machine range in price from $7,000 to over $100,000. This range refers to the ex-factory price of the complete machine and does not include additional services. The equipment can meet production capacity requirements ranging from 0.2 to 40 T/H and above. We also offer customization services and complementary production equipment, which will increase the price accordingly. If you would like detailed quotes for specific models, please feel free to contact us at any time.
