Chicken Feed Manufacturing Plant

A chicken feed manufacturing plant is a complete chicken feed production line for producing pellets for animals, and supplying animals the basic nutrition. The equipment can be designed according to your different needs. RICHI Machinery can provide various designs to meet customers’ needs. The chicken feed production line provided by RICHI Machinery is CE/ISO/BV certificated and sold well all over the world. RICHI Machinery owns its factory and professional technical team. And we have a professional and highly-skilled after-sales service team and a modern and information-based after-sales management system.

  • Suitable for: baby chicken, hens, broilers, laying hens, turkey, etc.
  • Raw material: grass, wheat bran, rice bran, maize meal, soybean meal, sorghum, barley, cassava meal, oat, etc.
  • Finished pellets: 2-12mm

The video about the chicken feed plant

The chicken feed manufacturing plant mainly includes raw material receiving and cleaning systems, crushing systems, batching and mixing systems, granulating systems, cooling systems, screening systems, and finished product packaging systems. The chicken feed production line is specially designed for the production of chicken feed pellets and poultry feed pellets and is widely used in feed plants, farms, fertilizer plants, etc.

According to the specific needs of customers, we can design complete sets of chicken feed processing equipment suitable for broilers, layers, and chickens.

The Cost Of Build A chicken feed plant

RICHI Machinery can produce the chicken feed manufacturing plant with 1-100t/h capacity. We have a lot of different designs that can be chosen. And we can also specially customize it for you.

cost to build a chicken feed manufacturing plant
Production scale
(t/h)
Total power
(kw)
Site
area
(m²)
Number of workers
(person)
Installation time
(days)
Investment cost (USD)
1-2t/h47-75300-5001-27-1510,000-50,000
3-4t/h53-165300-7002-315-2050,000-120,000
5-7t/h68-259400-8003-420-4070,000-250,000
8-12t/h125-410800-2,0003-445-60150,000-300,000
12-20t/h358-6201,500-3,0003-460-90250,000-580,000
25-40t/h545-8702,000-4,0003-490-12045,0000-850,000
40-60t/h710-11203,000-5,0005-6100-140900,000-1,400,000
60-80t/h815-13705,000-8,0005-6130-1601,450,000-1,800,000
80-100t/h1230-17008,000-20,0006-7160 -1902,000,000-2,800,000

In general, users choose different equipment and corresponding power according to their own production capacity and product types. RICHI Machinery specializes in equipment research and development for more than 25 years. If you want to know more, just send an inquiry to us.

Features Of The Chicken Feed Manufacturing Plant

  1. These chicken feed plants are suitable for all sizes, hardness, lengths, and types of broiler and baby chicken feed production.
  2. The whole production line is equipped with an automatic electric cabinet, which reduces the labor cost.
  3. The wearing parts of the chicken feed production line can be easily replaced.
  4. This is just the common design. Under the various needs, different chicken feed plants can be specially customized by professional technicians.
RICHI feed pellet line

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

The Main Equipment Of the chicken feed plant

The main sections of the chicken feed production line are crushing, mixing, pelletizing, cooling and packing. The main equipment of a complete chicken feed manufacturing plant are cleaning system, feed grinder machine, feed mixer machine, chicken feed pellet machine, cooling machine, pellet crumbler, vibrating screener, conveying system, storage system, boiler equipment, electric cabinet, etc.

Cleaning System

The cleaning system is the first step of a complete chicken feed production line. It mainly focuses on cleaning the impurities of the raw materials. The equipment usually used are powder sieve, drum type pre-cleaner, and permanent magnet sleeve.

powder sieve

Powder Sieve

The powder sieve is mainly to do the first cleaning in the cattle feed processing plant. It can effectively separate sundries such as paper, stone, and rope mixed in raw materials to ensure normal operation.

drum type precleaners

Drum Type Pre-Cleaner

The drum-type pre-cleaner is removing large impurities, such as corn cobs, corn leaves, wheat straw, rice straw, rope, paper, clods, and other sundries, in order to protect the machinery from failure or damage.

permanent magnet sleeve

Permanent Magnet Sleeve

The permanent magnet sleeve is separating the iron filings from the raw materials. It is suitable for feed plants, grain and oil processing plants, solvent plants, and brewing plants of various sizes.

feed grinding machine

Feed Grinder Machine

A feed grinder machine is used to crush the raw materials into powder. It can crush various granular feed raw materials, such as corn, sorghum, wheat, beans, crushed cake and other materials. It is widely used by the large-sized animal feed industry.

  • Model: SFSP
  • Capacity: 3-25T/H
  • Power: 30-160KW

Feed Mixer Machine

This machine is suitable for mixing materials in various industries, such as powder, granular, flaky, and viscous materials in feed industries.

The advantages of the feed mixer machine are:

  1. The mixing efficiency can reach more than 95%.
  2. Equipped with a large-section return air pipe to reduce dust and prevent materials from residue.
  3. Oversized access door for easy maintenance.
feed mixer machine for sale
chicken feed pellet machine

Chicken Feed Pellet Machine

The chicken feed pellet machine is a key part of the chicken feed manufacturing plant. It can be used to produce baby chicken feed pellets, hens feed pellets, turkey feed pellets, broiler feed pellets, and so on. It is also widely used in animal feed processing plants and animal farms.

The advantages of the chicken feed pellet machine are:

  1. Small volume, low power consumption, and adjustable feeding speed.
  2. Stainless steel of pellet feeder, pellet mill conditioner and ring die, avoids contamination of raw materials due to equipment corrosion.
  3. Equipped with safety pins, it can prevent overload.
  4. Different sizes or hardness of pellets can be obtained by changing the ring die.

Cooling Machine

The counterflow cooler series can cool pellets from 80°C to slightly above room temperature for 3°C-5°C, for easier transportation and storage of pellets.

The advantages of the cooling machine are:

  1. Adopting counterflow cooling, the pellets are cooled evenly.
  2. The cooling box is an octagonal shape, which reduces the residue of dead angle.
  3. Stainless steel of the closed air lock feeder with strong corrosion resistance, so that the equipment can work longer.
  4. Equipped with a number of material level installation holes, by adjusting the position of the material level, so as to control cooling time.
cooler machine
pellets crumbler for sale

Pellet Crumbler

It is widely used for crushing poultry pellets and aquatic pellets. Mainly used to produce small-diameter feed pellets for baby chickens and suckling pigs. Because of the pellet feed crumbler, the whole production line can grow 0.8-12mm different particle size feed pellets to meet the feeding needs of different animals.

Vibrating Screener

The vibrating screener is a high-efficiency material grading screen equipment widely used for grain, feed, flour, and food industries to realize material grading.

The advantages of the vibrating screener are:

  1. It is suitable for the cleaning and grading of some particles and powder materials, as well as the classification and secondary circulation crushing process of granular materials and crushed materials.
  2. The design of a streamline inside the discharge port prevents the deposit of material and avoids cross-contamination.
  3. Two-layer sieves and three-layer sieves can be customized according to needs.
vibrating screener

Conveying System

The conveying system is mainly used to transfer material. Due to different sections, different conveying systems can be used, such as bucket elevator, scraper conveyor, and screw conveyor.

bucket elevators

Bucket Elevator

It is used for conveying materials in the vertical direction, and the conveying height can reach 50m.

scraper conveyor

Scraper Conveyor

It is used for horizontal or small angle transportation of high-yield materials, and the length can reach 30m.

screw conveyor

Screw Conveyor

It is used for short-distance transportation of materials and can be used at an inclination angle of less than 20°.

In general, users choose different equipment and corresponding power according to their own production capacity and product types. RICHI Machinery specializes in equipment research and development for more than 25 years. If you want to know more, just send an inquiry to us.

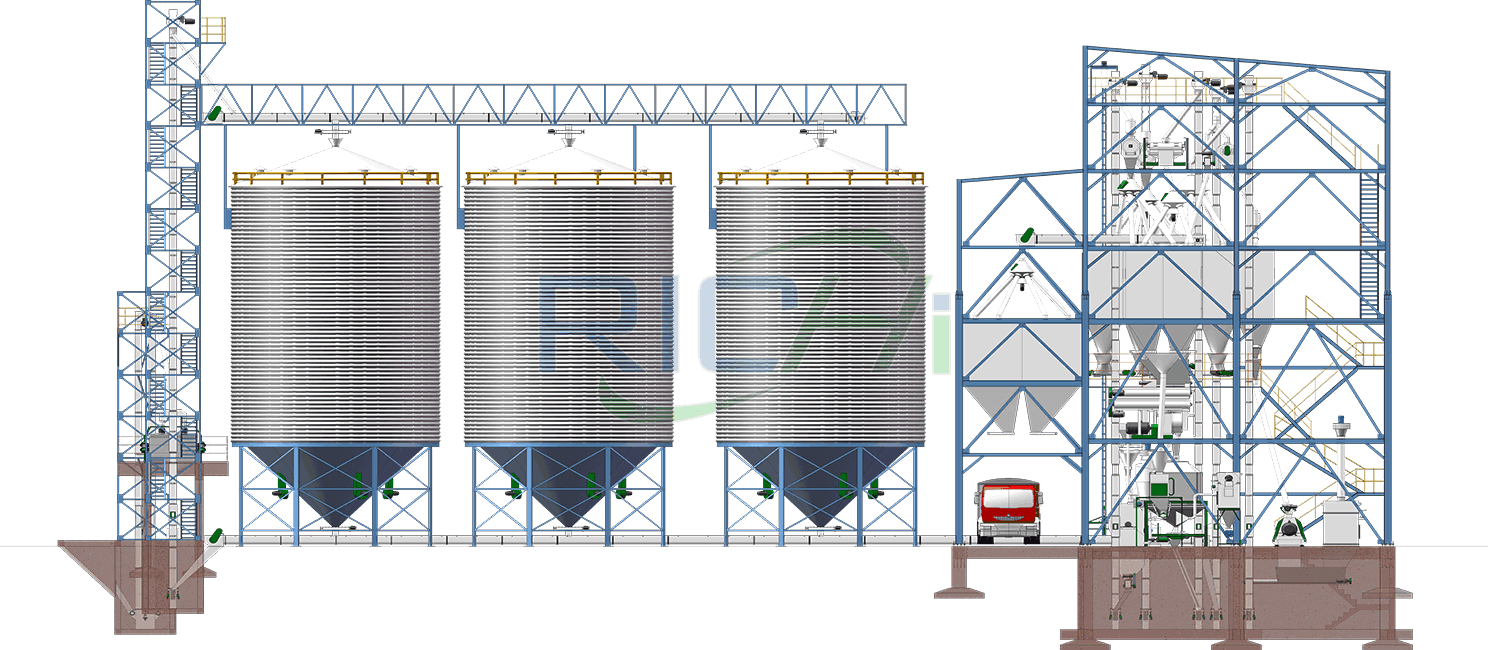

The Working Process Of The Chicken Feed Manufacturing Plant

The main sections of the chicken feed production line are the crushing and mixing section, pelletizing section, and cooling, and the packing section. The main machines are feed grinder machine, feed mixer machine, chicken feed pellet machine, pellet crumbler, cooling machine, screwing system, conveying equipment, etc.

working process of chicken feed manufacturing plant

(1) Crushing And Mixing Section In Chicken Feed Plant

This step is mainly to remove impurities of raw materials, such as rope, clods, and iron filings, and crush the raw materials into the size needed. Putting the raw material of a specific proportion into the screw conveyor. Then the raw material would be crushed into powder by the hammer mill. After that, the powder would be completely mixed in the animal feed mixer.

crushing system

(2) Pelletizing Section In Chicken Feed Manufacturing Plant

The pelletizing section is the most important part of the whole process. This section is to press the powder into particles of a certain size. After mixing, the powder is conveyed into the conditioner by the variable frequency feeder. And in the conditioner, the powder is fused with steam. After reaching a certain temperature and moisture, the powder enters the ring die granulator. Then the powder is strongly squeezed by the ring die and the pressure roller to form granules. Under the strong compression of the ring die and the pressure roller, the granules are formed and then cut into the desired length by the cutter.

pelletizing system

(3) Cooling And Packing Section In Chicken Feed Production Line

The conveyor puts the pellets into the cone bucket. The pellets pass through the cone bucket and are discharged into the cooler. Then the pellets get through the vibrating screener. After sieving, the pellets can be packed.

cooling and screening and packing section

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

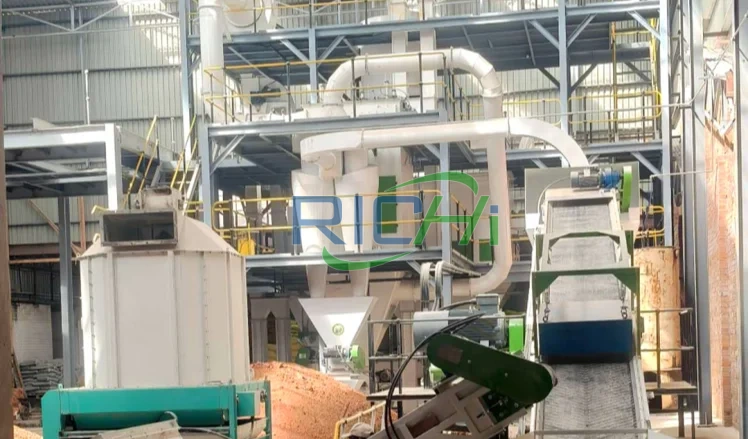

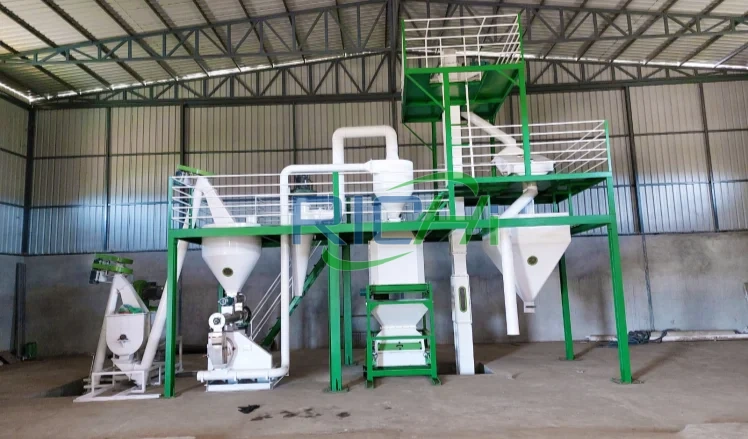

Cases Of The chicken feed production line

The chicken feed manufacturing plant provided by RICHI Machinery is CE/ISO/BV certificated and sold well all over the world. It is favored by the majority of users. RICHI Machinery has clients from more than 100 countries, such as Tanzania, Malawi, Afghanistan, Uzbekistan, Senegal, Rwanda, Gambia, Saudi Arabia, New Zealand, Sudan, Papua New Guinea, Botswana, Cape Verde, Iraq, Australia, etc. If you have something want to learn about, you can visit on-site.

The Chicken Feed Plant In Tanzania

The Chicken Feed Plant In Tanzania

Project start timeNovember 2017
Project nameChicken feed production line
Capacity1-2T/H
Customer’s main raw materialcorn, wheat, and other grain
Customer’s feed pellet size1-2mm small baby chicken feed, 3mm, 4mm, and 6mm chicken feed
Workshop size of this project13m*4m*8m (L*W*H)

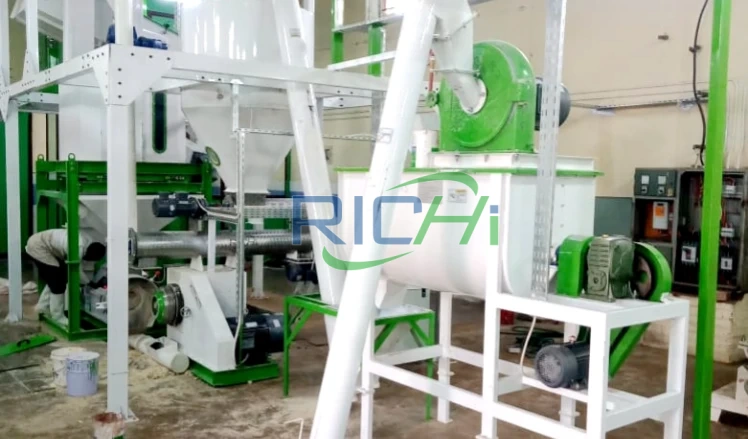

The Chicken Feed Manufacturing Plant In Malawi

The Chicken Feed Manufacturing Plant In Malawi

Project start timeNov 27th, 2018
Project nameChicken feed plants
Capacity1-2T/H
Customer’s main raw materialcorn, wheat, soybean meal, oil, premix, and other grain
Customer’s feed pellet size2mm, 3mm, 4mm, and 6mm animal feed
Workshop size of this project6m*3m*7m (L*W*H)
The Chicken Feed Production Line In New Zealand

The Chicken Feed Production Line In New Zealand

Project nameBroiler feed plants
Project start timeMay 21th, 2020
Capacity3-5T/H
Customer’s main raw materialwheat, soya meal, and sorghum
Customer’s feed pellet size2-5mm
Workshop size of this project12m*9.5m*11m (L*W*H)
Complete Chicken Feed Manufacturing Plant In Senegal

Complete Chicken Feed Manufacturing Plant In Senegal

Project nameChicken feed plants
Project start timeMar 13th, 2017
Capacity3-5T/H
Customer’s main raw materialcorn, wheat, soybean meal, and other grain
Customer’s feed pellet sizepowder and 3mm, 4mm pellet feed
Workshop size9m*5m*13m (L*W*H)
The Chicken Feed Production Line In Uzbekistan

The Chicken Feed Production Line In Uzbekistan

Project start timeJuly 1st, 2019
Capacity10-15T/H
Customer’s main raw materialcorn, wheat, soybean meal, and other grain
Customer’s feed pellet size0.5-12mm chicken feed pellet, powder
Workshop size of this project35m*20m*25m (L*W*H)

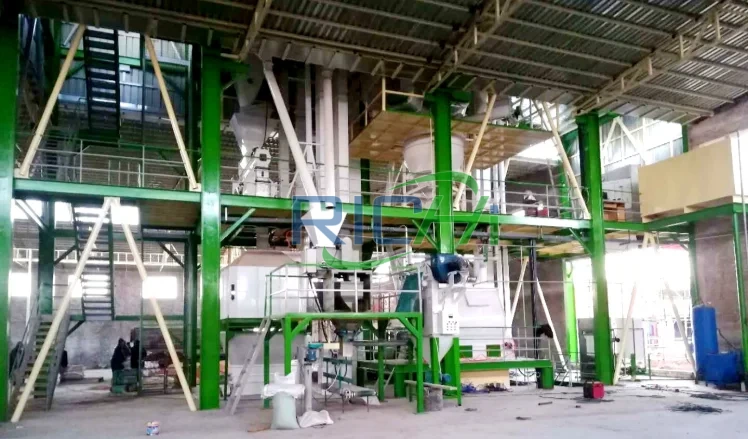

The Chicken Feed Production Line In Afghanistan

The Chicken Feed Production Line In Afghanistan

Project start timeNov 18th,2017
Capacity10-15T/H
Customer’s main raw materialcorn, wheat, soybean, and other grain
Customer’s feed pellet size2-6mm chicken feed pellet
Workshop size of this project12m*12m*25m (L*W*H)
The Chicken Feed Manufacturing Plant In Saudi Arabia

Animal Feed Factory Project in Saudi Arabia

Project nameChicken feed plant
Project start timeMarch 30th, 2018
Capacity15-16T/H
Customer’s main raw materialcorn, wheat, and grain
Customer’s feed pellet size1-8mm
Workshop size of this project16m*8m*12m (L*W*H)
Complete Chicken Feed Manufacturing Plant In China

Complete Chicken Feed Manufacturing Plant In China

Project nameChicken feed plants
Project start timeDecember 2018
Capacity30-40T/H
Customer’s main raw materialcorn, soybean meal, rapeseed meal, fish meal, distillers grains
Customer’s feed pellet size2-4mm pellets and premix powder

RICHI Machinery has provided thousands of feed manufacturers with chicken feed production lines, poultry and chicken feed plants, and single poultry and chicken feed pellet machines. And hope that in the future we can also help you successfully build an efficient and high-return chicken feed manufacturing plant.

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

Why To Use Chicken Feed Manufacturing Plant?

When raising chickens, it is usually necessary to feed them, so as to promote their normal growth and facilitate higher economic benefits for people. Existing chicken feed is usually packaged directly after processing and production without pelletizing the feed, which makes it difficult to store and transport.

RICHI pellet machine can produce feed pellets that are suitable for chicken. The advantages of the feed pellets are as follows:

chicken feed pellet
  1. Increasing the feed intake of chicken and animals and reduce feed waste.
  2. When changing the chicken feed formula, it can be more easily accepted by animals.
  3. Improving the conversion rate of feed digestion.
  4. Preventing picky feeding of chicken and animals to ensure good nutritional chicken feed formula.
  5. High temperature and steam sterilization can eliminate harmful microorganism in chicken feed.
  6. High quality chicken feed pellets can withstand repeated treatment and remain intact during bagging, transportation, storage and delivery of the feeding line.

Chicken pellet feed is a strip feed made of powdered feed extruded by a chicken feed pellet machine. It is a popular feed form today. In recent years, with the rapid development of the feed industry, pellet feed has been gradually accepted by the majority of farmers. Therefore, for chicken feed manufacturers or poultry farms, the establishment of a chicken feed plant or the purchase of a chicken feed manufacturing plant is very promising.

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

How To Choose a Proper chicken feed plant?

Do you get into trouble when you want to build a chicken feed manufacturing plant? Do you hesitate how to select the proper equipment? Don’t be anxious. You can choose based on the following aspects.

choose proper chicken feed manufacturing plant

The Type Of Chicken

Chicken feed manufacturing plant is specializing in the production of feed. It can produce different feed pellets, such as baby chicken feed pellets, hens feed pellets, laying chicken feed pellets, broilers feed pellets, turkey feed pellets, etc.

type of chicken

The Type Of Pellets

RICHI chicken feed production line is used to produce feed pellets of different sizes, such as 1.5mm baby chicken feed pellets, 3-4mm broiler and layer feed pellets, and other sizes you need. It can be customized according to your detailed requirements.

size of the pellets

What The Pellets Used For

If the feed pellets you produce are only for your own farm or animals, you do not need a packing machine. If you produce feed pellets for sale, then you have the need for a packing machine.

Packing Process

An important step in choosing a high-quality chicken feed plant manufacturer is to find a reliable brand of feed pellet mill. RICHI Machinery has its own factory and professional production equipment. It is an industrial group that mainly focuses on feed pellet machinery, and also involves biomass pellet energy machinery, organic fertilizer pellet machinery, and parts.

professional manufacturer of feed pellet production line

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

Why Choose RICHI Machinery?

RICHI Machinery pursues the purpose of product quality first. The main parts and wearing parts are made of high-quality wear-resistant materials, coupled with advanced processing technology.

We can provide to build different types of chicken feed plants to meet different chicken feed production needs. We also provide various solutions for customers according to their needs, raw materials, production capacity, etc. Not only can produce feed grinder machines, feed mixer machines, chicken feed pellet machines, feed batching equipment, puffing equipment, and automatic electric control equipment, but also can develop from a single machine to complete sets of feed equipment. With more than 20 years of experience in the industry, RICHI Machinery can provide customers with different recommendations. The equipment is sold in many countries and regions in the world, such as Europe, Asia, Oceania, North America, South America, the Middle East, and Africa.

If you want to build a chicken feed manufacturing plant, the advantage of choosing us is that RICHI Machinery can help you:

  • Determine the scale of the chicken feed plant.
  • Determine feed technology and recommend related equipment.
  • Control mode selection.
  • Structure selection of chicken feed production equipment.
  • Plan the general layout of the chicken feed plant.We are committed to undertaking all 1-100T/H chicken feed production lines.
RICHI chicken feed manufacturing plant

Also, RICHI Machinery can provide you with feed machinery design, feed machinery installation, training, and after-sales service.

RICHI feed pellet line

Feed Machinery Design And Production

RICHI Machinery has a professional technical team. On the basis of site survey and planning for customers, provide customers with detailed project design scheme, feed equipment list, project cost, design site foundation drawings, and design special feed production process.

RICHI quality first

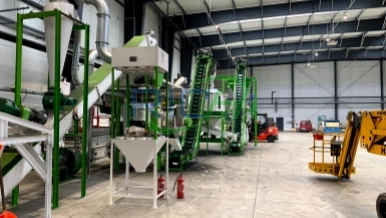

Feed Machinery Installation And Training

RICHI Machinery has a complete technical training and guidance system. After installation, professional engineers will train operators and guide the handling of common problems to ensure the stable operation of the system.

feed machinery installation

After Sales Service

RICHI Machinery always focuses on the field of feed machinery processing and has a modern and information-based after-sales management system and a professional and highly-skilled after-sales service team. From the supply of common accessories, and equipment maintenance to repair, we provide customers with a “one-stop” service to solve their problems and worries.

after sales service

RICHI Machinery, as a chicken feed manufacturing plant manufacturer, would offer you all-around service. If you want to learn more about poultry feed pellet machines, just contact us.

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

Why Chicken Farms Need Chicken Feed Machines?

In the process of raising chickens, farmers often choose to match their chickens with chicken feed for the sake of reducing costs and improving nutrition. As we all know, chicken feed is the basic guarantee for the healthy growth of chicken flocks on chicken farms. There are also a lot of requirements for the processing of chicken feed. However, some farmers often pollute the chicken feed due to improper processing methods, which is not conducive to the normal growth of chicken flocks on chicken farms, and also increases the cost of raising chickens for farmers.

The chicken feed manufacturing plant is to make corn, soybean, maize, grass, and wheat powdery into 2-12mm chicken feed pellets. After crushing and mixing the raw materials, the chicken feed pellet machine can process raw materials into nutritious feed pellets for the chicken. The feed pellets produced by RICHI pellet machine have the following advantages.

raw materials for animal feed

First of all, after the sterilization of high-temperature steam, the possibility of mildew and insects in the feed is reduced, and the palatability of the feed is improved. Secondly, the nutrition is comprehensive, and animals are not easy to picky about food, which reduces the separation of nutrients and ensures the daily supply of nutritionally balanced feed. Thirdly, the reduction of the volume of feed pellets is easy for feeding. Also, it can reduce labor consumption.

RICHI Machinery can provide you with a complete chicken feed manufacturing plant. We can help you with plan design, workshop layout, equipment production, installation, training to after-sales. If you are intending to build a chicken feed plant, just contact us.

RICHI complete chicken feed manufacturing plant

In general, users choose different equipment and corresponding power according to their own production capacity and product types.

question

How To Safeguard Feed Quality And Feed Mill Efficiency?

With in-depth research on the feed industry, more and more scientific researchers and manufacturers are improving the quality of raw materials and optimizing formulations, while taking feed processing technology as an important way to improve product quality. The hardness of feed pellets is an important index of the appearance quality of pellet feed. And it is also found that the particle hardness of pellet feed has a certain influence on the production performance of livestock and poultry in the feeding process of some chicken farms. Therefore, how to regulate the particle hardness of pellet feed is a problem that some manufacturers and scientific researchers are actively exploring.

Throughout the whole process of feed pellets production, in addition to the feed formula, the process that affects the hardness of the feed pellets are: the crushing process of raw materials, the steam conditioning process, and the selection of the ring die in the pelletizing process.

(1) Effect Of the Crushing Process On Pellet Hardness

The decisive factor for the hardness of the pellets in the crushing process is the size of the crushed raw materials. The impact of crushing raw materials’ size on the hardness of the pellets directly affects the conditioning process and granulation process. In actual production, according to the production performance of different animals and the size of the ring die aperture, crushing size requires to make appropriate adjustments.

Generally speaking, in the process of the chicken feed manufacturing plant, the finer the crushing size of the raw material, much easier the starch paste in the conditioning process, the much stronger the bonding effect in the raw materials, and the much greater the hardness of the pellets.

(2) The Effect Of the Steam Conditioning Process On The Hardness Of Pellets

Steam conditioning is a key process in pellet feed production, and the conditioning effect directly affects the internal structure and appearance quality of pellets. Steam quality and conditioning time are two important factors that affect the conditioning effect. High-quality and dry saturated steam can provide more heat to raise the temperature of the material. The longer the conditioning time, the higher the degree of starch paste, and the greater the hardness of the feed pellets.

conditioners

For general livestock and poultry, the conditioning temperature is kept at 70-80℃ by adjusting the amount of steam added, and the conditioning time is controlled by changing the length of the conditioner, the angle of the paddle, and the rotational speed to about 30 seconds. For fish materials, it generally adopts a double or multi-layer conditioner to increase the conditioning temperature and extend the conditioning time. It is more conducive to improving the stability of fish pellets in the water, and the hardness of the pellets also increases accordingly.

In the processing of chicken feed plants, the factors affecting the hardness of the pellets are far more than these. As more and more scientific and technical workers are enthusiastic about feed processing technology research, more and more methods to regulate the hardness of the pellets are mastered. RICHI Machinery can provide various chicken feed manufacturing plants to produce different feed pellets to suit the needs of animals. If you have this intention, just send an inquiry to us.

CONTACT US

—— GET A QUOTE ——

Pls Send Your Contact Information And Project Requirements, We Will Let Our Project Counselor Contact With You. In Addition, We Will Send The Quotation, Video, And Other Detail Information To Your Email, Pls Remember To Check Your Email!

Address
Longhai 2nd Rd & 10th St, Kaifeng City, Henan Province, China

Mail Address
enquiry@richipelletmill.com
Fax: 0086-371-63752859

Our Numbers
Whatsapp:+8618574103366
Telephone:0086-185-74103366

Open Hours
24 hours at your service Customize your private production

    Leave Your Message, We Will Contact With You And Customized The Project Scheme To You Asap.

    Scroll to Top

    LEAVE YOUR NEED

    Please write your message here! We will send detail technical info and quotation to you as soon as possible!

      Leave Your Message, We Will Contact With You And Customized The Project Scheme To You Asap.
