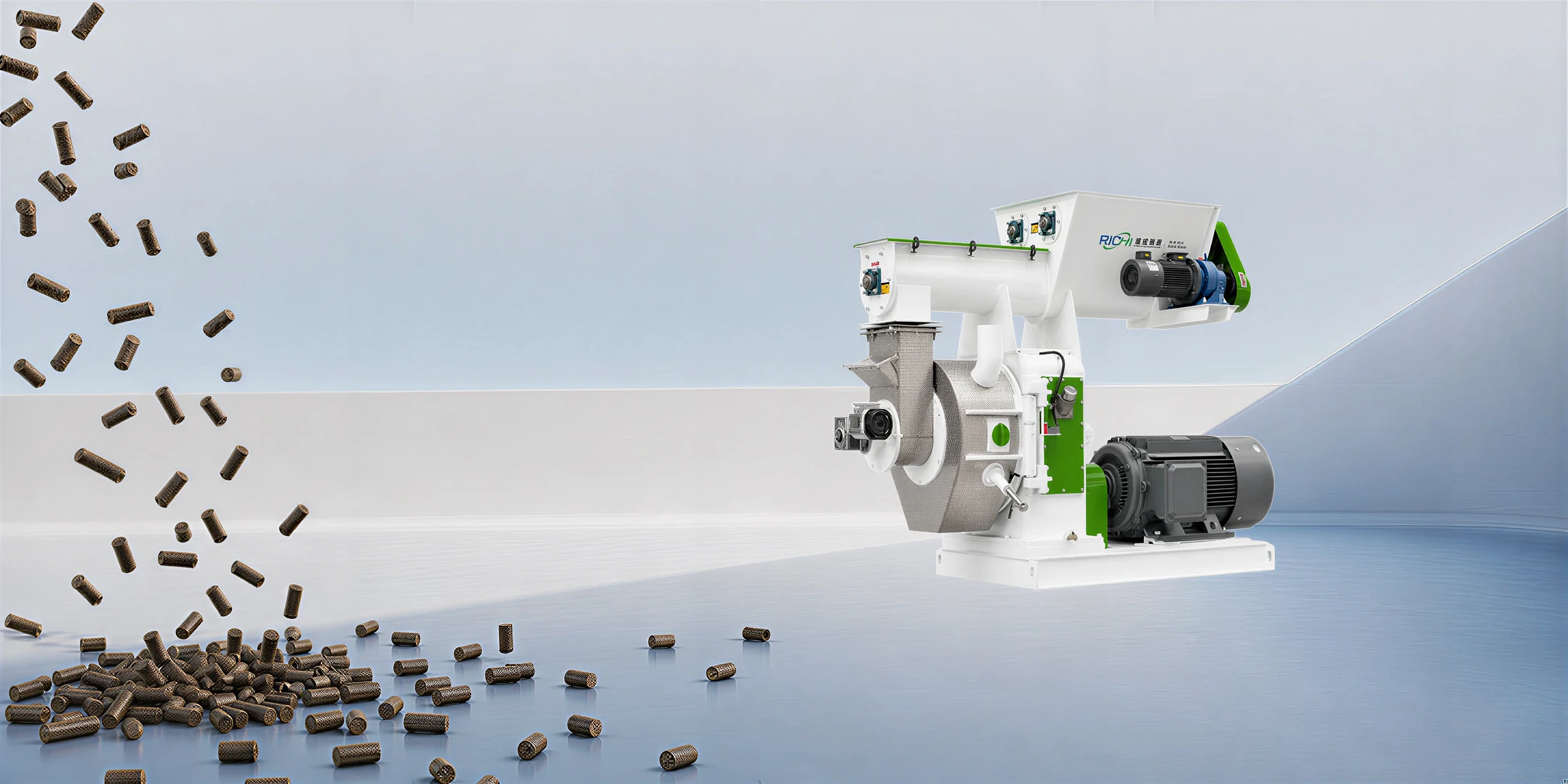

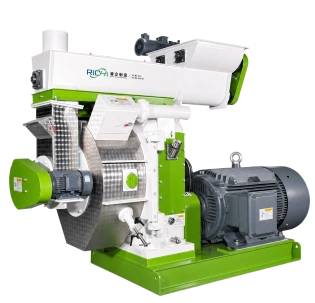

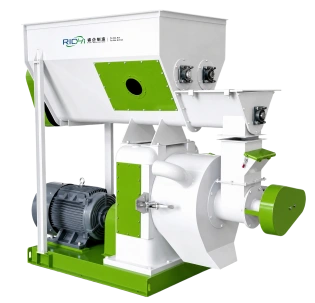

Chicken Manure Pellet Machine

This chicken manure pellet machine is compatible with a wide range of raw materials and production requirements, making it suitable for poultry farms and organic fertilizer manufacturers of all sizes.

Structural Design

RICHI chicken manure pellet machines feature a high-precision gear drive system that boosts efficiency by 15%. They are equipped with multiple anti-clogging devices to minimize material blockages. Wear-prone components are made of wear-resistant materials, ensuring a long service life and easy maintenance. The machines operate stably, produce minimal noise, and offer high safety. They are capable of handling chicken manure pelletizing tasks for various formulations.

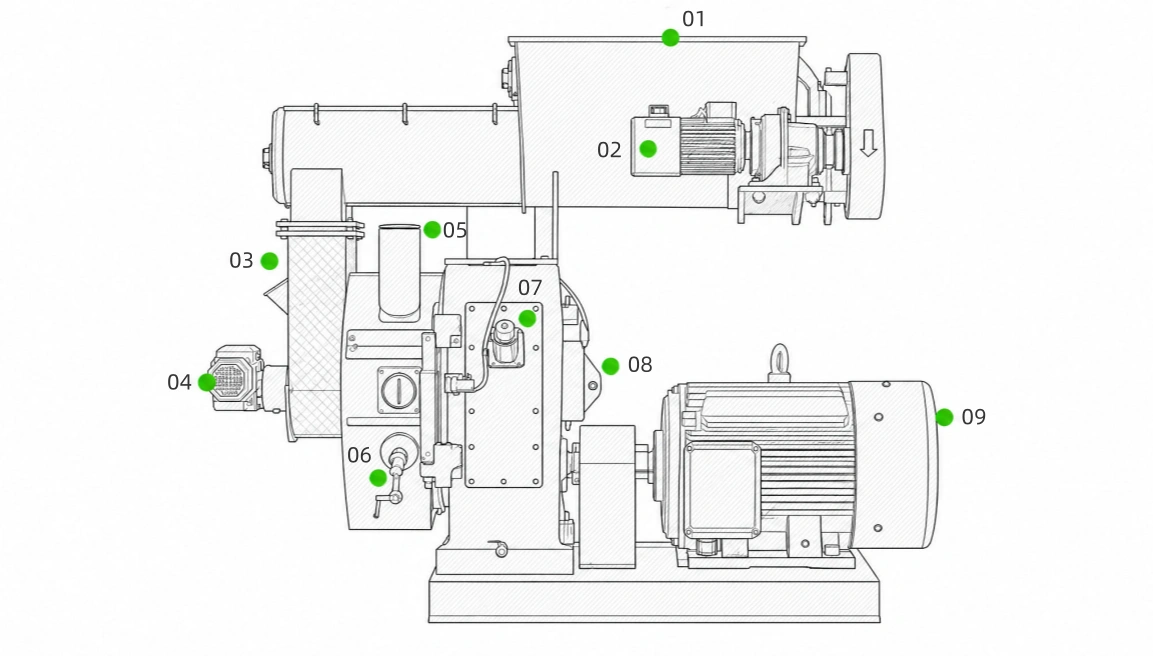

  • 01Feed Inlet
  • 02Variable-frequency motor
  • 03Inspection port
  • 04Forced feeder
  • 05Exhaust port
  • 06Cutting Adjustment Device
  • 07Oil Filler Port
  • 08Safety Pin
  • 09Main Motor
Chicken manure pellet machine structure display

You can click on the right to watch a trial run video of this organic fertilizer pellet machine. Here is a project of a 2–3 T/H chicken manure pellet making machine for sale Brazil.

Main Components of chicken manure pelletizer

Variable-Frequency Feeding Inlet

Variable-Frequency
Feeding Inlet

The moisture content of the chicken manure raw material is inconsistent. To prevent clogging of the feeding inlet, this pelletizer uses a variable-frequency feeder. It is equipped with a variable-frequency motor that automatically adjusts the feeding rate to ensure smooth feeding.

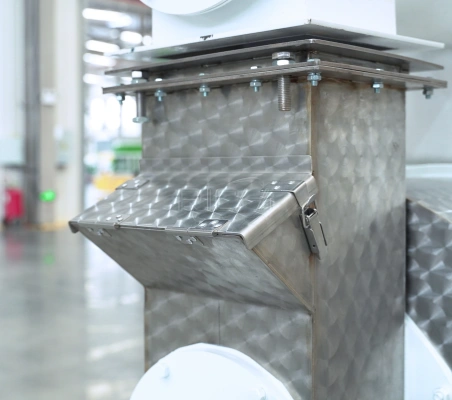

Inspection Port

Inspection
Port

This feature is designed to allow you to monitor the internal operation of the pelletizer in real time, observe the pelletizing results, and check for any buildup of raw materials. Based on these observations, you can adjust the chicken manure formula or the moisture content.

Innovative Ring Die

Innovative
Ring Die

The innovative ring die is made of high-hardness alloy steel or stainless steel, making it suitable for chicken manure feedstocks of various formulations. Its scientifically arranged hole pattern ensures high output per unit. The clamp-type design allows for easy disassembly.

Pressure Roller shell

Pressure Roller
System

The chicken manure pellet machine has a dual-pressure roller configuration, delivers more powerful compression. This system ensures a denser pellet structure and a higher formation rate. This helps maintain the pellet structure and reduces the occurrence of broken pellets.

Cutter Adjustment Device

Cutter Adjustment
Device

This device is located on the inside of the hopper door, close to the ring die. Using the adjustment handle on the outside, you can flexibly control the distance between the cutting blade and the ring die, thereby cutting chicken manure pellets to the ideal length.

chicken manure pellet maker Model Selection

1-1.5T/H

2-3T/H

3-5T/H

6-8T/H

9-12T/H

18-22T/H

22-26T/H

ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH2501.0-1.5222.20.752504~12
ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH3202-3222.20.753204~12
ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH3503-5372.20.753504~12
ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH4206-89031.54204~12
ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH5209-1213231.55204~12
ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH67818-2218531.56734~12
ModelCapacity
(T/H)
Main Motor
Power (kw)
Feeder
Power (kw)
Forced feeder
Power (kw)
Ring Die Inner
Diameter (mm)
Final Pellet
Diameter (mm)
FZLH76822-2625041.57624~12

In addition to basic models of the chicken manure pellet machine listed above, we also offer customization options for production capacity, ring die inner diameter, pelletizing parameters, and more. This equipment has a production capacity 1.5 to 2 times that of flat-die models and is capable of continuous, stable operation. As a result, it is used in a wide range of chicken manure pelletizing applications. Please feel free to contact us at any time to customize your own production solution.

Large Poultry Farms

Large Poultry Farms

Organic Fertilizer Plants

Organic Fertilizer Plants

Manure Recycling Projects

Manure Recycling Projects

Agricultural Fertilizer Producers

Agricultural Fertilizer Producers

Equipment advantages

chicken manure fertilizer pellets
Automated Production icon

PLC-Based Automated Production

To improve production efficiency and reduce reliance on manual labor, each chicken manure pellet machine can be equipped with a PLC control system to automate feeding, pelletizing, and discharging, resulting in a smoother and more efficient production process.

Pellets product icon

Consistent Pellets product Quality

This pelletizing process preserves organic nutrients such as nitrogen, phosphorus, and potassium in chicken manure, ensuring product quality. The resulting chicken fertilizer pellets have a stable structure, release nutrients evenly, and improve soil fertility.

ling service life icon

Extended Equipment Service Life

The chicken manure pellets machine uses high-quality imported bearings and a compensating serpentine spring coupling, ensuring stable and efficient operation with a low failure rate. It is equipped with an overload protection device to extend the equipment’s service life.

Formula icon

Multiple Formula Compatibility

This chicken manure pelleting equipment is equipped with innovative ring die, dual rollers, and anti-clogging devices. Therefore, it can accommodate chicken manure formulations with varying moisture content, particle size, and density, ensuring consistent production.

Global Cases

RICHI has supplied chicken litter pellet processing machines to numerous countries and regions, including the United States, Brazil, Australia, and Southeast Asia. These projects involve customized pelletizer and complete chicken manure pelleting equipment. We provide the most suitable configuration based on each customer’s specific needs and local conditions.

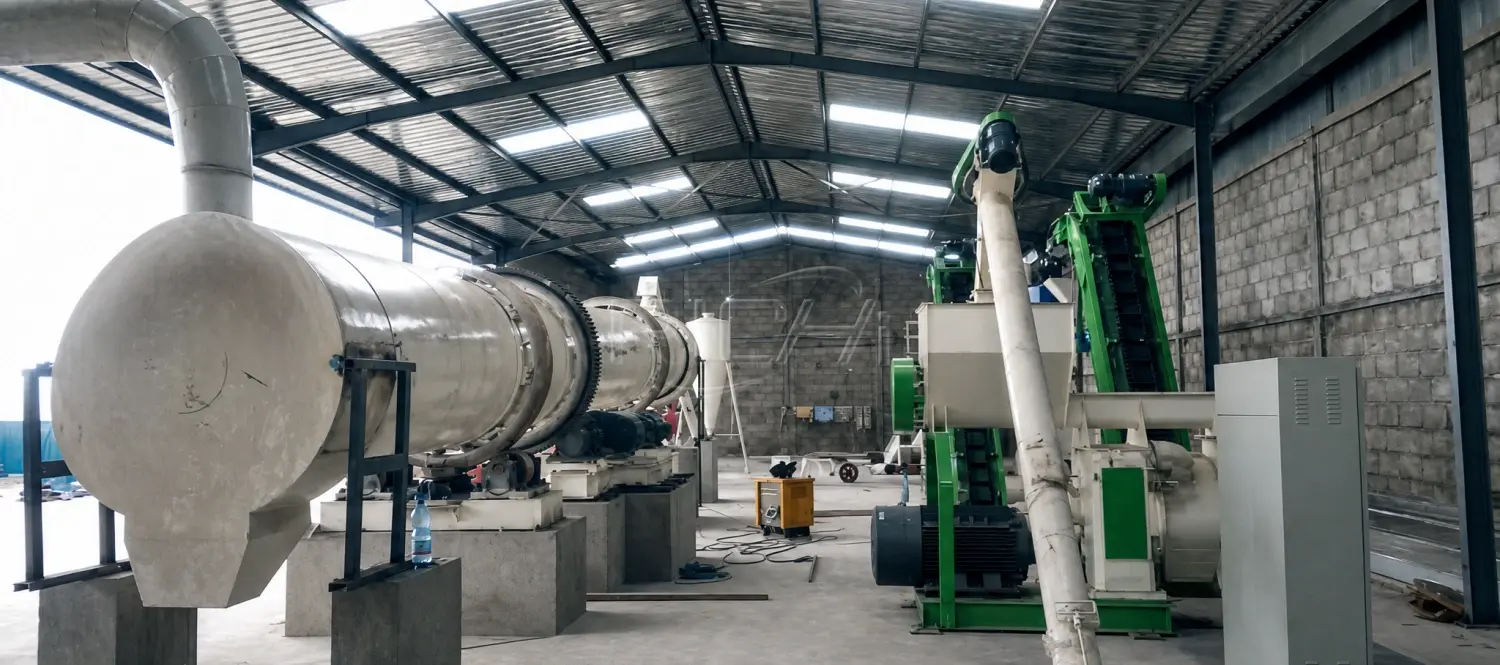

2-3 T/H chicken manure pellet machine for sale to uSA

This project provides chicken poo granulation equipment services for a large-scale layers farm. The raw material is fermented chicken manure mixed with used wood shavings bedding. We supplied a crusher, a chicken manure pellet mill, and a cooling and packaging system. We adjusted the pellet mill parameters to account for the fiber content in the wood shavings, ensuring consistent hen manure pellets formation.

USA

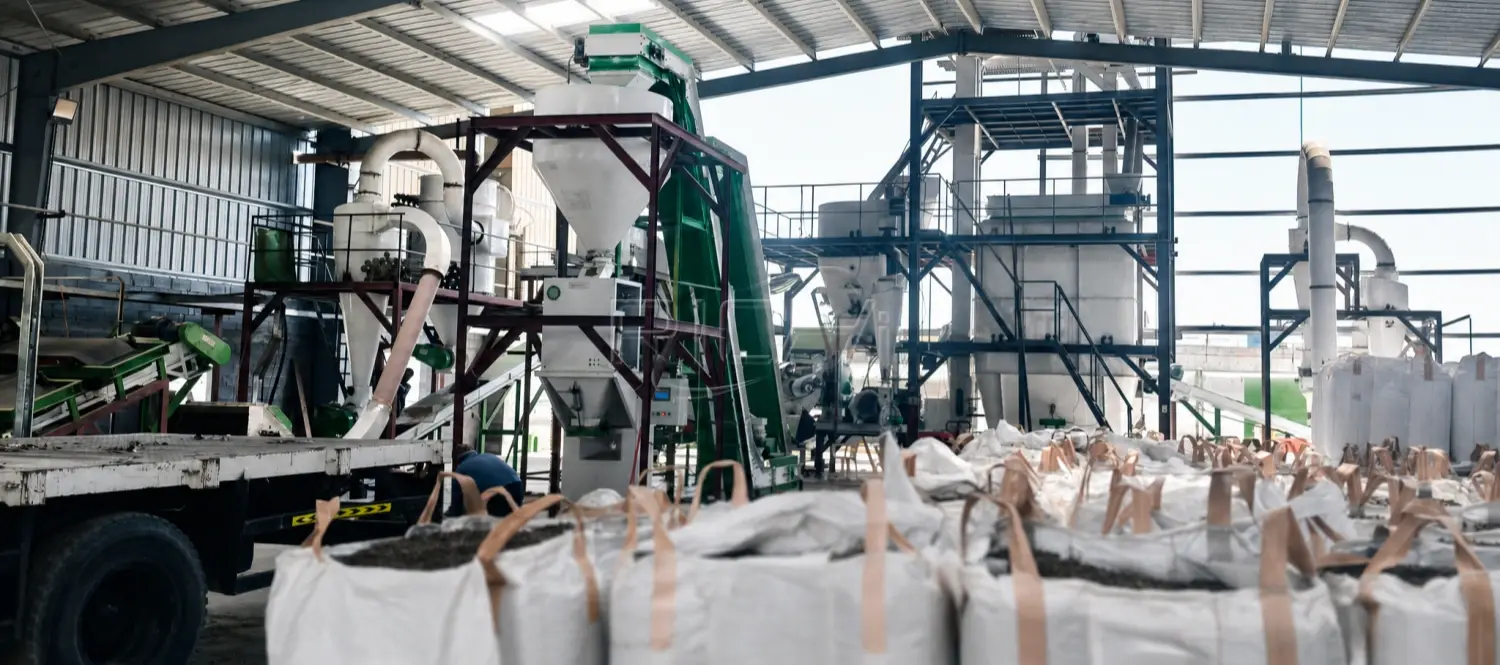

3-4 T/H chicken manure pellets machine for Sale Indonesia

This organic fertilizer plant uses fermented chicken manure, rice husks, and other raw materials to produce organic fertilizers for fruit and vegetable cultivation. To meet stable production demands, the project is equipped with an automated organic fertilizer production line. The line includes a fermentation system, rotary dryer machine, crushers, and is capable of processing chicken manure in batches.

Indonesia

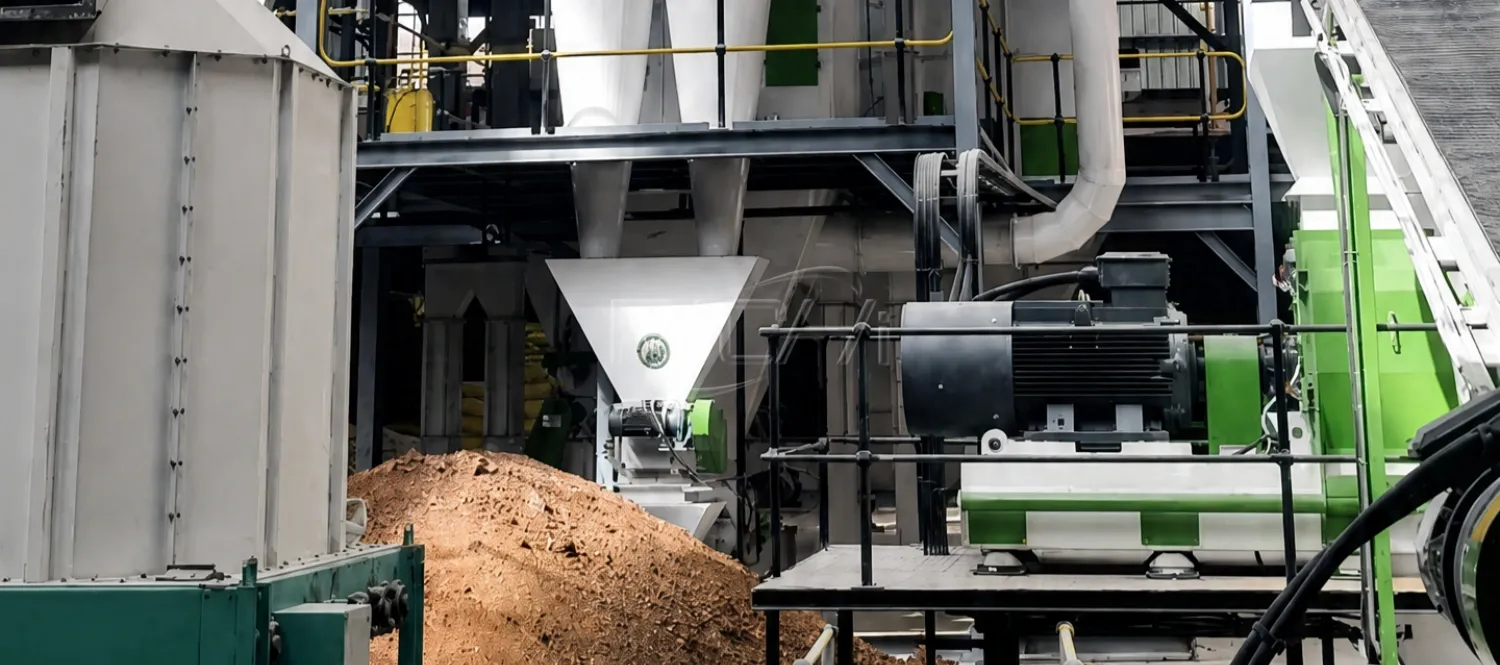

5-6 T/H poultry manure pellet machine for Sale Thailand

This is a turnkey solution for an organic fertilizer enterprise that converts poultry waste into marketable organic fertilizer. We provide chicken litter pellets processing machines, including fermentation tanks and belt dryer machine. The production line is compatible with a variety of chicken manure formulations and can be flexibly adjusted. The resulting pellets meet the needs of local rice, orchard, and vegetable farming.

Thailand

2-3 T/H chicken manure pellet machine for sale to uSA

Capacity

2-3T/H

Raw materials

Fermented chicken manure, wood bedding

3-4 T/H chicken manure pellets machine for Sale Indonesia

Capacity

3-4T/H

Raw materials

Fermented chicken manure, rice husks

5-6 T/H poultry manure pellet machine for Sale Thailand

Capacity

5-6T/H

Raw materials

Fermented chicken manure, rice husks

Project Video

Recent Projects

Project site

Please click on the right to watch videos of the chicken manure pellets machine during trial runs and actual production.

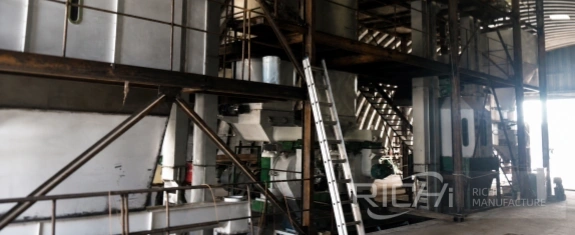

3-4 T/H Chicken Manure Production Equipment For Sale To Australia

3-4 T/H Chicken Manure Production Equipment For Sale To Australia

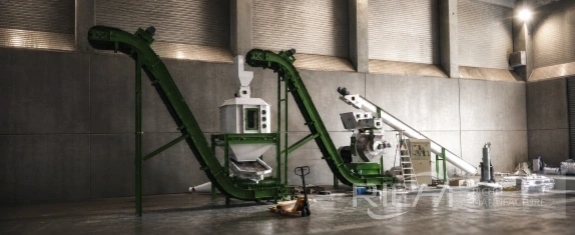

1.5 T/H Chicken Manure Pellet Machine For Sale To India

1.5 T/H Chicken Manure Pellet Machine For Sale To India

Customer reviews

★★★★★

Our in-house chicken manure has been transformed into a standard agricultural fertilizer. It is easier to store and use than raw manure, and it is also clean and hygienic.

Mexico

★★★★★

Currently, this chicken manure pelleting equipment includes drying, grinding, mixing, pelletizing, and packaging. The entire operation runs very smoothly and is easy to operate.

South Africa

★★★★★

Our chicken manure has been composted, but it is inconvenient to use. After processing through the chicken manure pellet machine, it can be sold.

Brazil

★★★★★

We have many organic fertilizer formulations. This equipment is fully adaptable to the production of different types of organic fertilizers, and the pellets are very uniform.

Thailand

chicken manure pellet Production solution

Drying Process

crushing Process

pelleting Process

cooling Process

packing Process

Fresh chicken manure can easily burn plant roots and are not suitable for organic fertilizer production. We offer fermentation tanks specifically designed for composting chicken manure.

After composting, a dryer is needed to reduce the moisture content of the chicken manure. Generally, the moisture content should be maintained between 12%–18% to facilitate further processing. In this process stage, the drying time can be adjusted appropriately based on the material’s moisture content.

dried chicken manure raw materials

For lumpy materials such as chicken manure, bedding, and straw, we offer a specialized crushing process. Crushed materials are easier to pelletize and break down into nutrients.

Based on your production needs, we provide twin-shaft crushers, hammer mills, and ultra-fine crushers (60–300 mesh), among others. For mixed raw material formulations, we can also configure mixers and batching systems to optimize fertilizer composition.

crushed manure raw materials

Chicken manure that has undergone proper crushing and drying enters the pelletizing section. The chicken manure pellet machine ompresses the mixture of chicken manure and additives into uniform pellets.

To meet the demand for pellets of various diameters, ring dies with different pore sizes can be configured. The pellet length can be adjusted using the cutting device on the side of the pelletizer. We can adjust the pelletizing parameters according to your needs.

fresh manure pellets

After forming, the chicken manure pellets must undergo cooling and screening to ensure consistent quality. If the pellets require further drying, a belt dryer can be installed.

Cooling helps the pellets set quickly, reducing the risk of breakage during transportation. Screening ensures uniform product specifications, facilitating consistent application and more even nutrient release.

cooled manure pellets

Finally, the screened chicken manure pellets that meet specifications proceed to the packaging section. This section features automated weighing and packaging to ensure consistent package sizes for storage and transportation.

For multi-batch production, consider installing storage silos and material conveying systems at the interfaces between production sections. These components ensure a smooth production flow and improve production efficiency.

bagged manure pellets

chicken manure Processing System

crushing Equipment

Mixing Equipment

Drying Equipment

cooling Equipment

cleaning Equipment

packaging Equipment

crushing Equipment

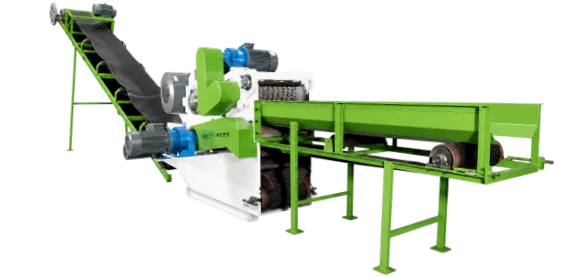

Dual-Shaft Crusher

It initially shreds clumped, large-sized raw material, wood bedding, and high-fiber materials into 20-40 mm in size. The screen mesh can be customized.

Explore This Device

Dual-Shaft Crusher

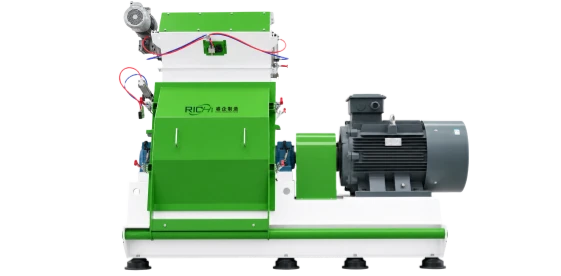

Hammer Mill

It can grind wood bedding pellets, small-sized chicken manure, and other materials smaller than 5 cm into 0.5–20 mm. The screen mesh is customizable.

Explore This Device

Hammer Mill

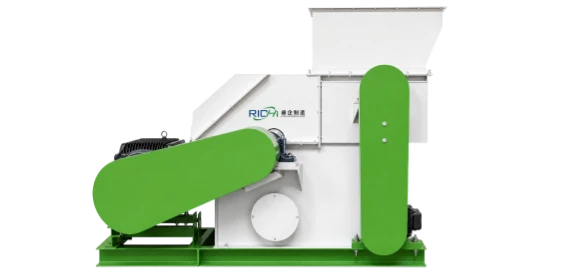

straw crusher

It is suitable for processing loose straw into straw powder ranging from 0.5 to 20 mm for pelletizing fertilizer pellets. The screen mesh is customizable.

Explore This Device

straw crusher

Mixing Equipment

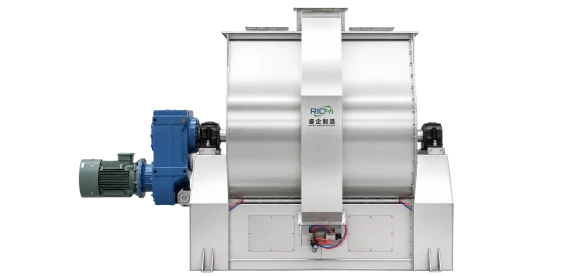

Paddle Mixer

Suitable for chicken manure materials with standard formulations. The double-layer paddles ensure stable mixing. Production capacity: 500–3,000 kg/batch.

Explore This Device

Single-Shaft Paddle Mixer

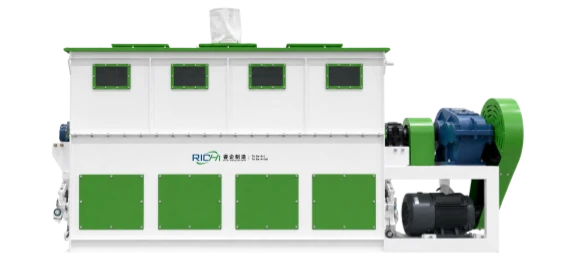

Screw-Belt Mixer

This equipment has a production capacity of 250–3,000 Kg/P and is available with either manual or pneumatic discharge.

Explore This Device

Double-Screw Ribbon Mixer

Drying Equipment

raw materials Dryer

It can dry high-moisture materials to the desired level. Available in single-layer and three-layer designs. The drying effect is adjustable.

Explore This Device

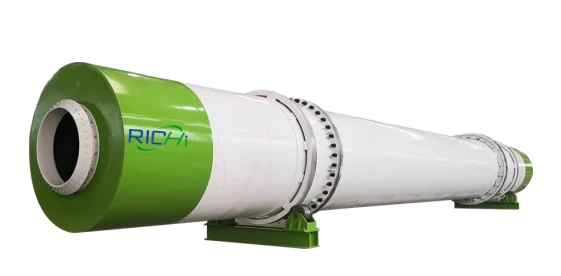

Drum Dryer

manure pellets Dryer

This equipment can install after the chicken manure pellet machine and serves to dry pellets. It achieves a drying efficiency increase of over 25%.

Explore This Device

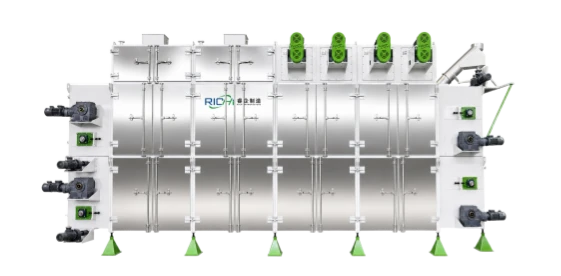

Belt Dryer

cooling Equipment

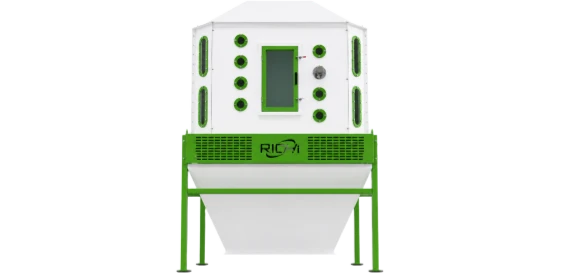

Counterflow Cooler

It rapidly cools the pellets to room temperature plus 3–5°C by using cold air. The cooling time is 6–15 minutes, which can be equipped with a material distribution device.

Explore This Device

Counterflow Cooler

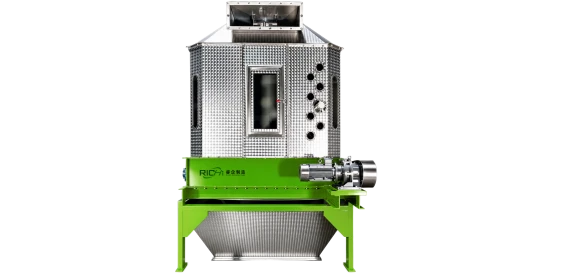

Stainless Steel Cooler

This model features a stainless steel body and is commonly used in high-budget production solutions. It offers superior resistance to high temperatures and corrosion.

Explore This Device

Stainless Steel Counterflow Cooler

screening Equipment

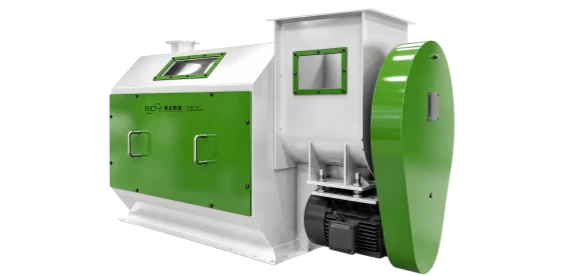

Powder Cleaning Screen

It removes impurities such as stones and sand from powdered materials, preventing equipment wear and ensuring the quality of chicken fertilizer pellets.

Explore This Device

Powder Cleaning Screen

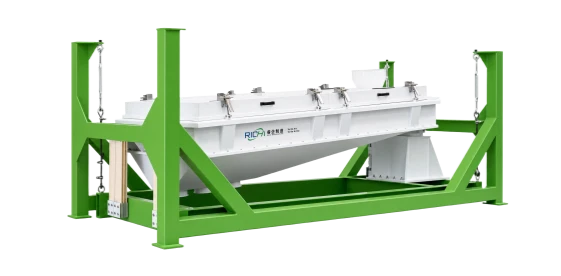

Pellet Vibrating Screen

This screening machine is primarily used for screening pellets and standardizing their size. It can also be used in the preliminary processing stage to screen pelleted rawmaterials.

Explore This Device

Pellet Vibrating Screen

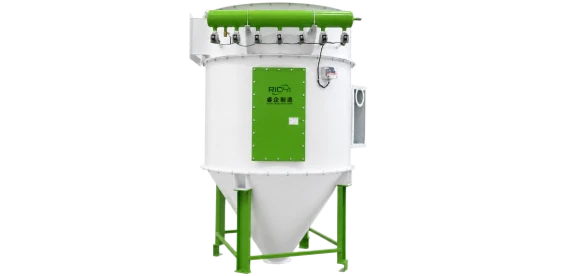

Pulse Dust Collector

This device can be installed in the required production sections to collect dust generated during the chicken manure pellets production process.

Explore This Device

Pulse Dust Collector

packaging Equipment

Automatic Bagging Scale

This system is designed for bagging powdered materials, pelleted materials, and premixes. The bagging speed ranges from 2 to 8 bags per minute and can be customized.

Explore This Device

Automatic Bagging Scale

Ton Bag Scale

It is specifically designed for packaging pellets and powder in big bags, capable of quantitative weighing and bagging. Bagging capacities range from 500 to 2,000 kg per bag.

Explore This Device

Ton Bag Scale
