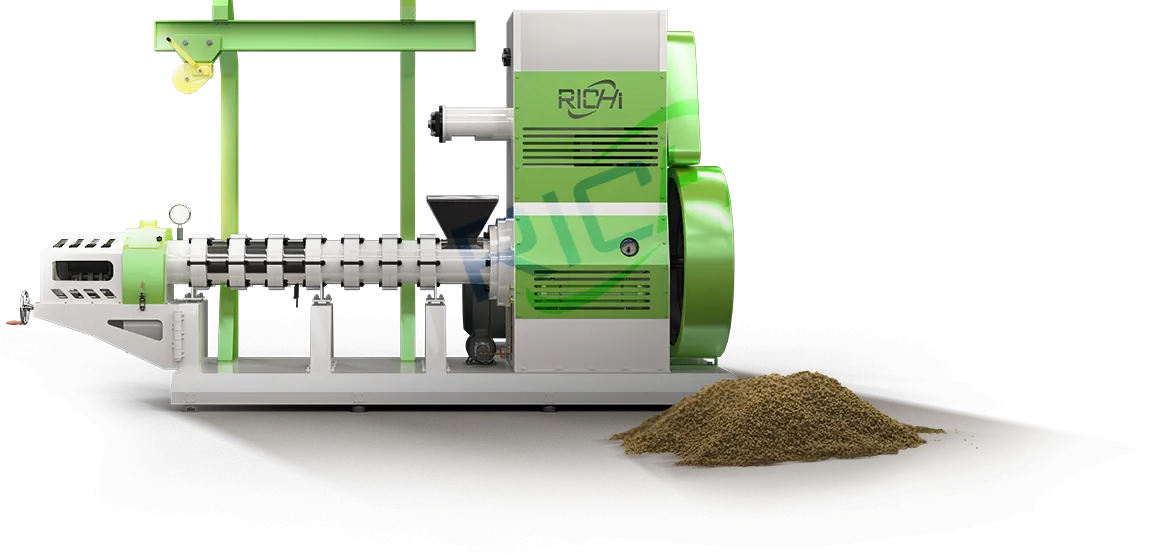

Dry Type Fish Feed Extruder
The dry type fish feed extruder is suitable for the production of floating and sinking fish feed at a capacity of 0.2–1.0 T/H. As a type of single-screw extruder, it can meet basic aquaculture feed requirements. With its simple structural design and low operating costs, it offers convenience to aquaculture farms and small-scale fish feed plants. We provide various model configurations and comprehensive fish feed production solutions.
Capacity
0.2-1.0 T/H
Power
37-90 KW
Low-Cost Production
This single screw extruder machine is specifically designed for small-scale fish feed production. Its low-capacity configuration meets the feed needs of aquaculture farms for their own use while reducing costs. For start-up feed plants, this equipment can help you enter the aquaculture feed market at a low cost.
The single-screw design requires less power and consumes less energy. The feed it produces is highly water-resistant, which helps protect water quality and reduce waste. In particular, floating fish feed can remain on the water’s surface for 12 hours without disintegrating. Feed extruded under high-temperature conditions is easier to digest and absorb.
Unlike wet-process fish feed extruders, this dry type fish feed extruder does not require an external steam supply. It is compatible with most aquafeed formulations and produces standardized pellets. Additionally, we offer twin screw fish feed extruder to meet the demand for high-capacity, high-quality feed production.

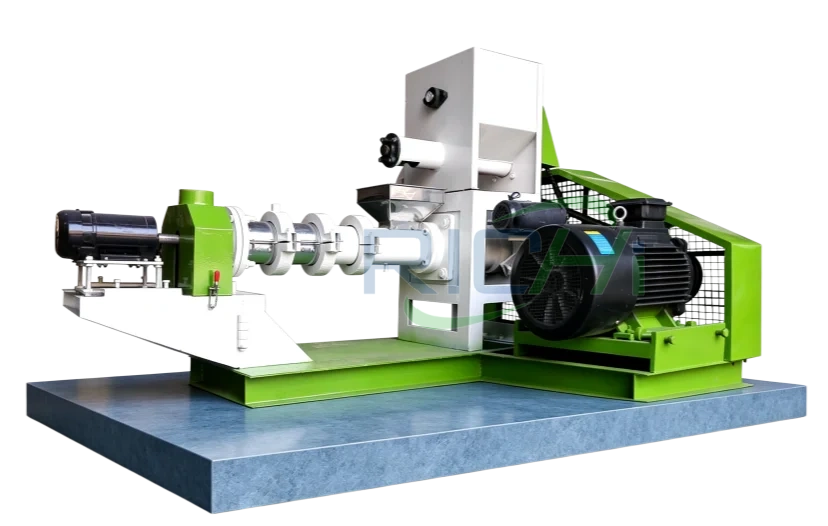

Dry fish feed making machine Structural Design
Featuring an advanced structural design, this machine consistently produces high-quality pellets. It is easy to operate, and its components are simple to install, disassemble, and remove. Each extruder is equipped with a Siemens industrial motor to ensure stable power output.All components are made of highly wear-resistant materials, helping you reduce operating costs.

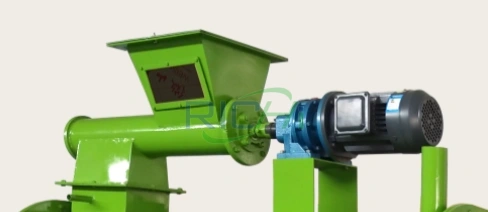

Feed Inlet
The dry type fish feed extruder is equipped with a feed screw that adapts to various raw material conditions to ensure smooth feeding. It is also fitted with a variable-frequency drive motor to control the feed rate. This ensures more uniform feeding and prevents machine jams.
Extrusion Die
We offer various die sizes capable of producing fish feed pellets ranging from 0.6 to 8.0 mm in diameter. The design is simple, making die replacement convenient. Additionally, a unique pressure-boosting die device is installed to ensure both feed output and quality.
Single Screw
Both the screw sleeve and the screw are made of alloy steel. They offer superior wear resistance and high-temperature resistance, ensuring a long service life. The resulting feed pellets have a uniform texture, stable structure, and good water resistance.
Cutting Device
This component features an internationally advanced pellet cutting design. It utilizes a soft-blade contact mechanism and stepless speed control, allowing you to produce fish feed pellets of any length. It also ensures a smooth pellet surface with minimal burrs.
Low Production Costs
The greatest advantage of the dry type fish feed extruder lies in its low production costs. It features a simple structural design and does not require a steam boiler. As a result, it can help you reduce some of your capital expenditures. For start-up feed plants and small-scale aquaculture farms, this equipment is the best solution for those on a tight budget.
Stable Output
Water resistance and structural stability are critical for fish feed. This device employs an advanced extrusion system and cutting mechanism to consistently produce high-quality fish feed with excellent water resistance. These pellets undergo high-temperature conditioning, making them easier to digest and absorb, thereby improving feeding performance.
Easy Maintenance
Addressing the concerns many producers have regarding equipment operation and maintenance, this device features a user-friendly design. It is simple to operate, allowing even those without professional experience to get started easily. All components are easy to remove and install, facilitating your future maintenance work.
Flexible Production
This dry fish feed extruder is highly versatile. It can be used in integrated aquaculture operations as well as in comprehensive production at aquatic feed plants. The feed is highly palatable and available in a variety of sizes, meeting the feeding needs of tilapia, carp, catfish, ornamental fish, and other aquatic species.
Dry Fish Feed Extrusion Machine Model Selection
| Model | DGP-90B | DGP-120B | DGP-160B |
| Main Motor Power (kW) | 37 | 55 | 90 |
| Feeding Power (kW) | 0.75 | 202 | 3 |
| Cutting Power (kW) | 0.55 | 1.1 | 1.5 |
| Screw Diameter (mm) | 90 | 120 | 160 |
| Overall Dimensions (mm) | 2100*1450*1350 | 2400*1950*1600 | 3100*2650*1800 |
| Capacity (T/H) | 0.2-0.4 | 0.5-0.6 | 0.8-1.0 |
The above outlines the basic specifications and production capacity of this extruder. It can meet the fish feed production needs of most customers. As RICHI’s technology continues to advance, we can offer even more configuration options. If you would like to learn more about the technical specifications of this dry type fish feed extruder, please feel free to contact us at any time.
Dry fish feed extrusion process
The extruder production process consists of four main stages: feeding, raw material expansion, extrusion molding, and cutting. The video below shows the dry type fish feed extruder in trial operation during an actual project. The freshly produced pellets are hot and have a soft, moist texture. If you require further cooling, screening, and packaging, we can provide corresponding equipment solutions.
01
Raw Material feeding
The raw materials fed into the extruder should be uniformly mixed powdered materials. They are smoothly fed into the extrusion chamber via the feed screw.
02
Raw Material Conditioning
At this stage, the material is further mixed as it is propelled by the screw. Under high-temperature compression and shear forces, they undergoes conditioning and expansion.
03
Pellet Formation
The conditioned material is pushed into the die. It passes through the die’s orifices to produce feed pellets of uniform diameter. Die sizes are selectable.
04
Finished Product Cutting
Rotating cutting blades cut the formed feed into pellets of uniform length. The cut surfaces are smooth and even. The cutting length is adjustable.
Feed Types Suitable for Dry Extruders
This extruder is capable of producing most types of fish feed. It can accommodate various feed formulations to produce both floating and sinking feeds, meeting the feeding needs of fish in different water layers. Additionally, the die and parameters can be adjusted to produce pellets of different sizes.
Floating Fish Feed (0.8–8.0 mm)
This is the most commonly produced feed type using a dry type fish feed extruder. Its high expansion effect ensures the feed remains afloat for up to 12 hours, reducing waste. This feed type is suitable for common fish species such as tilapia, carp, and catfish.
Sinking Fish Feed (1.5–8.0 mm)
It can also produce high-density sinking pellets. This is achieved by adjusting the feed formulation, die size, and extruder parameters. These pellets sink rapidly and exhibit high water resistance, making them suitable for fish feeding in the middle and lower water layers.
Ornamental Fish Feed (0.5–2.0 mm)
Many ornamental fish are typically small in size and have specific requirements regarding feed palatability and size. Examples include goldfish, koi, and tropical fish. You can achieve specific feed pellet sizes by changing the mold and adjusting the cutting parameters.
Fry Feed Pellets (0.3–1.5 mm)
This is a finely processed feed. Produced through high-temperature extrusion, it is easier to digest and absorb, promoting the survival and growth of young fish. For smaller-sized fish feed, we can provide a crusher to produce crushed feed ranging from 0.3 to 1.2 mm.
Complete Fish Feed Processing Line
We not only provide fish feed extruder machine, but also complete production line solutions. The following outlines the standard production process for this solution. To meet a wider range of production needs, we can offer customized process configurations and turnkey projects.
The production capacity of this solution ranges from 0.2-20.0 T/H and above. It can be configured with different types of extruder machines to produce various types of aquafeed. We have designed a variety of auxiliary equipment to adapt to your specific production needs. Whether for fish farms or aquafeed plants of any scale, we can provide a suitable fish feed production line solution.
Global Cases of Dry Fish Feed Extruders
This extruder has provided excellent service to fish farmers and feed producers worldwide. Below are some representative projects featuring this equipment. The specific configuration of each project varies significantly based on individual customer needs. Please feel free to contact us at any time to receive a customized equipment solution.

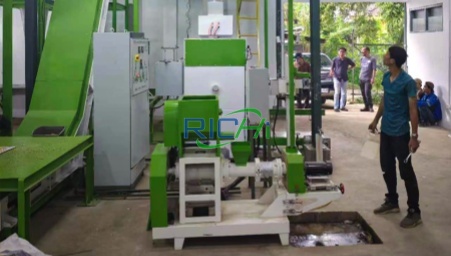

1.0 T/H Dry type Fish Feed Extruder for Sale to Vietnam
The customer sought to invest in a aqua feed production line to produce commercial freshwater fish feed. This line can meet the demand for both floating and sinking feed. We equipped it with multi-pore dies to produce different types of fish feed. The pellets are of high quality and highly palatable, making them popular among nearby fish farms.
0.5 T/H Dry Fish Feed Extrusion Machine for Sale to Bangladesh
This is a comprehensive aquatic feed pellet plant. We delivered a customized production line, including a sinking fish feed extruder machine and a feed pellet machine. It can simultaneously produce both sinking feed and animal feed. This compact extruder has successfully helped the client enter the fish feed market, offering excellent value for money.

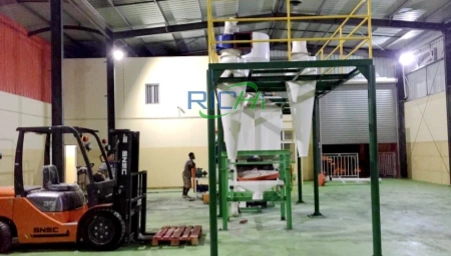

0.3–0.4 T/H Dry Fish Feed Making Machine for Sale to Kazakhstan
This is a small fish farm that primarily raises freshwater fish such as trout, carp, and sturgeon. The equipment we provided helped the client reduce feed costs. It is equipped with dies of various sizes, capable of producing fish feed with diameters ranging from 1 to 6 mm to meet the production needs of fish at different growth stages.

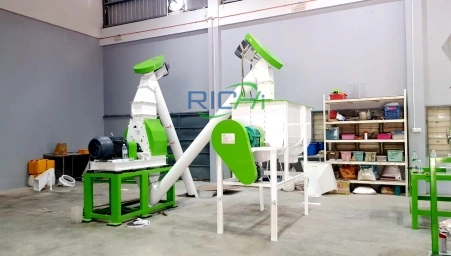

0.3 T/H Dry Fish feed extruder for sale to Indonesia
This is a small fish feed processing line. This floating fish feed extruder machine does not require a steam boiler and is easy to operate. This solution enables the customer to produce floating feed for tilapia, catfish, carp, and other species. It not only meets the customer’s own needs but also allows them to sell feed to nearby aquaculture farms.

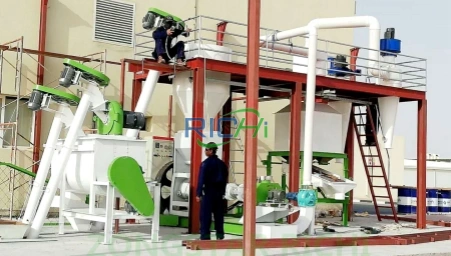

1.0 T/H Dry Fish Feed Extruder Machine for Sale to Brazil
The client is a large-scale aquaculture farm that required a cost-effective extruder to meet its daily feed needs. This solution not only includes the extruder but also incorporates grinding, mixing, and cooling processes. These components provide the client with a stable feed supply and reduce long-term aquaculture costs.

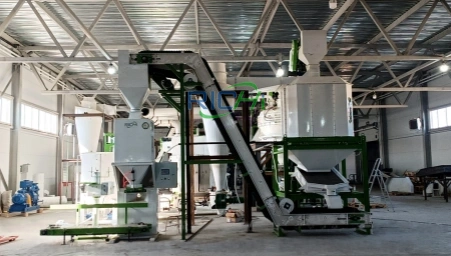

0.5–0.6 T/H dry type Fish feed extruder for sale to Egypt
We provided extruder for a tilapia farm. It adapts to different raw material formulations, enabling the customer to create customized feed recipes. This allows for the production of tilapia feed suitable for different growth stages. Raw materials include corn, soybean meal, fish meal, and others; we also supplied a mixer.
Auxiliary Equipment for Fish Feed Production
Fish feed production requires the coordination of auxiliary equipment. We have designed different equipment models for each production stage. The following are some of the most common types of auxiliary equipment for fish feed production. In actual projects, these devices work in conjunction with the dry type fish feed extruder to ensure comprehensive, stable, and efficient production results.
Hammer Mill for Feed Raw Materials
This crusher can process feed raw materials such as corn, soybeans, and wheat—with a size of less than 5 cm—into a powdery consistency ranging from 0.5 to 20 mm, thereby improving the forming rate.
Mixer for Feed Raw Materials
This mixer ensures uniform blending of various powdered materials and additives. It is suitable for premix production and is easy to use. We offer a selection of different models.
Pellet Feed Dryer
This unit is specifically designed for feed drying. It utilizes a mesh belt and hot air circulation to achieve gentle and uniform drying of feed. It can also be used for processing various types of dried meat.
Feed Pellet Crumbler
This equipment can further crush finished fish feed into smaller particles. Its crushing rate can reach 70%. The finished particle size ranges from 0.3-1.2 mm, making it particularly suitable for fish fry.
Why Choose RICH?
A Professional and Leading Manufacturer
RICHI MACHINERY is a leading global manufacturer specializing in twin screw extrusion machine, single screw extrusion machine, and other pellet machines. With over 30 years of manufacturing expertise and project experience spanning more than 140 countries and regions, we provide global customers with complete feed production line equipment, engineering design, installation, and turnkey project services.
For more efficient service, we have established a specialized service system. By combining pre-sales and after-sales support with both online and offline channels, we provide you with the most comprehensive equipment services.
From initial consultation to final production launch, RICHI provides a one-stop, end-to-end, standardized project service system that saves you time and effort throughout the process, ensuring the smooth implementation and stable operation of your pelletizing project.
Customized Solutions
Our engineers provide exclusive design solutions, precise capacity calculations, and detailed cost estimates. We tailor equipment to your specific needs based on raw materials, production capacity, and project objectives.
Complete Turnkey Project
A one-stop solution covering factory layout planning, on-site construction, export customs clearance, end-to-end logistics, safe delivery, equipment installation, commissioning, operator training, and after-sales service.
After-Sales Support
We offer a one-year warranty on the dry type fish feed extruder, genuine spare parts, technical guidance, lifetime equipment upgrades and maintenance. RICHI’s engineers ensure your long-term, stable production.
Frequently Asked Questions
Below are frequently asked questions about this dry fish feed extruder machine. Based on our many years of customer service experience, we understand the practical production needs and considerations in different countries and regions. Feel free to share your production requirements at any time to receive the fish feed production solution that best suits your needs.
–
What is the difference between a dry type fish feed extruder and a wet type fish feed extruder?
Although both are single-screw extruders, there are significant differences in their production methods. Dry-type extruders generate heat through screw friction to condition, expand, and extrude the material. This process does not require the addition of external steam. As a result, production costs are low, making it suitable for small-scale, routine production.
Wet-type extruders require a steam boiler to provide steam for material conditioning. This enhances production capacity and pellet quality. They are suitable for higher-quality fish feed requirements and commercial-scale production.
–
What raw materials can the dry fish feed making machine process?
This extruder is a versatile aquafeed processing machine. It can process most fish feed raw materials and accommodate various feed formulations, including common ingredients such as fish meal, corn meal, soybean meal, and wheat bran. You can adjust the raw material ratios as needed. It is important to note that these raw materials should be maintained at appropriate moisture levels and particle sizes to ensure optimal pellet quality.
–
How to produce fish feed pellets of different sizes?
Our extruder allows for the replacement of dies with different hole diameters. These dies range from 0.6 to 8.0 mm and above. For diverse feed requirements, we recommend configuring multiple sets of dies. If you need to produce fish feed of varying lengths, you can adjust the parameters of the cutting device. This extruder features stepless speed-adjustable cutting, capable of producing feed of any length while ensuring clean, smooth cuts.
–
How to select the right dry type fish feed extruder?
You can determine the production capacity range based on your daily feed requirements, thereby setting your hourly production target. This is the most straightforward selection method. We offer dry-process extruder models with capacities ranging from 0.2 to 1.0 T/H.
These are suitable for small-scale aquaculture farms, small fish feed plants, and similar operations. For specialized production needs, we also provide customized solutions. Alternatively, you can share your production requirements with us to receive the most suitable equipment recommendation.
