Poultry feed manufacturing plant

The poultry feed manufacturing plant is applicable to the processing and production of chicken, duck, goose, quail and other animal feeds. Our poultry feed equipment is customized according to customers’ needs.

Capacity: 1-100T/H
Common raw materials: corn, sorghum, rye, wheat, rice bran, inferior flour, barley, oats, cassava meal, cotton meal, peanut meal, bone meal, fish meal, etc.

Poultry Feed Manufacturing Plant

The features of the poultry feed manufacturing plant

  • It can be used to make chickens, geese, pigs, ducks, birds and other poultry feed pellets.
  • It can process all kinds of feed pellets, such as corn, soybean, sorghum, beans, fish meal, etc.
  • It has the advantages of low investment, high income, thorough crushing, uniform mixing, convenient adjustment of feed formula, and feed raw material ratio to meet various needs of customers.
  • The production line structure can be customized according to the workshop conditions.
  • Wide range of drawings and strong adaptability.
  • Avoid waste of raw materials, improve production efficiency and save labor costs.
  • Improve feeding efficiency and save time and cost.

In general, users choose different equipment and corresponding power according to their own production capacity and product types. RICHI Machinery specializes in equipment research and development for more than 25 years. If you want to know more, just send an inquiry to us.

The main equipment of the poultry feed production line

The rapid development of the breeding and feed industry greatly promoted the development and progress of poultry feed manufacturing plants. Equipment used to produce feed pellets such as feed grinder machine, feed mixer machine, and animal feed pellet machine has been more widely used, and breakthroughs have been made in technology.

Feed Grinder Machine

Feed grinder machine

This is the first step to ensure that all large raw materials are crushed into powder form. The poultry feed production line is equipped with a feed grinder machine specially used for crushing purposes. Corn flour, sorghum flour, wheat, beans, and soybean may be large particles, so this process must be adopted.

  • Model: SFSP
  • Capacity: 3-25T/H
  • Main power: 30-160KW
Model SFSP56*40 SFSP66*60 SFSP66*80 SFSP66*100 SFSP138*30E SFSP138*40E
Rotor diameter (mm) 560 660 660 660 1380 1380
Crushing chamber
width (mm)
400 600 800 1000 300 400
Rotating speed (rpm) 2980 2980 2980 2980 1140 1140
Conditioner layers one or two layers
Line speed of
hammers (m/s)
88 103 103 103 103 103
Power (kw) 30/37 55/75 90/110 132 110/132 132/160
Capacity (t/h) 3-6 5-9 8-13 12-16 15-20 18-25

Feed mixer machine

This is where all the ingredients are mixed. All ingredients are put in different proportions. With the help of the feed mixer machine, the powder is mixed in different proportions to form a mixture. The mixer machine is equipped with a large-section return air pipe to reduce dust and prevent materials from residue.

  • Model: SLHJ
  • Main power: 11-55KW
Feed Mixer Machines
Motor connection Direct connection
Material Carbon steel Stainless steel Carbon steel Stainless steel Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
Main Motor
Power (kw)
11 11 22 22 22 30 30 37 55
Mixing amount per
batch (kg/batch)
500 500 1000 1000 1000 1500 2000 2000 3000
Effective volume (m³) 1 1 2 2 2 3 4 4 6
Feed Pellet Machine For Sale

Feed pellet machine for sale

This is to press the feed and form pellets. The representative model is the SZLH series poultry feed pellet making machine. It can make the granules into uniform size to ensure that it provides the required nutrients and avoid waste in the feeding process. SZLH series ring die feed pellet making machine is widely used in poultry feed production lines and other animal feed plants.

  • Model: SZLH
  • Capacity: 1-42T/H
  • Main power: 22-315KW
Model SZLH250 SZLH320 SZLH350 SZLH420 SZLH508 SZLH558 SZLH678 SZLH768 SZLH858
Capacity (T/H) 1-2 3-4 5-7 8-12 10-18 15-25 20-30 25-40 25-42
Main Motor
Power (kw)
22 37 55 110 160 180/200 220/250 280/315 280/315
Feeder Motor
Power (kw)
0.75 1.5 1.5 1.5 2.2 2.2 2.2 2.2 2.2
Conditioner layers one or two layers
Power (kw)
1.5 2.2 3 7.5 11 11 11 11 15
Ring Die
Compression Ratio
Dia.of Ring Die (mm) 250 320 350 420 508 558 678 768 858
Number of
pressing rollers
Final Pellet (mm) 2-12

Cooling machine

After crushing, mixing, and granulation, the next process is cooling. The cooler used here is the SKLN series counterflow cooling machine. The cooling machine has a small volume and convenient transportation and installation. After installing the cooling machine, the pellets pass through the cooling area and their temperature drops to about room temperature.

  • Model: SKLN
  • Capacity: 1.5-18T/H
  • Main power: 0.75-1.5KW
Cooling Machine
Model SKLN11*11 SKLN14*14 SKLN17*17 SKLN20*20 SKLN24*24
Capacity (T/H) 1.5-2 3-5 5-8 9-12 13-18
Main Motor
Power (kw)
0.75 1.5 1.5 1.5 1.5
Cooling time (min) 6-15
Suction air (m³/h) 750
Temperature of material
after cooling
room temperature+3-5℃

In general, users choose different equipment and corresponding power according to their own production capacity and product types. RICHI Machinery specializes in equipment research and development for more than 25 years. If you want to know more, just send an inquiry to us.

Various types of poultry feed manufacturing plant

Feed processing equipment is usually selected according to the production scale, production variety, and production process. As a result, different animal feed pellets often use different poultry feed production line equipment.

Chicken Feed Manufacturing Plant

Chicken feed manufacturing plant

Capacity: 1-100T/H
Suitable for baby chickens, broilers, and hens feed pellet production.

Duck Feed Processing Plant

Duck feed processing plant

Capacity: 1-100T/H
It is suitable for the production of duck feed pellets of 2-12mm.

Goose Feed Production Line

Goose feed production line

Capacity: 1-100T/H
RICHI can provide you with 1-100T/H goose feed production lines.

Pigeon Feed Pellet Plant

Pigeon feed pellet plant

Capacity: 1-100T/H
It is suitable for the production of varieties of bird feed pellets.

The working process of the poultry feed production line

The poultry feed manufacturing plant mainly includes raw material receiving and cleaning, crushing, batching and mixing, pelletizing, cooling, screening, and finished product packaging systems. According to the specific needs of customers, RICHI Machinery can design a complete set of poultry feed production lines suitable for poultry animals.

poultry feed pellet production line

Crushing Process

The raw materials are fed into the feed grinder machine and crushed into powdery raw materials, and then distributed to each batching bin through the conveyor. The main equipment is the feed grinder machine. The purpose of crushing is to improve the utilization rate of animal feed, increase the contact area of digestive enzymes to raw materials, and reduce chewing energy consumption during animal feeding. The crushed raw materials are easy to mature in the granulating and tempering stage, and can greatly reduce the power consumption, which can improve the working efficiency of the subsequent process.

crushing system

Mixing process

Evenly mix the raw materials weighed by the batching scale. Its core equipment is the feed mixer machine. The mixing shall be well controlled, and the uniformity shall gradually reach the appropriate uniformity with the increase of mixing time. However, if the mixing time is extended, the raw materials will be stratified. Avoid excessive mixing, and release the product before the proper mixing time is reached, so as to complete mixing during transportation.

Batching And Mixing System

Pelletizing process

The mixed powdered feed is processed into pellet feed. Feed granulation is easy to digest. Granulation can also improve the density of granular materials. The feed density is higher through the extrusion of the feed pellet machine, thus improving the storage capacity of the silo. It can also kill toxins in raw materials through high temperatures so that the feed pellets are safer for animals.

pelletizing process of poultry feed manufacturing plant

Cooling and screening process

In the process of granulation, due to high-temperature and humid steam and the extrusion of materials, a large amount of heat is generated, which makes the moisture content of the feed pellets reach 16%-18% when it just comes out of the feed pellet machine, and the temperature reaches 75-85℃. Under this condition, the feed pellets are easy to be deformed and break, and will also produce adhesion and mildew during storage. The moisture content must be reduced to about 13-15%, and the temperature must be reduced to about room temperature, which requires cooling.

After the powders are pelletized, some unqualified materials such as powder clots will be produced. Therefore, the feed pellets need to be screened into products with neat particles and uniform size.

Cooling And Screening System

The finished product packaging process

This is the process of weighing, bagging, and sealing the finished feed pellets with automatic packaging equipment. Generally, the finished products are delivered in two forms: bulk and bagged. Due to the limitations of transportation equipment, bagged products are mostly used. The automatic packaging system can weigh different specifications of feed according to customer needs.

The Finished Product Packaging Process

In general, users choose different equipment and corresponding power according to their own production capacity and product types. RICHI Machinery specializes in equipment research and development for more than 25 years. If you want to know more, just send an inquiry to us.

The cases of the poultry feed manufacturing plant

The animal feed pellet mills provided by RICHI Machinery are CE/ISO/BV certificated and sold well all over the world. It is favored by the majority of users. RICHI Machinery has done more than 2000 projects in more than 120 countries. We know how to manage technical risks and offer you unique solutions.

Poultry Feed Manufacturing Plant In Tanzania


Poultry feed manufacturing plant in Tanzania

  • Date: November 2017
  • Capacity: 1-2T/H
  • Raw materials: corn, wheat, and other grain
  • Finished pellet size: 1-2mm baby chicken feed pellets
  • Workshop size: 13m*4m*4m (L*W*H)
  • Operate workers: 3 persons
The Chicken Feed Manufacturing Plant In New Zealand

New Zealand

The chicken feed manufacturing plant in New Zealand

  • Project name: broiler feed plant
  • Date: May 21st, 2020
  • Capacity: 3-5T/H
  • Raw materials: wheat, soya meal, and sorghum
  • Feed pellet size: 2-5mm
  • Workshop size: 12m*9.5m*11m (L*W*H)
Full Automatic Poultry Feed Production Line


Full automatic poultry feed production line

  • Capacity: 10-15T/H
  • Date: July 1st, 2019
  • Raw materials: wheat, sorghum, and other grain
  • Finished pellet size: poultry mash feed and 2-6mm feed pellets
  • Workshop size: 35m*20m*25m (L*W*H)
The Animal Feed Factory Project

Saudi Arabia

The animal feed factory project

  • Date: March 30th, 2018
  • Capacity: 15-16T/H
  • Raw materials: grass, lucerne, soybean meal, corn, etc
  • Finished pellet size: 1-8mm cattle and chicken feed
  • Workshop size: 16m*8m*12m (L*W*H)

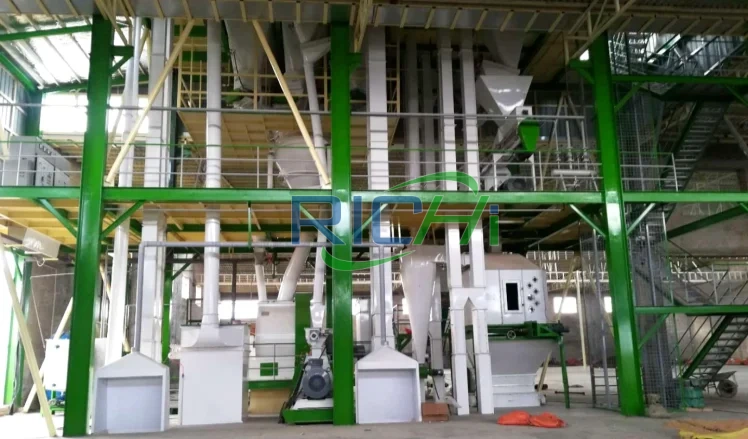

The Chicken Feed Production Line In Afghanistan


The chicken feed production line in Afghanistan

  • Date: Nov 18th, 2017
  • Capacity: 10-15T/H
  • Raw materials: corn, wheat, soybean, and other grain
  • Feed pellet size: 2-6mm chicken pellets
  • Workshop size: 12m*12m*25m (L*W*H)
Complete Chicken Feed Manufacturing Plant


Complete chicken feed manufacturing plant

  • Date: December 2018
  • Capacity: 30-40T/H
  • Raw materials: corn, soybean meal, rapeseed meal, fish meal, distillers grains
  • Finished pellet size: 2-4mm pellets and premix powder
contact background

rICHI machinery

With more than 25 years of experience in the industry, RICHI Machinery can provide customers with different recommendations. RICHI pellet machine is sold in many countries and regions in the world, such as Europe, Asia, Oceania, North America, South America, the Middle East, and Africa.

RICHI Machinery has a perfect quality control system. We will assign special personnel to inspect, so as to eliminate potential quality hazards. We only want to prevent unqualified machinery from leaving our factory. We will test all the equipment before the delivery of products so that each of our customers can use our best equipment and maximize the customers’ interests.

FAQ of poultry feed manufacturing plant


Is poultry feed manufacturing profitable?

Due to the large demand for high-quality poultry feed, investing in a poultry feed manufacturing plant has always been a profitable business, which has developed into the international market of many countries from a small scale. The United Kingdom, Brazil, Philippines, Greece, the United States, Thailand, and even South American countries have been large-scale producers of poultry feed for a long time.

poultry feed pellets

This is a business open to business owners, especially those who live near poultry farms or agricultural communities. All you need is full set equipment of poultry feed production line.

Feed pellet processing machinery will have high-temperature sterilization and disinfection during working, so as to ensure the safety of the poultry diet. Therefore, the advantages of investing in a poultry feed production line are obvious.

RICHI complete chicken feed manufacturing plant

The purposes of conditioning

Conditioning is a key link in the production of granular materials, and the effect of conditioning directly determines the quality of feed pellets. After the powder is discharged from the feed mixer machine and before entering the pelletizing chamber of the feed pellet machine, the usual way to treat the powder is to inject steam into the conditioner to mix the feed and steam.

the conditioner

The functions of conditioning are as follows:

  • Make starch gelatinize and improve the digestibility of feed.
  • The conditioned feed has a certain adhesiveness, which is conducive to particle forming.
  • It can soften the feed and play a lubricating role to improve the life of the ring die.
  • Kill bacteria that are dangerous to animals.
  • Improve the moisture content of pellets.

Conditioning can improve the granulation of materials, improve output, save energy consumption of granulation, and improve the service life of the feed pellet making machine.


How to set up a poultry feed factory?

Before starting your poultry feed manufacturing plant, you should make a plan to make it work. A well-thought-out business plan will help you make the right decisions. For example, what is the capacity of your poultry feed production line? How do you plan to purchase raw materials?

01 Find a good place for your poultry feed production line

If you are considering a poultry feed processing business, you need to consider the location of the factory. Choose a good site for poultry feed processing plants. Poultry feed processing plants need to be built in specific locations. It is most prudent to place the poultry feed processing plant where there are many poultry farms because your finished products will have a ready market. Besides, you need to check whether there is a water supply near the poultry farm. You will need to ensure that there is enough space so that you can expand your business.

02 Purchase of poultry feed plant equipment or machinery

If you don’t know where to get poultry feed production machinery, you can do some research online to find the best supplier of poultry feed equipment. This will help you determine which supplier will provide the most favorable price for your poultry feed production line. Once you find the supplier you want to cooperate with, you can ask about the best poultry feed manufacturing plant you need.
