+86 14769960951Animal Feed Pellet Making Machine
Our animal feed pellet making machine can produce a wide variety of animal feeds. By incorporating different numbers of conditioners, it meets the nutritional needs of livestock, poultry, ruminants, and aquatic animals. The equipment features high pellet formation rates and output per unit, ensuring efficient and energy-saving production. Its production capacity ranges from 1 to 40 T/H and above. We also offer customized solutions and complete production line configurations.
RICHI MACHINERY

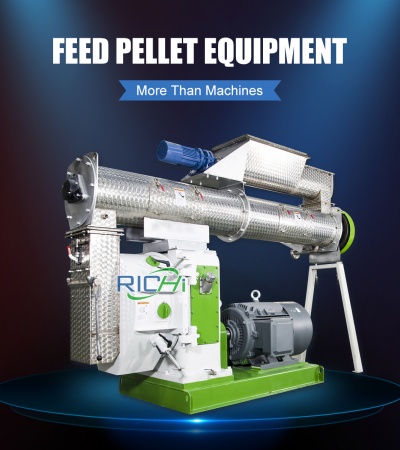

What Is An animal feed Pellet making machine?
This machine is an industrial-grade ring-die pelletizer. Unlike flat-die pelletizers, it is equipped with an innovative ring die, which enhances feed quality and increases output per unit. It thoroughly sterilizes and gelatinizes the material through high-temperature conditioning, followed by high-intensity extrusion molding. This process produces pellets with diameters ranging from 2 to 12 mm for poultry feed, livestock feed, ruminant feed, fish feed, and shrimp feed.
For enhanced production efficiency, the machine is equipped with a variable-frequency screw feeder. Wear-prone components such as the ring die and press rollers are made of alloy steel materials, offering superior wear resistance and extended service life. This equipment increases unit production capacity by 15% while reducing energy consumption per unit by 20%. Consequently, it is suitable for livestock farms, ranches, and feed plants of all sizes.

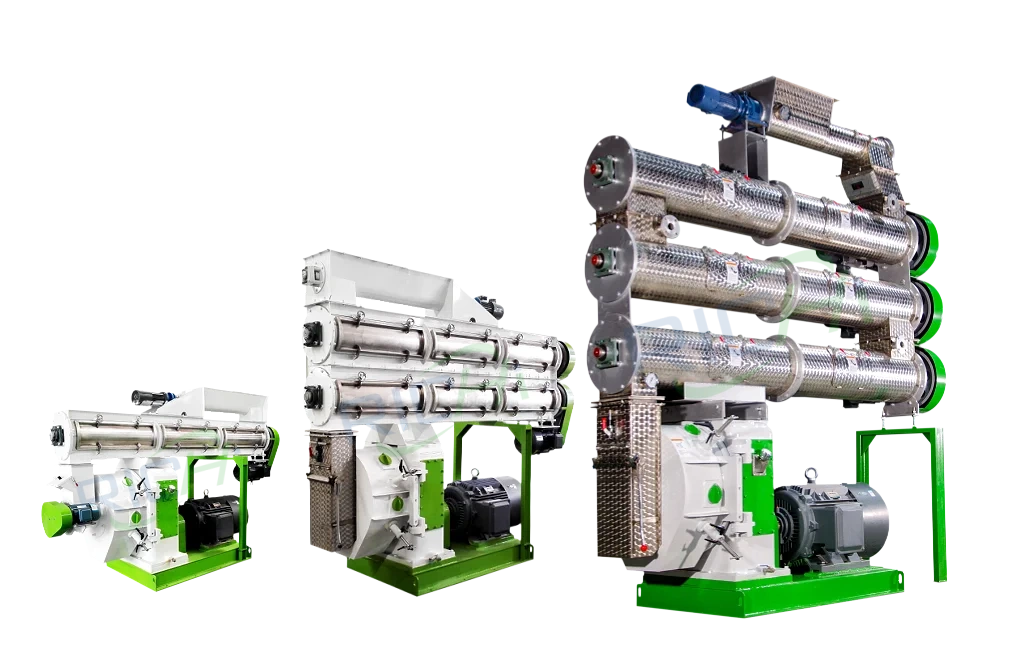

Different Types of animal feed pellet making machine
Based on the feed requirements and feeding habits of different animals, we have categorized our feed machines accordingly. Each model features specific technical specifications designed to accommodate varying degrees of conditioning, pellet size, and hardness. This ensures that the nutritional content of each feed is preserved, while enhancing palatability and digestibility.

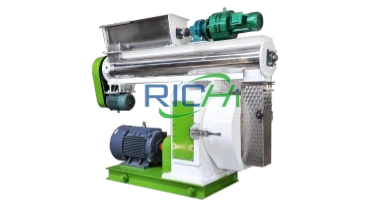

Poultry Feed Pellet Mill
This machine is designed for producing pellet feed for various poultry species, including chickens, ducks, geese, and other birds. High-temperature conditioning ensures the feed is clean and fully cooked, enhancing palatability and digestibility. Feed for young poultry requires a two-stage conditioning unit.

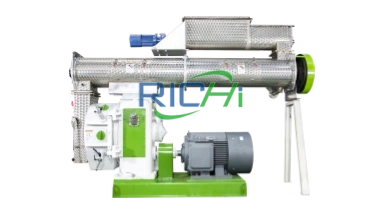

Livestock Feed Pellet Mill
This model is specifically designed for the production of feed for pigs, beef cattle, sheep, horses, and other animals. It features a high-performance extrusion system that improves raw material utilization and reduces waste. The ring die supports a variety of feed formulations and produces feed pellets with excellent palatability.

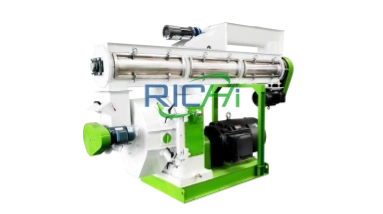

grass Feed Pellet Mill
This grass pellet mill is designed for forage-based feed and ideal for herbivore feed production. Equipped with a de-arching feeder and a forced feeding mechanism, it handles high-fiber, lightweight materials smoothly, ensuring uninterrupted production. Consequently, its ring die is more wear-resistant.

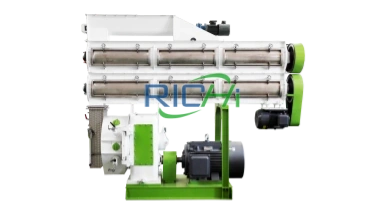

Ruminant Feed Pellet Mill
It is specifically designed for ruminant feed, including dairy cattle, beef cattle, sheep, and deer. Its specially designed rollers and ring die can process a variety of feed formulations containing high-fiber ingredients. The resulting pellets have a moderate texture tailored to the feeding habits of ruminants.

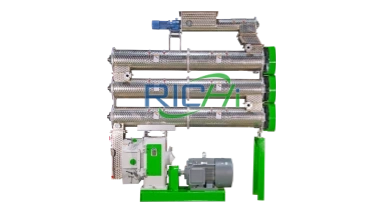

Aquaculture Feed Pellet Mill
Due to the precision needs of aquaculture feed, this pelletizer features stricter control over pellet size and density. It is suitable for sinking fish feed and shrimp feed production. By equipped with 2–3 layers of conditioners, it ensures superior conditioning results. The feed meets excellent water resistance.
Floating Fish Feed Pellet Machine
It produces nutritionally balanced, floating aquatic feed. Through a high-temperature and pressure, the materials can transform into highly water-resistant pellets, thereby increasing fish feed intake. Depending on the target output, it can be configured with a single-stage or two-stage screw.
Model Specifications for pellet maker machine animal feed
Each type of animal feed pellet making machine is available in multiple capacity models. This allows us to better meet the needs of a wider range of clients. The following are the standard specifications and capacity configurations. We also offer customized equipment solutions. As RICHI’s technology continues to advance, the specifications for this series of equipment will continue to expand.
Model Specifications for animal feed pellet machine
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 | SZLH558 | SZLH678 | SZLH768 |
| Main Motor Power(kw) | 22 | 37 | 55 | 110 | 160 | 185 | 250 | 315 |
| Feeding Device Power (kw) | 1.1 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner power (kW) | 1.5 | 4 | 4 | 7.5 | 7.5 | 11 | 11 | 11 |
| Inner diameter of ring die (mm) | 250 | 320 | 350 | 420 | 508 | 558 | 673 | 762 |
| Finished Pellet Diameter (mm) | 2~12 | |||||||
| Capacity (T/H） | 1.0-1.5 | 3-4 | 5-6 | 10-12 | 15-16 | 20-22 | 30-33 | 38-40 |
Twin-Screw Floating Fish Feed Pellet Making Machine
| Model | SPHS75x2 | SPHS120*2 | SPHS120*2 | SPHS150*2 | SPHS185*2 |
| Main Motor Power (kW) | 55 | 90 | 110 | 200 | 355 |
| Screw Diameter (mm) | 75 | 120 | 120 | 150 | 185 |
| Feeder Power (kW) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power (kW) | 7.5 | 11 | 11 | 11 | 11 |
| Differential Conditioner Power (kW) | 11 | 11 | 11 | 15 | 15 |
| Capacity (T/H) | 0.5-1.0 | 1.5-2.0 | 3.0-4.0 | 5.0-6.0 | 10-12 |
Single-Screw Floating Fish Feed Pellet Making Machine
| Model | DGP-90B | DGP-120B | DGP-160B | DSP90-B | DSP135-B |
| Main Motor Power (kW) | 37 | 55 | 90 | 37 | 75 |
| Feeding Power (kW) | 0.75 | 202 | 3 | 7.5 | 7.5 |
| Cutting Power (kW) | 0.55 | 1.1 | 1.5 | 1.1 | 1.5 |
| Screw Diameter (mm) | 90 | 120 | 160 | 90 | 135 |
| Overall Dimensions (mm) | 2100*1450*1350 | 2400*1950*1600 | 3100*2650*1800 | 2600*1600*1900 | 3750*1980*1950 |
| Capacity (T/H) | 0.2-0.4 | 0.5-0.6 | 0.8-1.0 | 0.5-0.6 | 0.8-1.0 |
Video Of animal feed Pellet Mill
The following shows the actual operation of different types of animal feed pellet making machine. This includes pre-shipment test runs and post-installation commissioning. Although each machine is designed for different feed applications, they all deliver the same highly efficient and flawless production results.

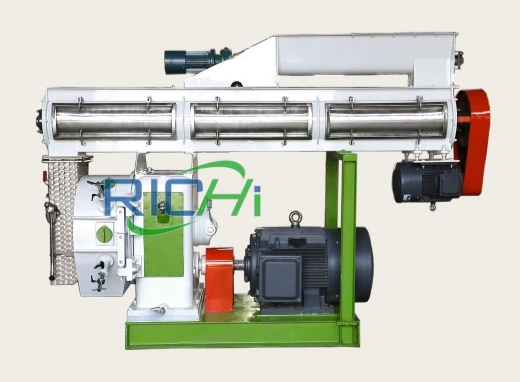

Innovative Structural Design
Our animal feed pellet making machine offers multiple structural advantages. It is easy to operate and enhances production efficiency in many ways. Each unit is equipped with a Siemens Bede motor, providing a stable and efficient power source.
Feed Inlet
The variable-frequency impeller feeder driven by a dedicated motor. It adapts to different material conditions, regulates the feeding speed and flow, helping you avoid material jams.
Conditioner
It is constructed of 304 stainless steel and is designed to withstand high-temperature steam. The internal paddles promote material conditioning, ensuring feed quality and digestibility.
Ring Die
The ring die is made of 40CrMnTi alloy steel, which offers greater wear resistance. The holes are arranged in an optimal pattern, which improves feed yield per unit and enhances the forming effect.
Dual Rollers
The dual-roller design enhances the compression effect, thereby promoting pellet formation. To improve wear resistance, the roller housing is also made of 40CrMnTi steel.
Cutting Unit
It can adjust the distance between the internal blades and the ring die to produce feed pellets of varying lengths. Unlike wood pellet machine, it are equipped with dual sets of blades.
Material Deflector
This device is located below the conditioner. It regulates the flow of the conditioned material, allowing for easy inspection of the conditioning process at any time, thereby ensuring feed quality.
Global Cases
Thanks to advanced production technology and high energy efficiency, this series of equipment has successfully earned the trust of customers worldwide. Below are some real-world feed pelletizer projects. Whether it’s a single aniaml feed pellet making machine or a complete production line solution, they deliver consistent output and provide customers with a high return on investment.

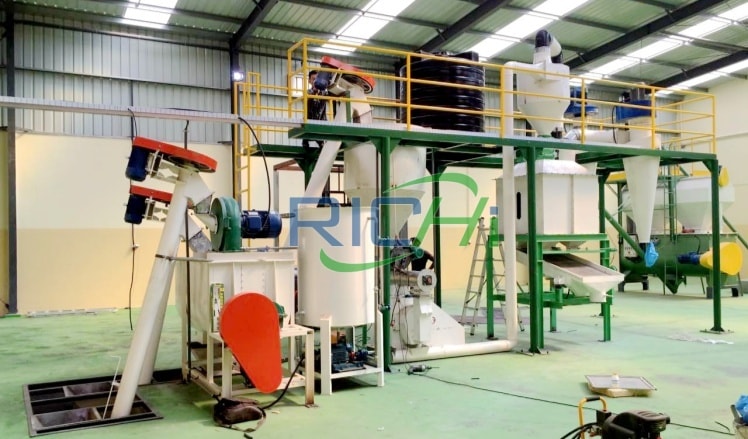

2 T/H Poultry Feed Pellet Mill for Sale in Cape Verde
Project Overview: The client is a poultry feed manufacturing plant specializing in the production of poultry feed products. We provided them with a complete production system, including a crusher, mixer, chicken feed pellet making machine, cooling system, and screening system. The production line was quickly put into operation and became profitable. The quality of the feed far exceeds market standards.

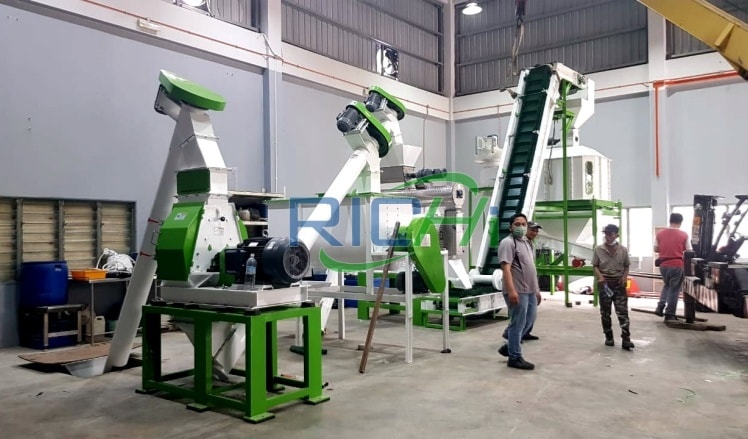

3-4 T/H Livestock Feed Production Line for Sale in Malaysia
Project Overview: The customer requires a production system capable of producing feed with a diameter of 2–6 mm, adaptable to the feeding needs of various animals. We have equipped this animal feed pellet mill with a single-layer conditioner and multiple ring dies. This system can accommodate raw materials in varying proportions, ensuring the production of high-quality livestock feed.

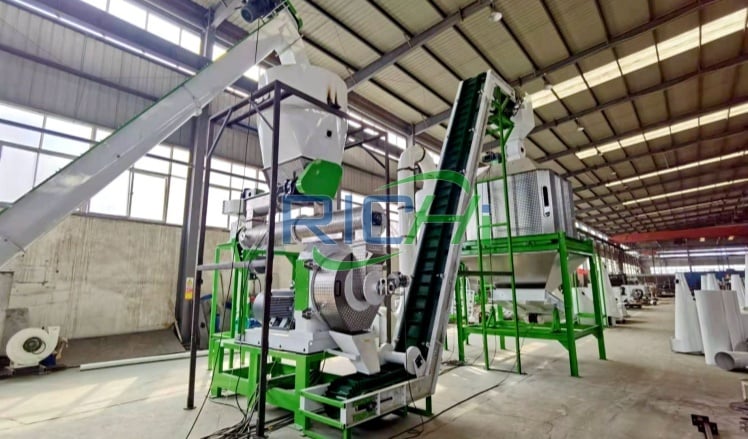

3 T/H grass Pellet Mill for Sale in Argentina
Project Overview: This is a complete ruminant feed pellet production line, for which we provided a forage shredder, an alfalfa pellet mill, and more. The project is primarily designed to produce cattle feed with a high forage content. This pellet mill features an anti-caking feeder and a forced feeding system, meeting requirements for high efficiency and energy savings.

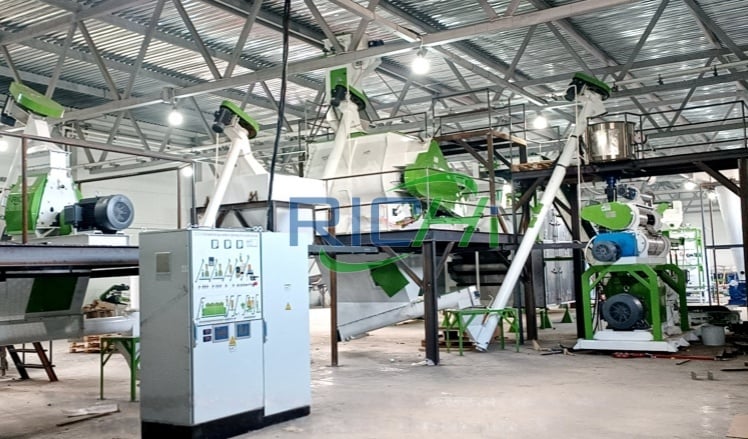

2 T/H Twin-screw fish feed extruder for Sale in Russia
Project Overview: This project involves the construction of an automated fish feed plant. The fish feed pellet making machine is equipped with twin-screw to meet the high-conditioning requirements of fish feed. The feed quality has received positive feedback from the client. The production equipment we provide features a high level of automation, enabling continuous and efficient operation while reducing labor costs.

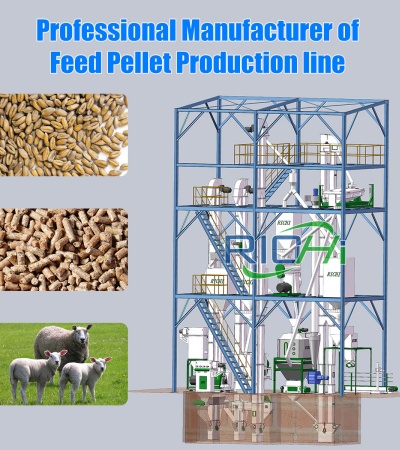

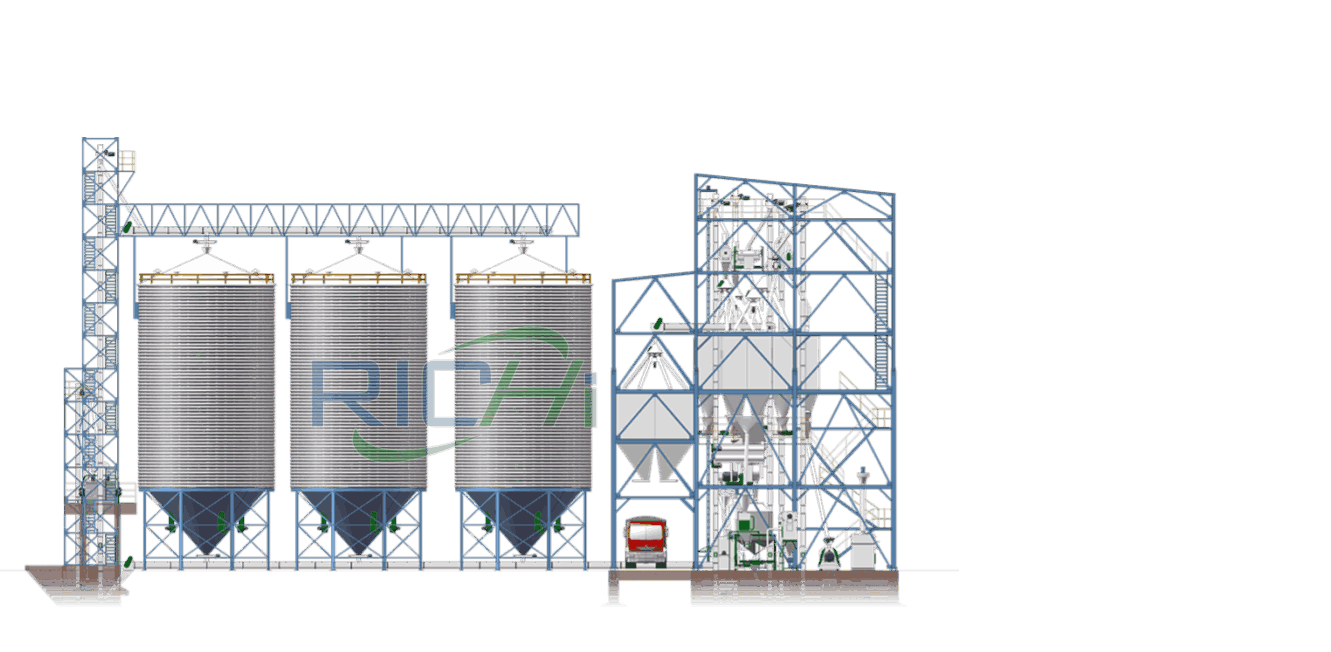

Complete animal feed Pellet Production line
We not only offer advanced animal feed pellet making machine, but also complete animal feed production line. These systems meet production capacity requirements ranging from 1 to 60 T/H and beyond. With a scientifically designed process layout, they deliver higher production efficiency. We also provide customized and turnkey solutions.
Auxiliary Equipment for animal feed Pellet Production
RICHI Manufacturer operates a large-scale equipment manufacturing facility, which can meet various needs for pellet production equipment. Below are auxiliary devices for animal feed production. Like our animal feed pellet making machine, they offer the advantages of high efficiency and convenience.

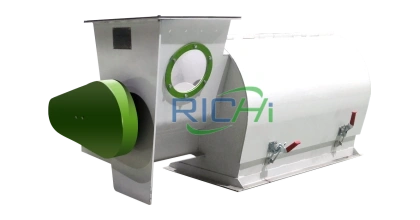

Powder Cleaning Screen
Before raw materials are crushed, it serves to remove impurities such as metal, sand, gravel, and plastic. This helps prevent equipment wear and tear while ensuring feed quality and cleanliness.
Hammer Mill
A hammer mill grinds small-sized corn, wheat, soybeans, and other grain crops into fine powder. This makes them easier to gelatinize and pelletize, ensuring a uniform feed pellet structure.

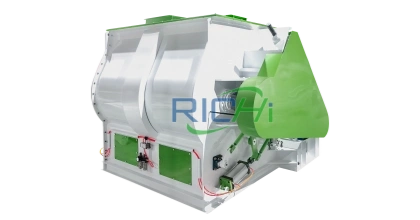

Feed Mixer
Through an efficient mixing system, it thoroughly blends powdered ingredients, premixes, and additives, thereby ensuring the nutritional integrity of every feed pellet.
Pellet Cooler Machine
A pellet cooler reduces the temperature and moisture of freshly made pellets, improving hardness and storage stability. Its octagonal structure prevents the pellets from breaking.
Vibrating Screen
It is a vibrating screen, which can removes dust, fines, and unformed particles, ensuring consistent pellet quality. We can customize screen mesh in various sizes.
Packaging System
The packaging system automatically weighs, fills, and seals pellet bags, improving efficiency and accuracy in commercial distribution. You can choose from different packaging options
Frequently Asked Questions
Since our pellet making machine for animal feed includes a wide range of models, we have compiled the following answers to frequently asked questions. Please feel free to contact us at any time with questions regarding this feed production equipment. With our extensive experience in customer service, we are committed to providing you with the best possible production experience.
How to select a suitable animal feed pellet making machine?
+
We offer feed pelletizers suitable for different animal species, so you can start by selecting one based on the type of feed. After that, you need to consider the specific type of raw material. For example, livestock feed pelletizers are generally used for producing concentrated feed for cattle, while forage pelletizers are chosen for high-fiber roughage. They are designed with different specific applications in mind.
For different pelletizer sizes, we will provide you with ring dies of varying pore sizes. For small-scale farms and feed mills, we offer compact feed pelletizers with low initial investment costs. For large-scale feed mills, while prioritizing high output, you may also consider investing in a production line solution. This approach will yield a more favorable return on investment.
What are the raw material requirements for an animal feed pelletizer?
+
The ideal moisture content for raw materials is 15–18%, with a particle size not exceeding 3–5 mm. Common raw materials used in animal feed production include soybean meal, corn, and various other grains, as well as coarse-fiber materials such as grass meal and wheat bran. The processing steps for these materials generally differ.
For example, grain-based raw materials are smaller in size and can be processed directly by a hammer mill. Since they have low moisture content, drying is generally not required. For large-sized, high-moisture raw materials such as forage and straw, they require bale breaking, crushing, and drying.
Is this animal feed pellet making machine suitable for small-scale farms?
+
Our feed pelletizers are available in a variety of models with different production capacities to meet the needs of farms of all sizes. For small- to medium-sized farms, we recommend our SZLH250 pelletizer, which has a capacity of 1–2 T/H. This machine has a small footprint, low investment cost, and is easy to operate. It can accommodate feed formulations with varying ingredient ratios and offers high efficiency, energy savings, and wear resistance, helping to reduce production costs.
Is pelleted feed better than powdered feed?
+
Compared to powdered feed, pelleted feed is easier to transport and store. It has a wider range of applications and can meet the balanced nutritional needs of various animals. Our equipment can produce feed pellets in a variety of sizes to accommodate the feeding habits of different animals. Additionally, the high-temperature conditioning and sterilization processes performed by this equipment make the feed easier to digest and absorb, promoting animal health.
How can you obtain an animal feed pelletizer price list?
+
The animal feed pelletizer price depends on its production capacity, configuration, and intended use. Prices vary significantly depending on the level of automation. Therefore, the price of this equipment is not fixed. If you would like an accurate quote, please feel free to contact us at any time and provide your specific production requirements. We will provide you with the most suitable animal feed pelletizer solution.
