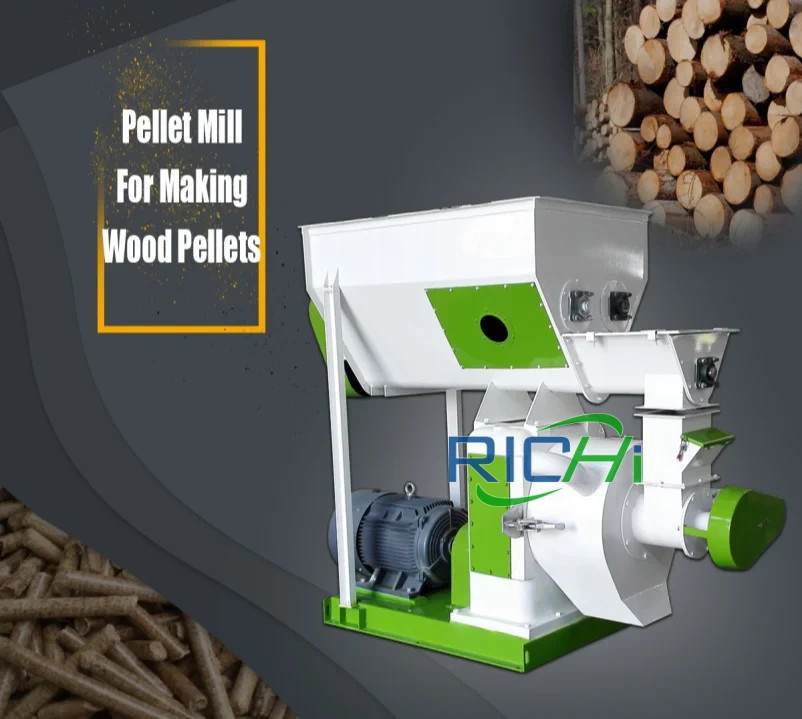

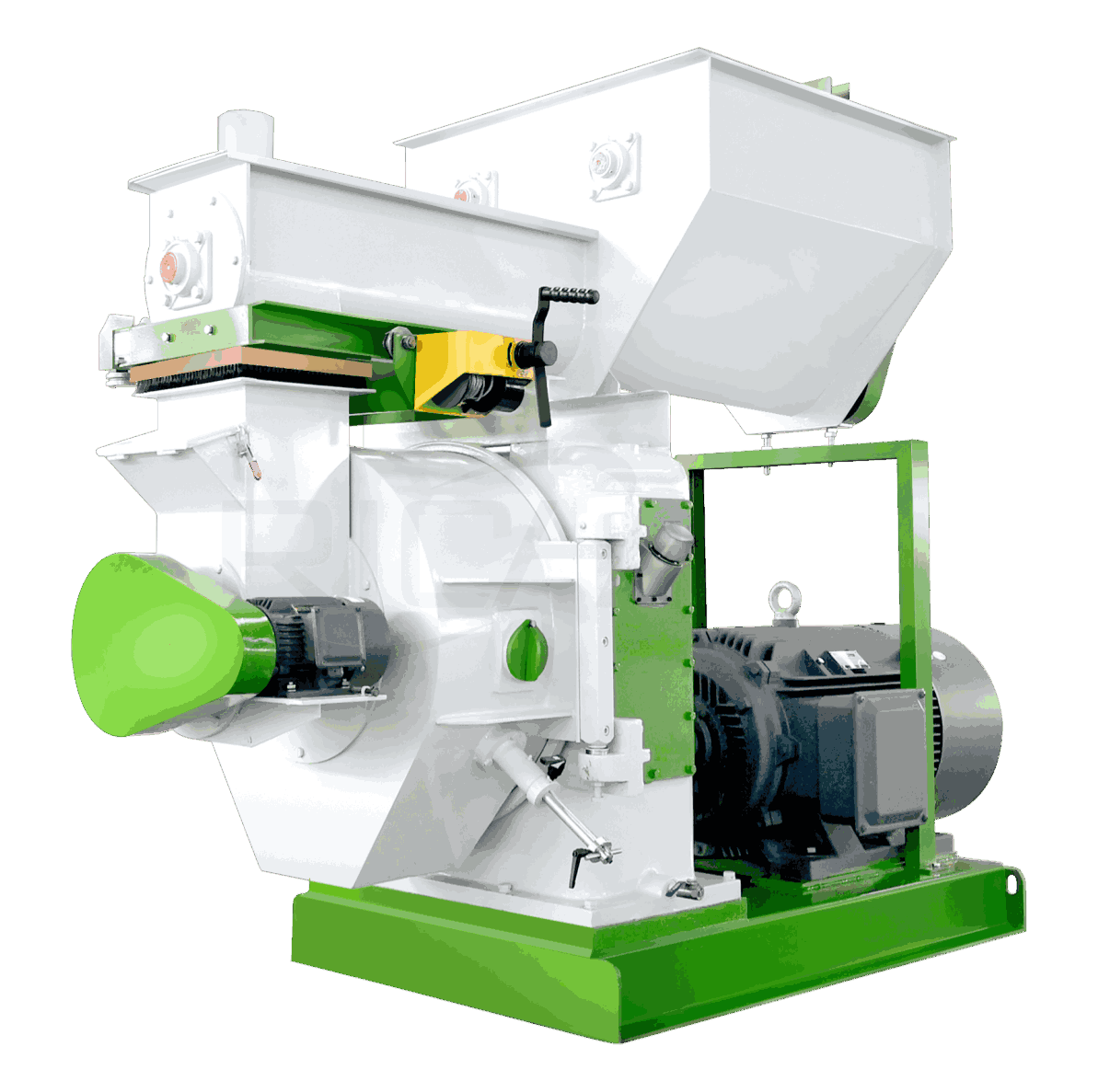

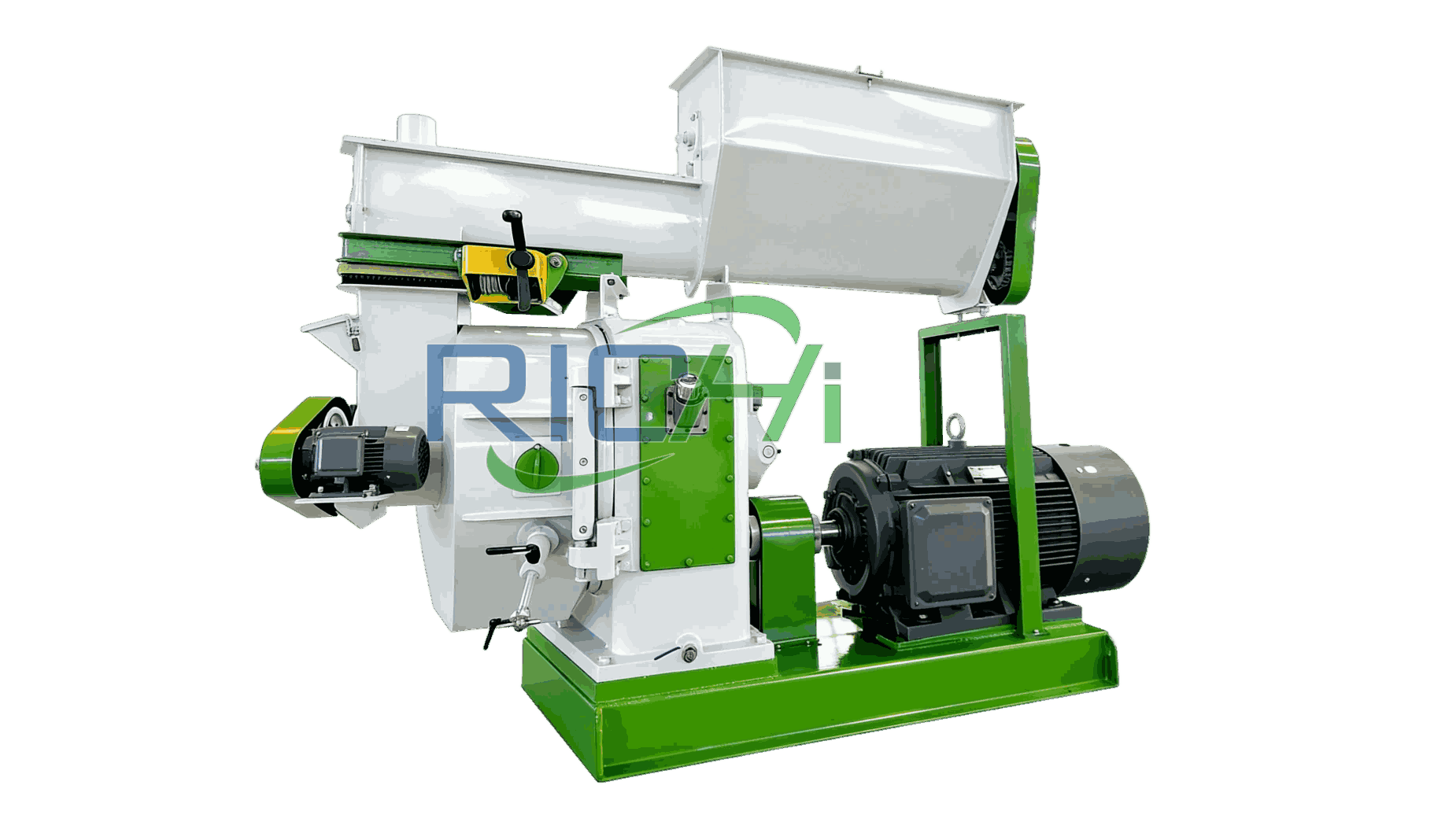

Wood Chip Pellet Mill
Wood chip pellet mill is a typical biomass energy equipment. It can pelletize various waste wood materials, transforming them into high-quality clean fuel. We offer multiple models of wood pelletizers for your selection. For your production needs, we also provide customized pellet mill and production line solutions.
Working Principle
This wood pellet machine maker features an innovative structural design, delivering highly efficient and energy-saving production results. Whether processing wood chips, sawdust or complex mixed materials, it efficiently produces pellets that meet high-standard biomass fuel needs. Let’s get to know the main working principle of this device by watching the following video.
During this process, the wood chip pellet mill employs physical compression molding technology to complete the conversion through four key steps:
- Raw Material Crushing : Crushing raw materials into particles measuring 3-5 mm in size
- Moisture Adjustment : Controlling raw material moisture content within the optimal range of 13-18%
- High Temperature Compression : Forcing wood fibers to naturally bond through high-temperature, high-pressure extrusion through molds
- Molding and Cooling : Cutting into shape followed by cooling to improve pellet durability
Model Specifications for wood chip pellet mill
The following are the specifications for the ring die biomass pellet mill. Beyond these basic parameters, we can also provide customized solutions. If you require a suitable model, please feel free to contact us with your production needs. We will offer you the optimal solution options.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Main Motor Power(kw) | 22 | 37 | 90 | 132 | 185 | 250 |
| Feeding Device Power (kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Ring Mold Inner Diameter (mm） | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished Pellet Diameter (mm) | 4~12 | |||||
| Capacity (T/H） | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
wood chip pellet mill Cases
The wood pellet equipment has exported to high-end markets including the Middle East, South America, Africa, Southeast Asia, and Europe, and several regions. Now we have successfully assisted over 300 enterprises in achieving resource utilization of wood waste, processing more than 1 million tons of waste in total and generating hundreds of millions of yuan in additional revenue for our clients.
Wood Pellet Press mill for sale in Romanian
- Time: 2022
- Region: Europe
- Output: 5 T/H
- Background: Specializing in solid wood furniture, the facility generates 50 tons of wood waste daily. High disposal costs and significant environmental pressure need a solution.
Romania has a wide range of forest areas, and wood chips generated during wood processing can be transformed into high-quality raw materials for biomass fuel through our technology. When this Romanian client chose RICHI, we responded promptly. We provided a complete solution—from equipment manufacture to the layout, and from installation and test to after-sales service, which fully supported the client’s path to success.
wood chip pellet machine for sale in Vietnam
- Time: 2023
- Region: Southeast Asia
- Output: 2 T/H
- Background: Daily generation of over 20 tons of wood waste such as sawdust. Site constraints limit space, with waste piles occupying large areas.
The customer clearly requested that only 100% wood chips be used as raw material. Therefore, this production line includes four key systems: pretreatment, cooling, sieving, and pelletizing. It is equipped with the sawdust flash dryer, the sieving machine, the sawdust pellet mill, the wood pellet cooler, and the packaging machine, which can meet the entire production requirements.

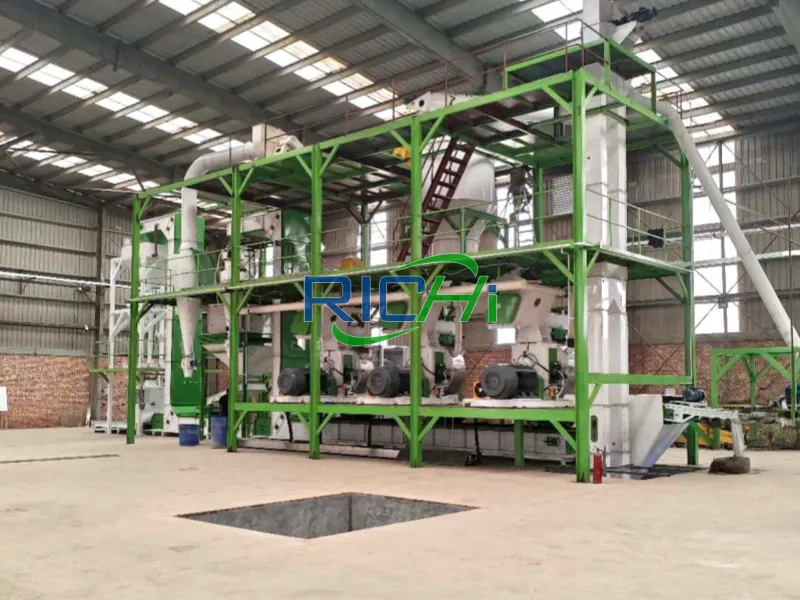

Wood Pellet mill for sale in Slovak
- Time: 2024
- Region: Europe
- Output: 10 T/H
- Background: Wood utilization rate is only 65% with large quantities of high-quality scrap wood for disposal.
Slovakia is a country in central Europe, with its land approximately 40% covered by forests. Wood-processing industry there share a relatively big market. After wood processing, there are abundant sawdust residues, which can be re-processed and made into biomass pellet. With our wood chip pellet machine installed in Slovakia, wood sawdust can be made into pellet locally, which features economic benefit, social benefit and ecological benefit.
The above case studies clearly demonstrate that wood pelletizers are not only waste disposal equipment, but also vital tools for enterprises to upgrade their operations and enhance competitiveness. Whether you are a wood processing company or a furniture manufacturer, we can provide the most suitable solutions to help you achieve a double win in both economic and environmental benefits!
Core Advantage of wood chip pellet mill
This equipment offers multiple advantages and delivers superior production performance. It features a horizontally arranged ring die structure, delivering stable output, high automation, and extended service life, which is the best choice for commercial biomass pellet factories.
High Output And Low Energy Consumption
Wide Range of Applications
Our equipment has been successfully deployed across diverse sectors including wood processing, renewable energy, residential and industrial heating, and agriculture. Regardless of your industry, whenever biomass material processing is involved, we deliver the most suitable solutions.
Efficiency and Environmental Protection
This wood pellet machine employs advanced pelleting technology to efficiently convert crushed wood materials into dense wood pellets, which becomes a clean energy source, significantly improving energy utilization. Furthermore, the raw materials for the final pellets come from natural wood waste such as wood shavings and branches. These materials inherently contain no harmful elements like sulfur or phosphorus, and no chemical additives are required during the wood pellet production process.
Stable Performance
The machine pellet wood employs variable-frequency feeding to effectively prevent uneven feeding caused by voltage fluctuations. Equipped with a high-performance Siemens motor and an advanced control system, it ensures long-term stable and reliable operation with minimal downtime.
Automatic Control
The pellet mill is equipped with a one-button start/stop design, and its advanced automatic control system makes operation more convenient and straightforward. It also features a visual interface that displays real-time equipment status, which allows operators to easily monitor the production process and adjust operating parameters to ensure efficient production operations.
Customized Solutions
Our professional engineers can provide granulation solutions based on your specific requirements—such as budget, raw materials, factory layout, and production needs. You can adjust production capacity and speed according to your operational demands.
RICHI MACHINERY
Price for wood chip pellet mill
The price of a commercial wood pellet mill is not fixed. It depends on factors such as production capacity, the raw material type and the automation level. Generally, prices fall within the range of $10,000 to $100,000. The reference price ranges below include only the price per unit for different models. For an accurate quote, we offer a free consultation service.
Small-scale equipment
(Suitable for Individual Entrepreneurs/Small Scale Production)
- Production Capacity: 300 -700 kg/h
- Price Range: ¥10,000 – ¥30,000
- Features: Simple operation, compact footprint
Mid-scale Equipment
(Suitable for Small and Medium Enterprises)
- Production Capacity: 1-2.5 T/H
- Price Range: ¥30,000 – ¥60,000
- Features: High automation, stable output, fast return on investment
Large-scale Equipment
(Suitable for Mass Production)
- Production Capacity: 2.5 – 4.5 T/H
- Price Range: ¥60,000 – ¥100,000
- Features: Fully automated control, high output, low operating costs
RICHI MACHINERY
Core Components Display
In addition to its overall structural advantages, the components of this wood pellet press machine also feature innovative designs. We design each unit with high quality materials, such as stainless steel construction, Siemens motors, and SKF bearings, which ensures the wood pelletizer’s high efficiency, stability, and excellent results.
Ring Die
The ring die is made from high-quality alloy steel through precision machining. Their aperture ratio is scientifically calculated to maximize output per unit. The surface undergoes carburizing heat treatment, delivering exceptional wear resistance. We can provide ring dies with various aperture sizes to achieve multiple pellet diameters.

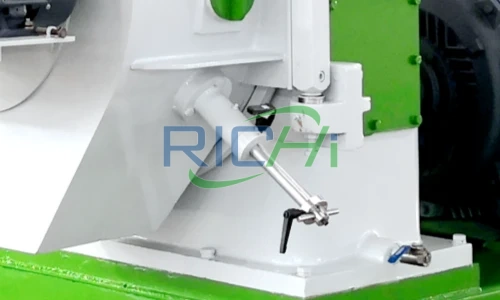

Cutting Device
This wood chip pellet mill features a single cutting device that can produce longer, more durable fuel pellets. Located inside the discharge chute, the cutting device cuts the pellets as they are extruded through the die holes. Operators can adjust the distance between the cutter and the ring die to control pellet length.

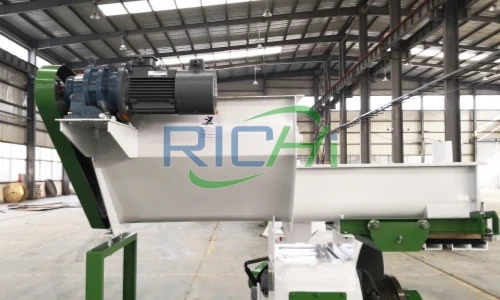

Arch-Breaking Feeder
To accommodate the lightweight nature of wood chip material, we have specifically designed an arch-breaking feeding device. Its interior features two sets of spiral feed blades, paired with a dedicated motor. This device prevents lightweight materials from accumulating at the feed inlet, ensuring smooth feeding.
Control System
The electronic control system monitors and adjusts equipment operating parameters, including feed rate, pelleting chamber temperature and pelleting device operation. Operators can utilize the automated control system to make adjustments in time, in order to adapt to different raw materials and production requirements.
Full-Process Wood Pellet Production Line
We also provide complete wood pellet production line equipment. With scientifically divided production stages, it enables highly efficient wood pellet manufacturing. There is no fixed standard for the production process flow. The production techniques, equipment configuration and manufacturing technology can all be customized to meet your specific needs. We can also offer turnkey solutions for wood pellet plant, helping you to start production quickly and easily.

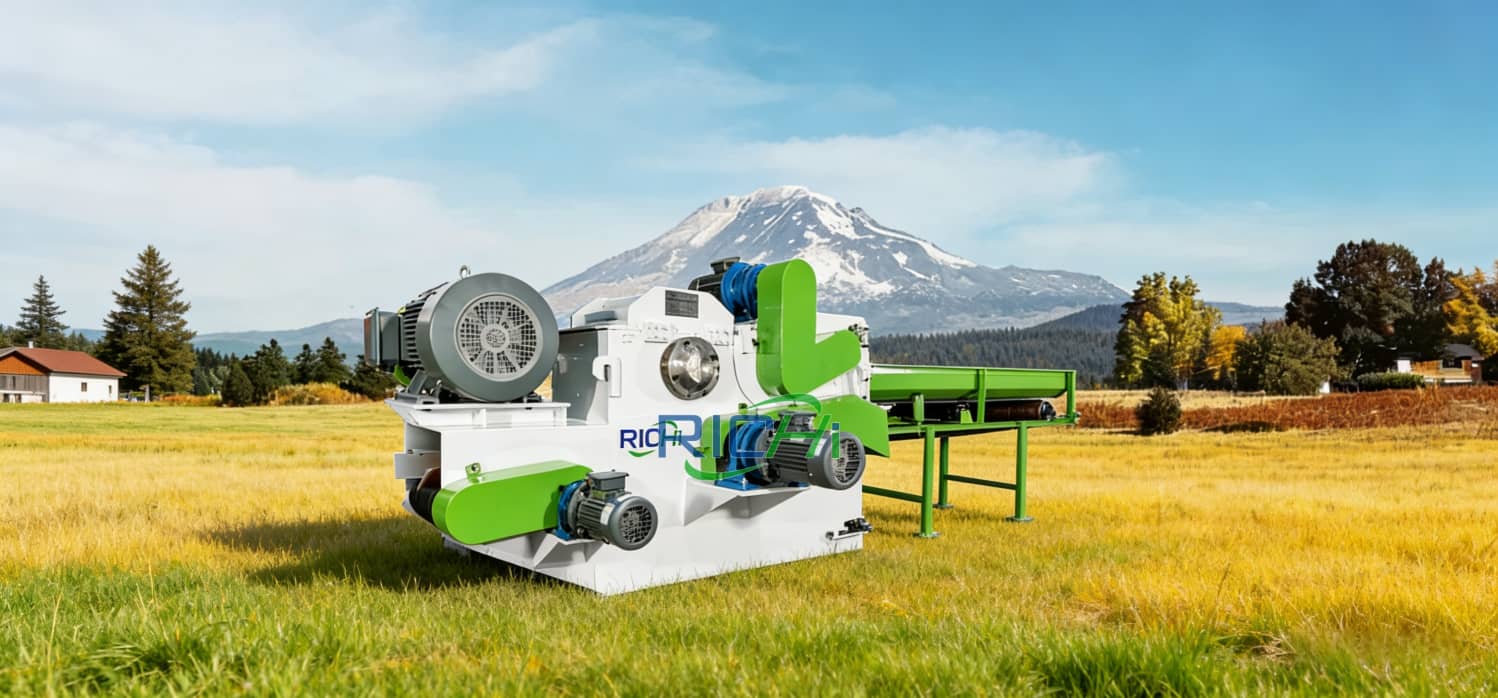

wood chipping
First of all, the logs enter the chipper through the conveying equipment, the chipper can cut the logs to 20-40 mm thin wood chips, which is convenient for the subsequent crushing process, and also beneficial to the drying of raw materials.

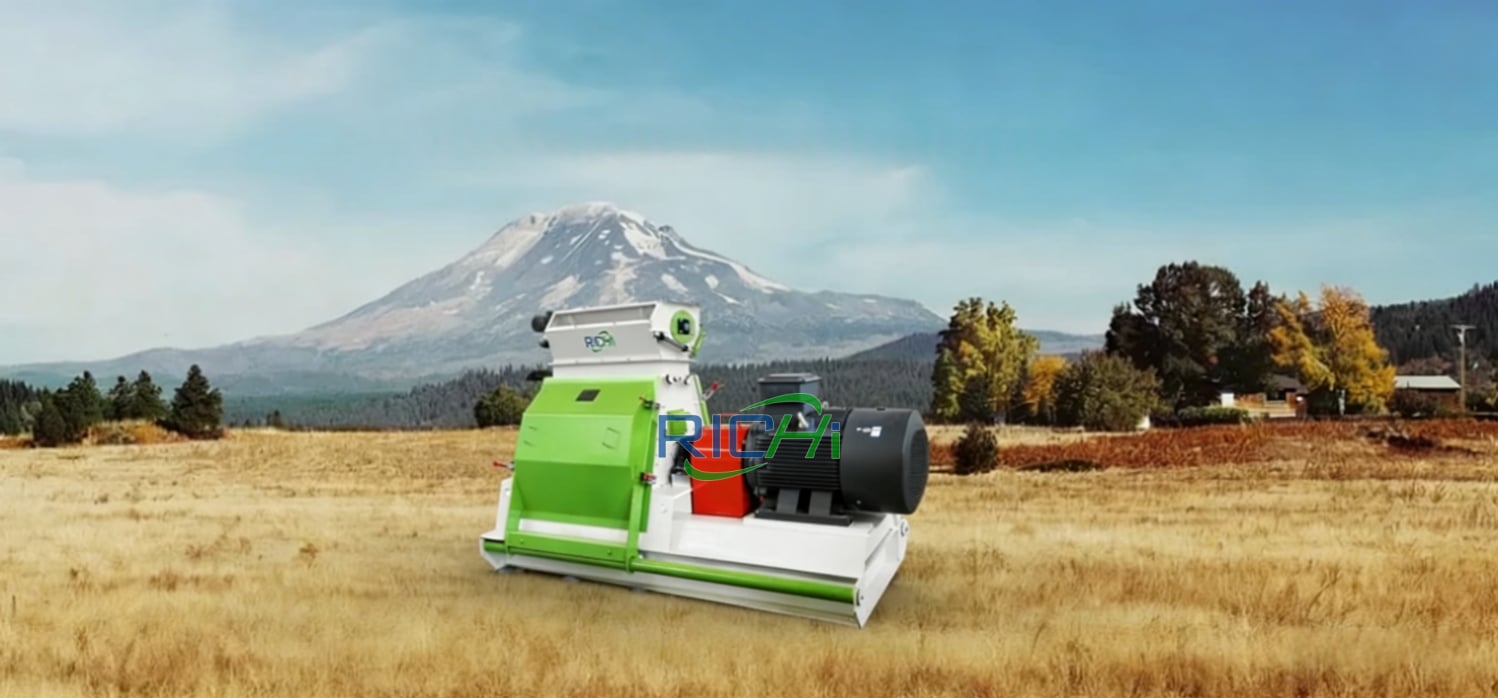

wood crushing
This step is fundamental to ensuring effective pellet formation. For different types of raw materials, the equipment is provided with different specialized crushing devices. Finally, all raw materials are transformed into powdered material with a particle size of 3-5 mm.

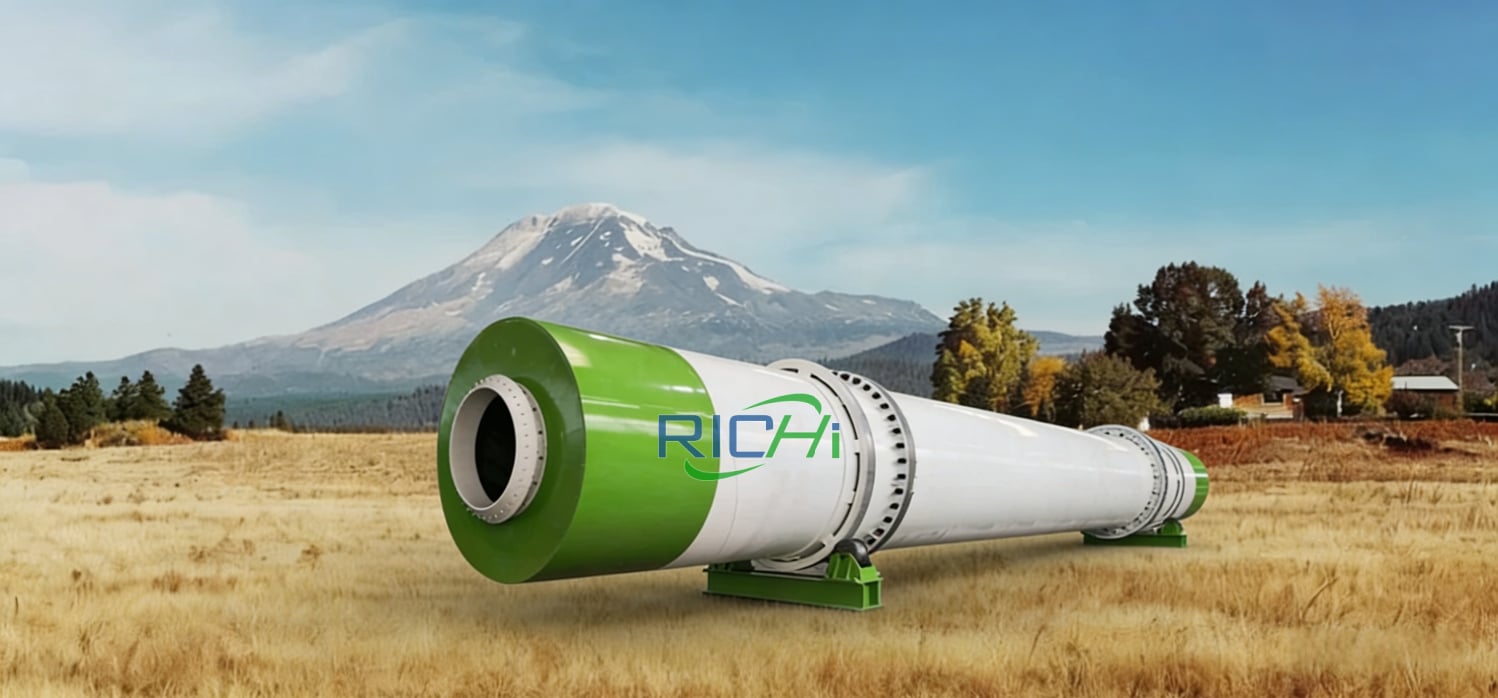

wood drying
Wood waste often contains high moisture levels. Excessive moisture not only hinders the formation of wood pellets during production, but also causes the final product to mold and deteriorate during storage. The drying system of the machine will rapidly reduce raw material moisture to approximately 15% through precise temperature control.
wood pelletizing
We offer wood chip pellet mill for sale with different pellet specifications according to various situations, usually ranging from 2 to 12 mm in size. In the pelletizing section, the wood chips enter the wood pellet press through the feeder and are converted into wood pellets under the extrusion of the pressure rollers and the ring die.

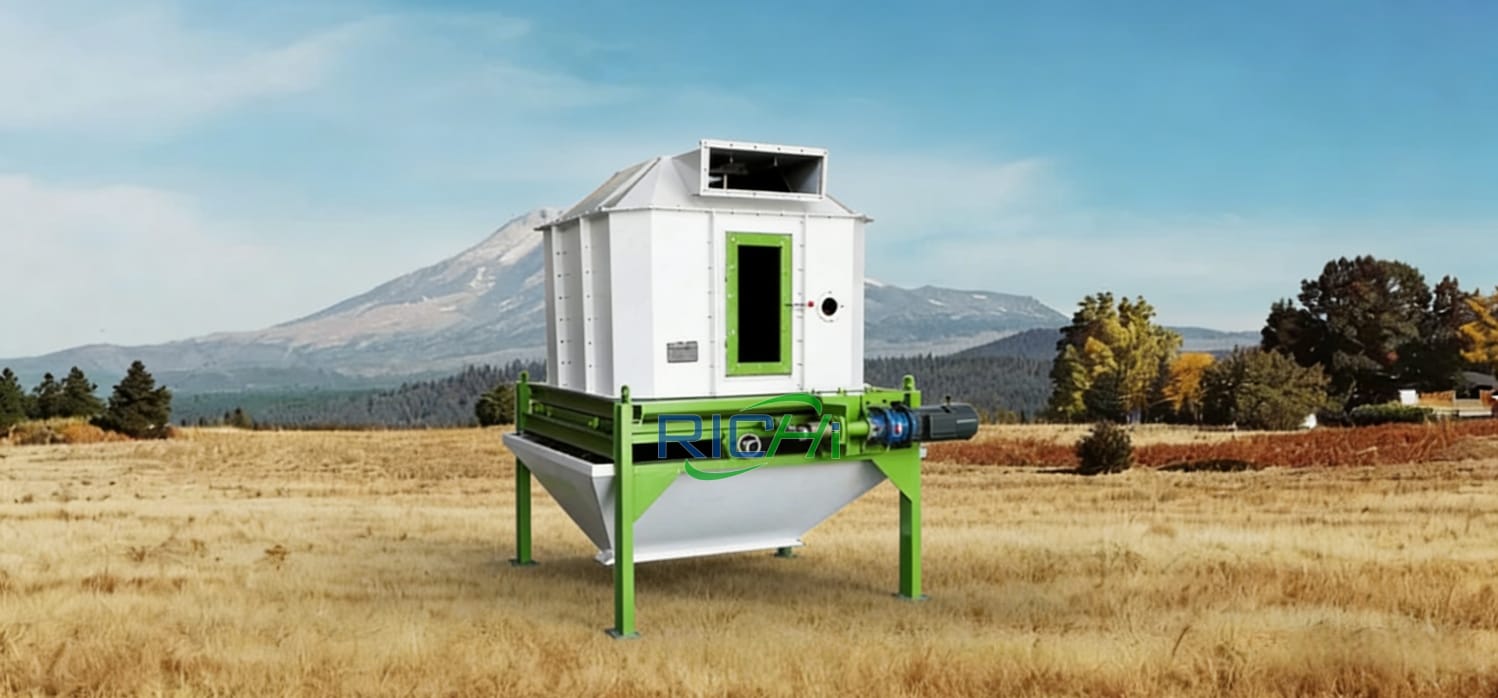

pellet cooling and screening
The freshly produced pellets are at a high temperature and will first pass through a cooling device to reduce their temperature to room temperature. They are then processed through a shaking machine to remove a small amount of dust and crumbs, which can produce the final pellets.

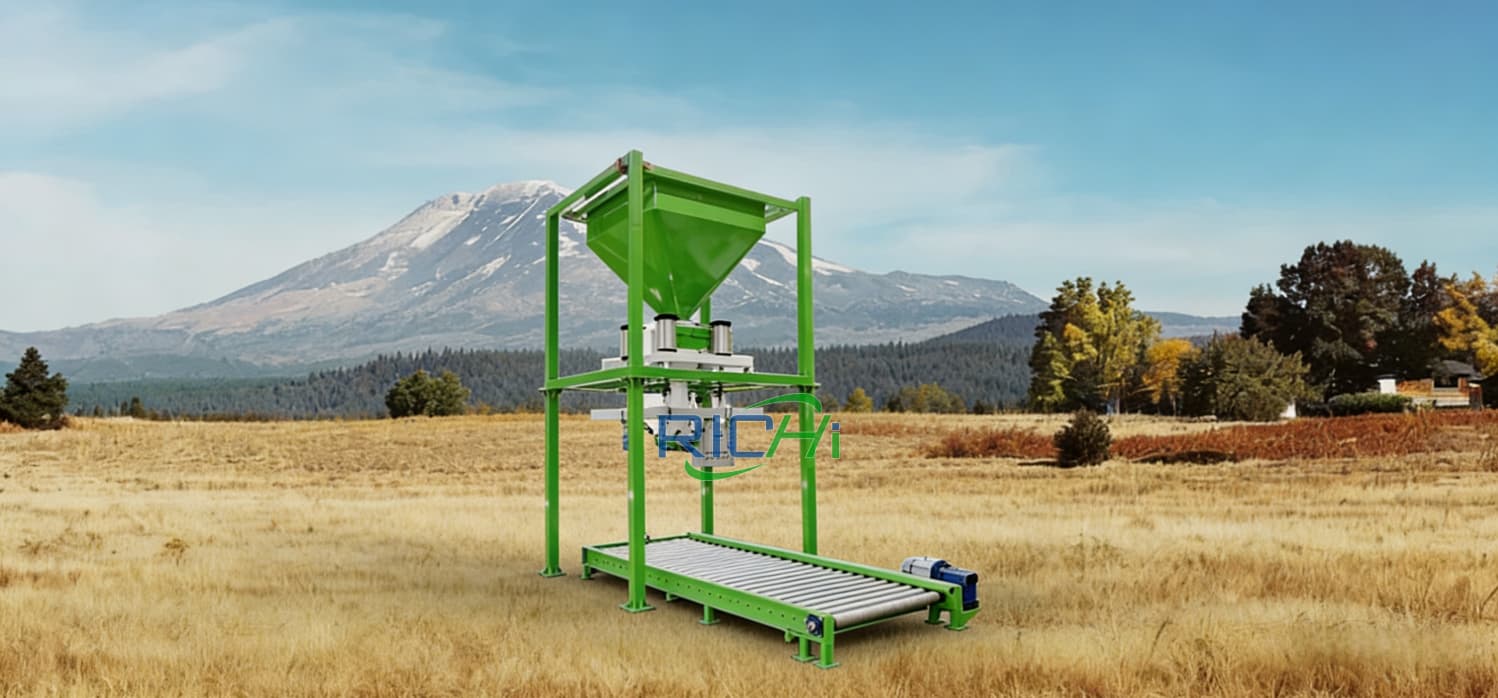

pellet packing
After cooling and screening, the wood pellets exhibit uniform specifications and dimensions. We have designed an automated pellet packaging scale for this stage, which enables standardized weighing and rapid packaging. This significantly reduces labor costs and pellet wastage.
Why Choose RICHI Machinery
Since 1995, RICHI Machinery has served thousands of customers across more than 150 countries and regions worldwide. Our wood chip pellet mill has exported to high-end markets including the Middle East, South America, Africa, Southeast Asia, and Europe, and have received numerous high praises.
Free Pre-Sales Consultation
Our professional sales team is available around the clock to provide equipment consultations. This includes model specifications, suitable applications, detailed quotations, and more. Please feel free to share your requirements at any time.
After-Sales Service
RICHI Machinery promise to provide one year of free service after sale. During this period, if the equipment malfunctions because of the quality or normal use, our after-sales team will give you technical advice within 30 minutes to respond.
Information Sharing
During the production process, we will provide you with timely updates on progress so that you can keep track of the production situation at all times. Once the feed pellet presses are finished, we’ll deliver them safely and punctually to your appointed place.
Frequently Asked Questions
Before investing in machinery, you may have concerns regarding specific models, production capacities, raw material processing, detailed quotations, and more. Below, we will address these questions in detail. For an accurate equipment quote, please provide your production requirements to receive the most precise response.
What types of biomass materials can the wood chip pellet mill pelletize?
+
Our pelletizer is an industrial-grade machine with high utilization rates. It can pelletize not only shredded wood materials like wood chips, sawdust, and shavings, but also process various high-fiber materials such as straw, grass, and other agricultural and forestry waste. Provided the raw materials are properly shredded and processed, this machine consistently delivers efficient and stable output.
Why choose a ring die wood pellet machine?
+
For large-scale wood pellet plants and biomass pellet manufacturers, selecting a ring die pelletizer significantly enhances return on investment. This is because ring die pelletizers deliver superior compression performance and greater pelletizing capacity. Additionally, their robust construction ensures reliable operation for sustained production.
What equipment is required for wood pellet production?
+
A complete wood pellet production line requires a raw material processing system, pelletizing, cooling, screening, and packaging stages. Among these, the raw material processing and pelletizing stages directly determine the material’s forming rate and the quality of the pellet fuel.
Our wood pellet press is an industrial-grade advanced machine with excellent pelletizing capability. Common wood processing systems include three components: chippers, shredders, and dryers. These ensure appropriate raw material size and moisture content, facilitating efficient pellet production.
Does this industrial wood pellet press machine have specific requirements for raw material moisture content?
+
This requirement is a fundamental condition for wood pellet production, encompassing appropriate moisture levels and particle size. Standard raw material should consist of sawdust-like particles within 3-5 mm. This size facilitates optimal compaction.
The ideal moisture content ranges from 15% to 18%. Wood materials exceeding this range exhibit reduced formation rates and compromise pellet quality. Therefore, proper raw material preparation is crucial.
How to choose the right wood chip pellet mill?
+
When selecting equipment, you need to consider factors such as raw material conditions, target production capacity, and pellet size. These should be evaluated in conjunction with your investment budget. For large-scale wood pellet plants, a complete production line setup is required. Therefore, automation levels and equipment configurations also need to be taken into account. If you require a tailored solution recommendation, please feel free to contact us.
